6

N

Electronic

Control

Unite

Figure 2: Electric Circuit Diagram

F: Phase

N: LED 1 (MIN MOD)

N1: LED 2 (ECO MOD)

N2: LED 3 (MAX MOD)

K: On - O + Mode

switch button

R: Resistance Heater

1. GENERAL OVERVIEW AND TECHNICAL FEATURES

IVIGO Electric Towel Warmer is

manufactured from superior

quality steel. The container of

this heater is lled with a precise

quantity of a special heat transfer

uid (A water pliance heats up

by heating the heat transfer uid

with an electrical resistance.

Your appliance provides many

advantages due to heating in a

very short time, taking small space

and lightness thereof.

1. Vertical Tube

2. Horizantal Tube

3. Heating Element

4. Control Panel

5. Cord with Plug

6. Blind Tap

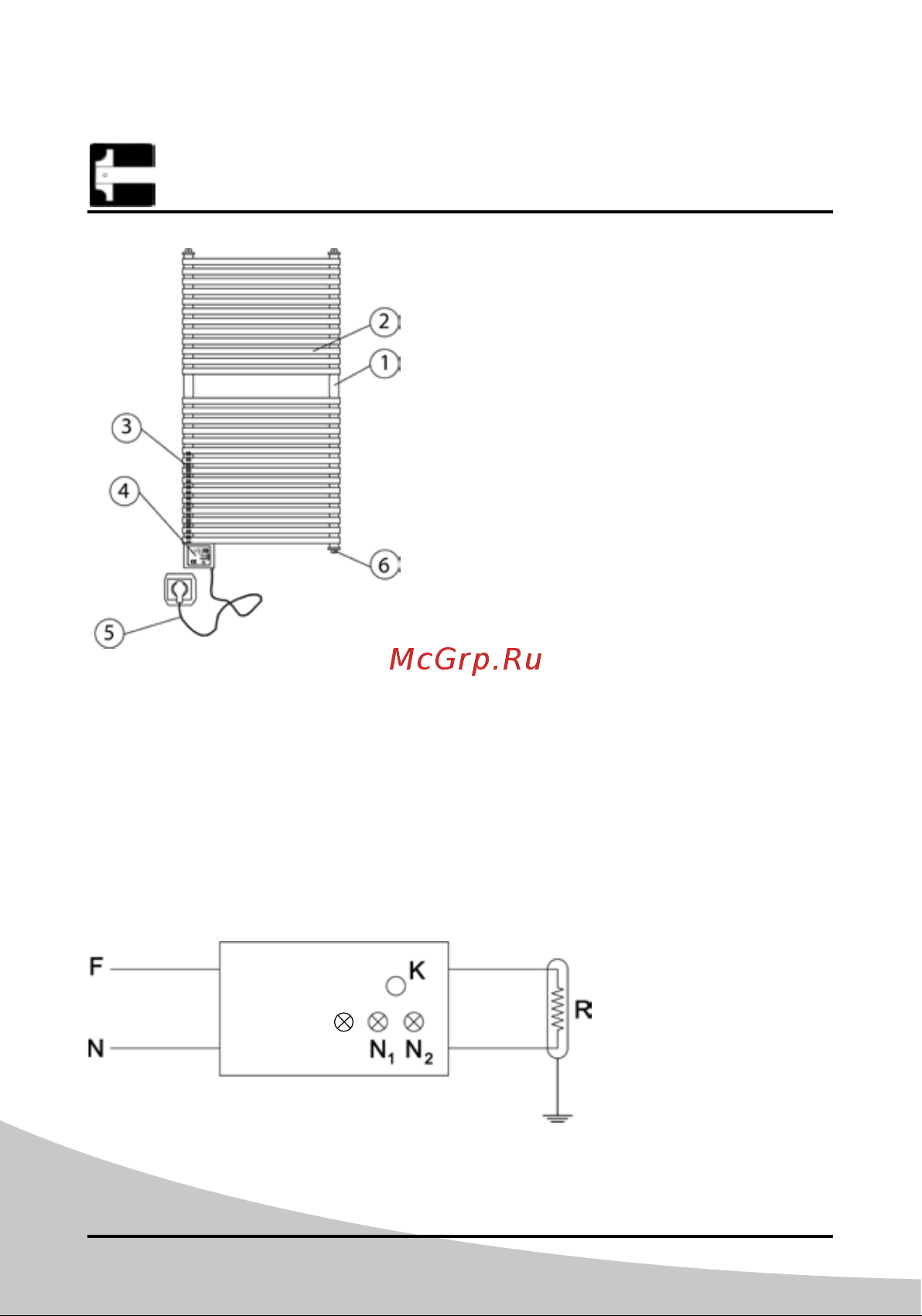

Figure 1. Full Image
