Zalman VF900-Cu LED [3/7] Exploded view
![Zalman VF900-Cu LED [3/7] Exploded view](/views2/1111065/page3/bg3.png)
※
The specifications of any product may change without prior notice to improve performance.
2

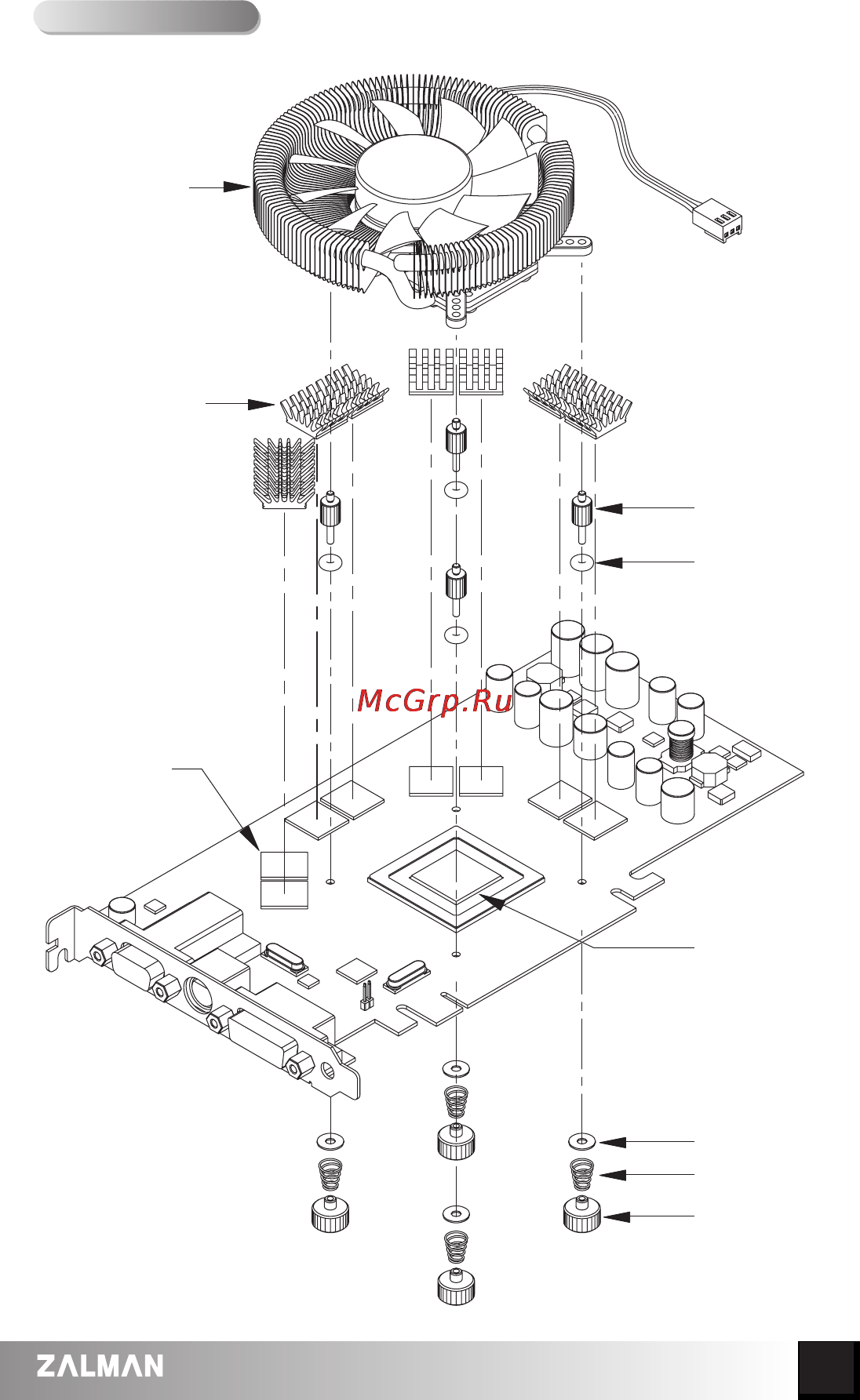

Exploded View
VGA Cooler
VGA RAM
RAM Heatsink
Nipple
Rubber Ring
VGA Chipset
PVC Washer
Spring
Fixing Nut
Содержание
- English version 1
- Http www zalman co kr http www zalmanusa com 1
- Model vf900 cu 1
- Ultra quiet heatpipe vga cooler 1
- Cautions on use and installation 2
- Components 2
- Disclaimer 2
- Product features 2
- Silent mode 2
- Specifications 2
- Vga cooler 2
- Exploded view 3
- Cooler s retention guide after determining the appropriate nipple installation holes 4
- Except 9550 9600 4
- Installation procedure 4
- Nipple installation holes for various vga cards 4
- Nipple installation holes vga card 4
- Note 1 if thermal grease or other residue remains on the ram the thermal tapes will not stick clean the surface of the ram with acetone or alcohol before attaching 4
- Note 3 4
- Note the nipples must be tightened by hand using tools to tighten the nipples may damage the tips of the nipples please check the table below to identify the correct nipple installation holes for specific models of vga cards 4
- The following installation sequence must be followed 4
- Thermal grease application clean the contact surface of the vga chipset completely apply thermal grease on the vga chipset that makes contact with the base of the vga cooler 4
- Thermal tapes are not reusable because they lose adhesiveness after their initial attachment purchase new thermal tapes if you need to reattach the ram heatsinks 4
- Vga ram heatsink attachment remove the film from the thermal tapes on the bottom of the ram heatsinks and attach the heatsinks on the vga ram 4
- Vga ram heatsink attachment thermal grease application nipple installation on the retention guide vga cooler installation spring insertion on the fixing nut fixing nut assembly on vga cooler s nipple vga card installation fan power cable connection 4
- Hd 160 7
- Home theater pc enclosures 7
- Tnn 300 tnn 500 af 7
- Tnn totally no noise computer enclosures 7
- Zalman computer noise prevention systems 7
