4-4 Onyx Setup

NOTE!

• Connect to the micro USB connector before starting Onyx Setup.

Onyx 2.0 shipped with the default conguration: Ethernet 2x50Gbps, PCIe 2x8.

While customers can change the settings as required, we changed the settings to be Ethernet 1x100Gbps,

and set the IP address to be 3.3.3.1/24.

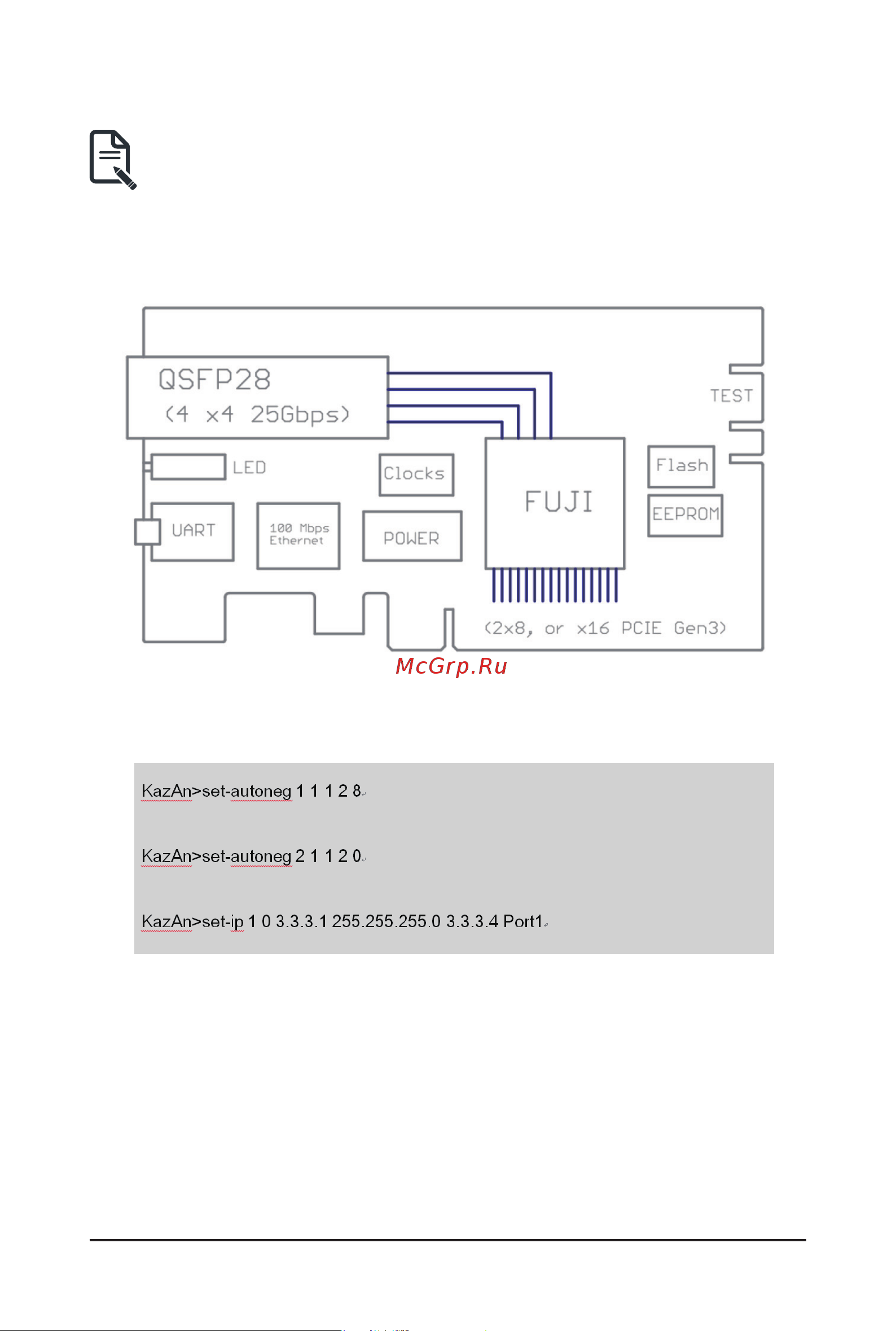

set-autoneg 1 1 1 2 8; set-autoneg 2 1 1 2 0

Congure the Ethernet to be 100G RS FEC, here is a high-level description of these parameters:

set-autoneg <Port> <TX> <RX> <FEC> <TECH>

<Port> Set to 1 for Ethernet Port #1 and 2 for Ethernet Port #2

<TX> Set to 1 (enables TX Pause Flow Control)

<RX> Set to 1 (enables RX Pause Flow Control)

<FEC> Set to 1 for FC FEC and 2 for RS FEC (100G speed requires RS FRC to be enabled)

<TECH> Selects Ethernet speed (set to 4 for 50G, 8 for 100G. When configured for 100G, TECH

parameter for Ethernet Port #2 must be set to 0 to disable the Port since Fuji supports a single 100G port)
