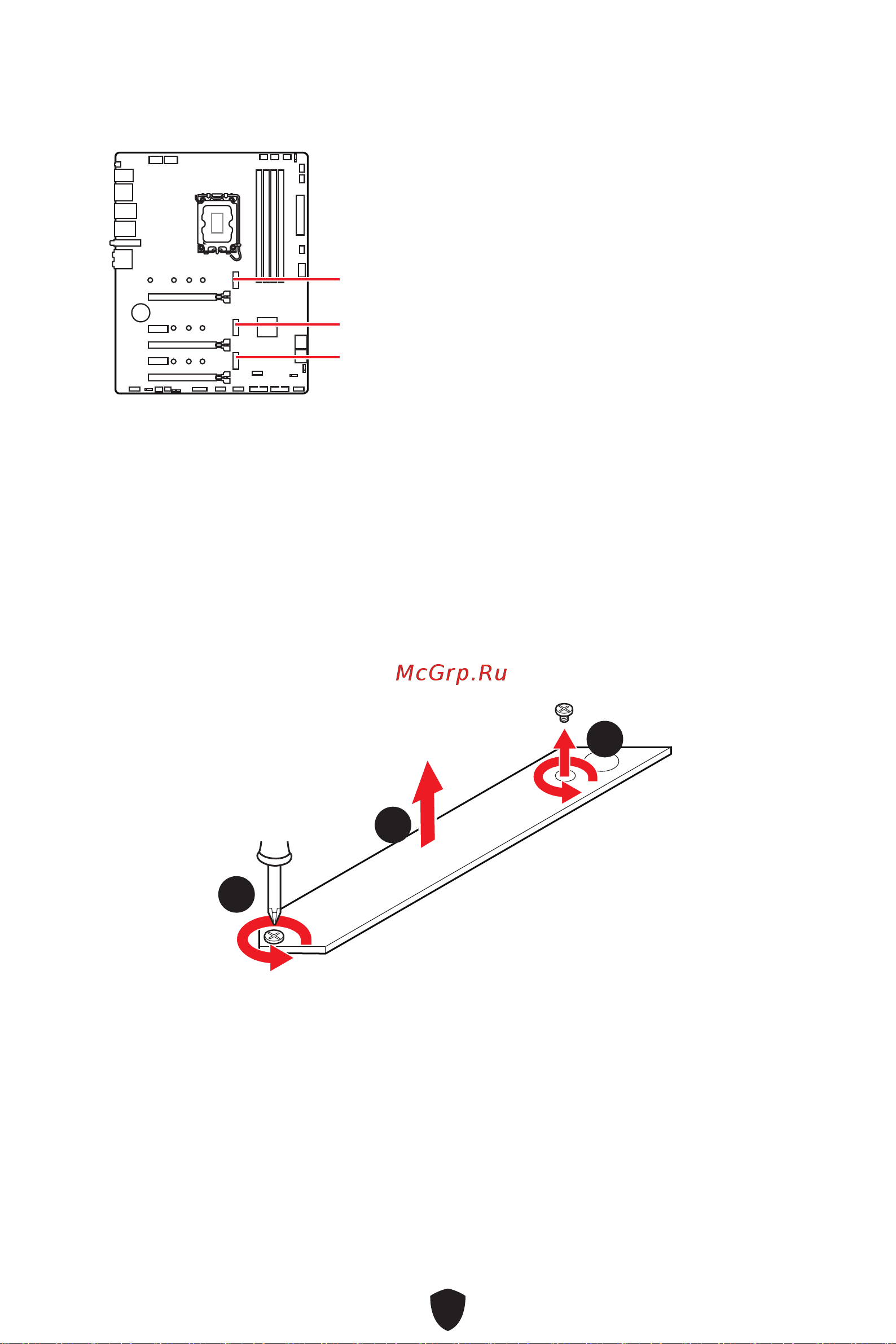

M2_1~3: M.2 Slots (Key M)

M2_1

M2_2

M2_3

⚠

Important

∙

Intel® RST only supports PCIe M.2 SSD with UEFI ROM.

∙

If your M.2 SSD equips its own heatsink, please remove the M.2 plate or rubber cube

in the M.2 slot before installing M.2 SSD. Do not re-install the heatsink supplied with

your motherboard.

Installing M.2 module into M2_1 slot

1. Loosen the screws of M.2 Shield Frozr heatsink.

2. Lift up the M.2 Shield Frozr heatsink and remove it.
