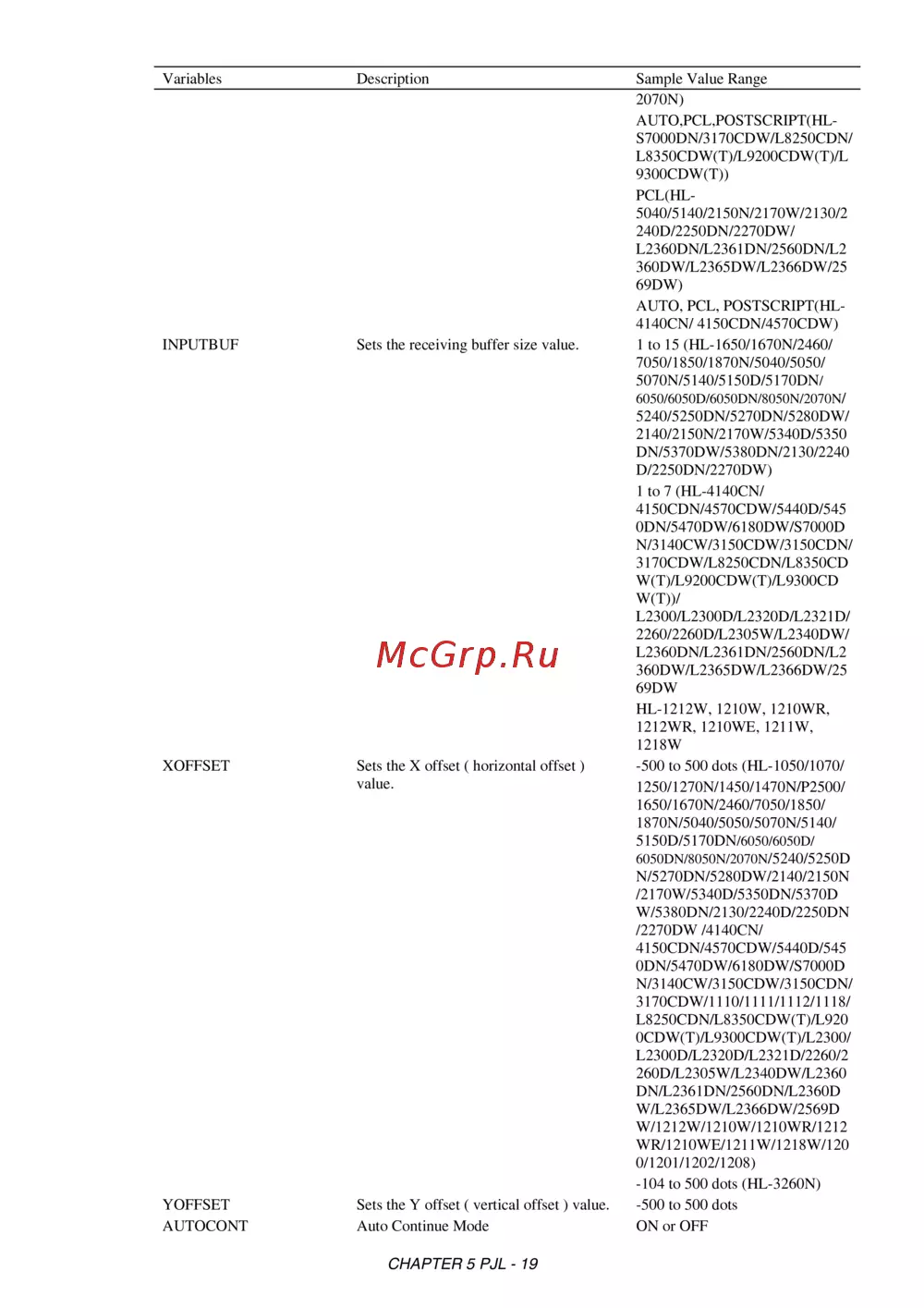

CHAPTER 5 PJL - 19
Variables Description Sample Value Range
2070N)
AUTO,PCL,POSTSCRIPT(HL-
S7000DN/3170CDW/L8250CDN/
L8350CDW(T)/L9200CDW(T)/L
9300CDW(T))
PCL(HL-
5040/5140/2150N/2170W/2130/2
240D/2250DN/2270DW/
L2360DN/L2361DN/2560DN/L2
360DW/L2365DW/L2366DW/25
69DW)
AUTO, PCL, POSTSCRIPT(HL-
4140CN/ 4150CDN/4570CDW)
INPUTBUF Sets the receiving buffer size value. 1 to 15 (HL-1650/1670N/2460/
7050/1850/1870N/5040/5050/
5070N/5140/5150D/5170DN
/
6050/6050D/6050DN/8050N/2070N/
5240/5250DN/5270DN/5280DW/
2140/2150N/2170W/5340D/5350
DN/5370DW/5380DN/2130/2240
D/2250DN/2270DW)
1 to 7 (HL-4140CN/
4150CDN/4570CDW/5440D/545
0DN/5470DW/6180DW/S7000D
N/3140CW/3150CDW/3150CDN/
3170CDW/L8250CDN/L8350CD
W(T)/L9200CDW(T)/L9300CD
W(T))/
L2300/L2300D/L2320D/L2321D/
2260/2260D/L2305W/L2340DW/
L2360DN/L2361DN/2560DN/L2
360DW/L2365DW/L2366DW/25
69DW
HL-1212W, 1210W, 1210WR,
1212WR, 1210WE, 1211W,
1218W
XOFFSET Sets the X offset ( horizontal offset )
value.
-500 to 500 dots (HL-1050/1070/
1250/1270N/1450/1470N/P2500/
1650/1670N/2460/7050/1850/
1870N/5040/5050/5070N/5140/
5150D/5170DN
/6050/6050D/
6050DN/8050N/2070N
/5240/5250D
N/5270DN/5280DW/2140/2150N
/2170W/5340D/5350DN/5370D
W/5380DN/2130/2240D/2250DN
/2270DW /4140CN/
4150CDN/4570CDW/5440D/545
0DN/5470DW/6180DW/S7000D
N/3140CW/3150CDW/3150CDN/
3170CDW/1110/1111/1112/1118/
L8250CDN/L8350CDW(T)/L920
0CDW(T)/L9300CDW(T)/L2300/
L2300D/L2320D/L2321D/2260/2
260D/L2305W/L2340DW/L2360
DN/L2361DN/2560DN/L2360D
W/L2365DW/L2366DW/2569D
W/1212W/1210W/1210WR/1212
WR/1210WE/1211W/1218W/120
0/1201/1202/1208)
-104 to 500 dots (HL-3260N)
YOFFSET Sets the Y offset ( vertical offset ) value. -500 to 500 dots
AUTOCONT Auto Continue Mode ON or OFF
