ASUS A88X-GAMER
2-37
2.8.10 Boot Option Priorities
These items specify the boot device priority sequence from the available devices. The
number of device items that appears on the screen depends on the number of devices
installed in the system.
• To select the boot device during system startup, press <F8> when ASUS Logo
appears.
• To access Windows OS in Safe Mode, press <F8> after POST.
2.8.11 Boot Override
These items displays the available devices. The number of device items that appears on
the screen depends on the number of devices installed in the system. Click an item to start
booting from the selected device.

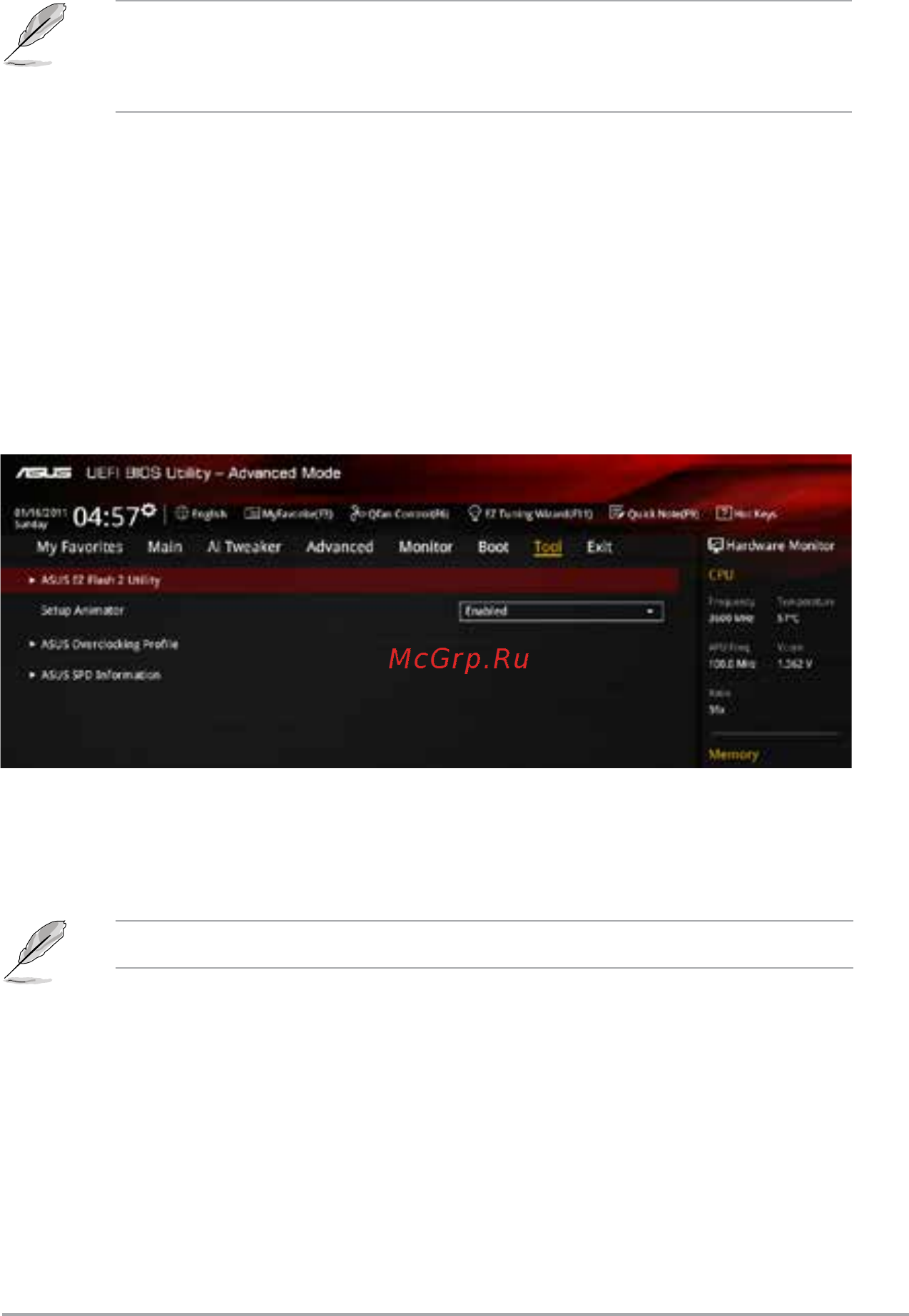

2.9 Tool menu
The Tools menu items allow you to congure options for special functions. Select an item
then press <Enter> to display the submenu.
2.9.1 ASUS EZ Flash 2 Utility
Allows you to run ASUS EZ Flash 2. Press [Enter] to launch the ASUS EZ Flash 2 screen.
For more details, see section 2.1.2 ASUS EZ Flash 2.
2.9.2 Setup Animator [Enabled]
Enables or disables the Setup animator. Conguration options: [Disabled] [Enabled]
