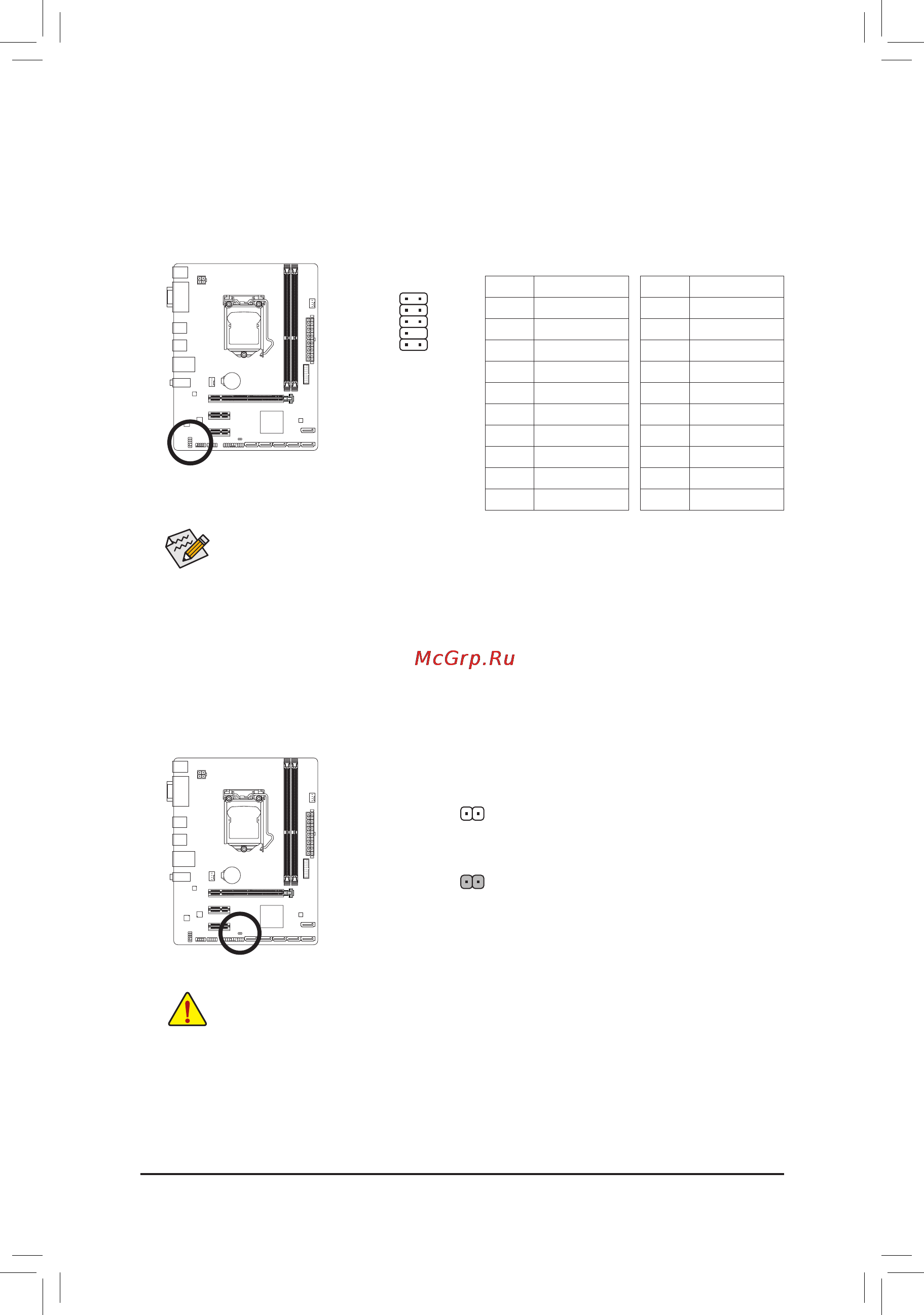

9) F_AUDIO (Front Panel Audio Header)

 ThefrontpanelaudioheadersupportsIntelHighDenitionaudio(HD)andAC'97audio.Youmayconnect

your chassis front panel audio module to this header. Make sure the wire assignments of the module con-

nector match the pin assignments of the motherboard header. Incorrect connection between the module

connector and the motherboard header will make the device unable to work or even damage it.

• The front panel audio header supports HD audio by default.

• Audio signals will be present on both of the front and back panel audio connections simultaneously.

• Some chassis provide a front panel audio module that has separated connectors on each wire

instead of a single plug. For information about connecting the front panel audio module that has

different wire assignments, please contact the chassis manufacturer.

For HD Front Panel Audio: For AC'97 Front Panel Audio:

Pin No. Denition

1 MIC2_L

2 GND

3 MIC2_R

4 -ACZ_DET

5 LINE2_R

6 GND

7 FAUDIO_JD

8 No Pin

9 LINE2_L

10 GND

Pin No. Denition

1 MIC

2 GND

3 MIC Power

4 NC

5 Line Out (R)

6 NC

7 NC

8 No Pin

9 Line Out (L)

10 NC

10) CLR_CMOS (Clear CMOS Jumper)

 UsethisjumpertocleartheCMOSvalues(e.g.dateinformationandBIOScongurations)andresetthe

CMOSvaluestofactorydefaults.TocleartheCMOSvalues,useametalobjectlikeascrewdrivertotouch

the two pins for a few seconds.

• Always turn off your computer and unplug the power cord from the power outlet before clearing

the CMOS values.

• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or

manuallyconguretheBIOSsettings(refertoChapter2,"BIOSSetup,"forBIOScongurations).

Open: Normal

Short: Clear CMOS Values
