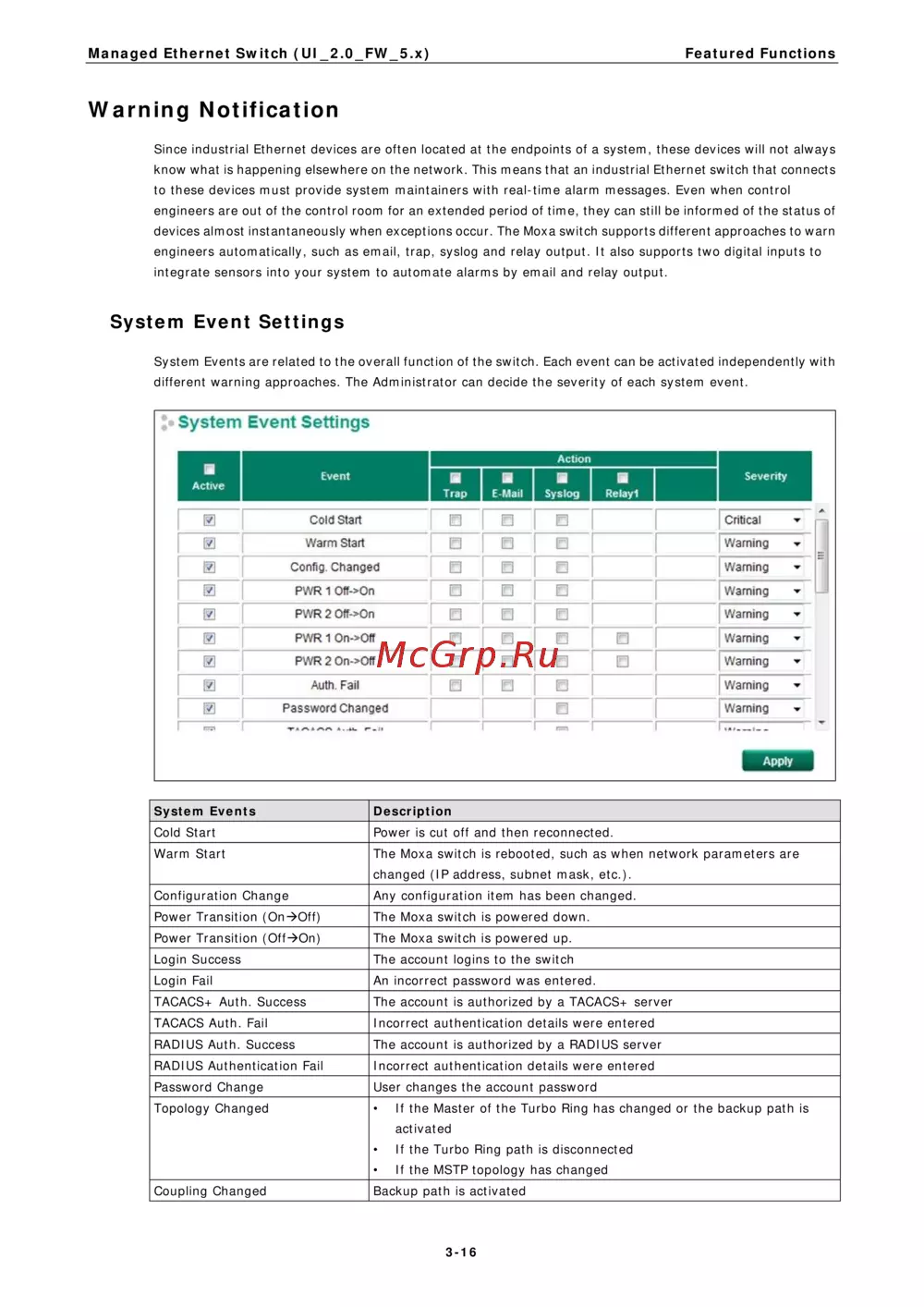

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-16
Warning Notification
Since industrial Ethernet devices are often located at the endpoints of a system, these devices will not always
know what is happening elsewhere on the network. This means that an industrial Ethernet switch that connects
to these devices must provide system maintainers with real-time alarm messages. Even when control
engineers are out of the control room for an extended period of time, they can still be informed of the status of
devices almost instantaneously when exceptions occur. The Moxa switch supports different approaches to warn
engineers automatically, such as email, trap, syslog and relay output. It also supports two digital inputs to
integrate sensors into your system to automate alarms by email and relay output.
System Event Settings
System Events are related to the overall function of the switch. Each event can be activated independently with
different warning approaches. The Administrator can decide the severity of each system event.
System Events Description
Cold Start Power is cut off and then reconnected.
Warm Start The Moxa switch is rebooted, such as when network parameters are
changed (IP address, subnet mask, etc.).
Configuration Change Any configuration item has been changed.
Power Transition (OnOff) The Moxa switch is powered down.
Power Transition (OffOn) The Moxa switch is powered up.
Login Success The account logins to the switch
Login Fail An incorrect password was entered.
TACACS+ Auth. Success The account is authorized by a TACACS+ server
TACACS Auth. Fail Incorrect authentication details were entered
RADIUS Auth. Success The account is authorized by a RADIUS server
RADIUS Authentication Fail Incorrect authentication details were entered
Password Change User changes the account password
Topology Changed • If the Master of the Turbo Ring has changed or the backup path is
activated
• If the Turbo Ring path is disconnected
• If the MSTP topology has changed
Coupling Changed Backup path is activated
