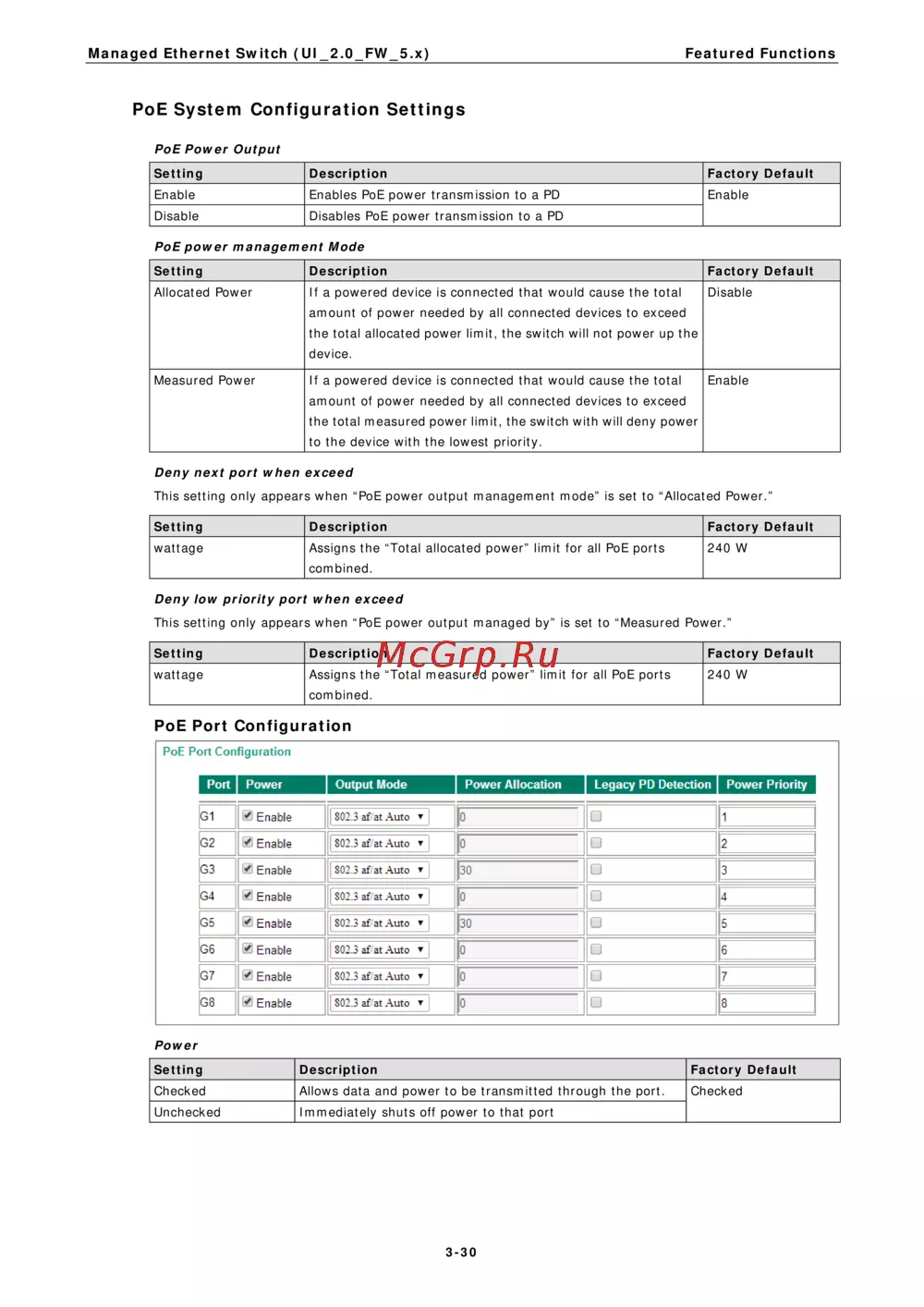

Moxa EDS-G516E-4GSFP [43/116] Poe system configuration settings
![Moxa EDS-G516E-4GSFP [43/116] Poe system configuration settings](/views2/1195651/page43/bg2b.png)
Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-30
PoE System Configuration Settings
PoE Power Output
Setting Description Factory Default
Enable Enables PoE power transmission to a PD Enable
Disable Disables PoE power transmission to a PD
PoE power management Mode
Setting Description Factory Default
Allocated Power If a powered device is connected that would cause the total
amount of power needed by all connected devices to exceed
the total allocated power limit, the switch will not power up the
device.
Disable
Measured Power If a powered device is connected that would cause the total
amount of power needed by all connected devices to exceed
the total measured power limit, the switch with will deny power
to the device with the lowest priority.
Enable
Deny next port when exceed
This setting only appears when “PoE power output management mode” is set to “Allocated Power.”
Setting Description Factory Default
wattage Assigns the “Total allocated power” limit for all PoE ports
combined.
240 W
Deny low priority port when exceed
This setting only appears when “PoE power output managed by” is set to “Measured Power.”
Setting Description Factory Default
wattage Assigns the “Total measured power” limit for all PoE ports
combined.
240 W
PoE Port Configuration
Power
Setting Description Factory Default
Checked Allows data and power to be transmitted through the port. Checked
Unchecked Immediately shuts off power to that port
