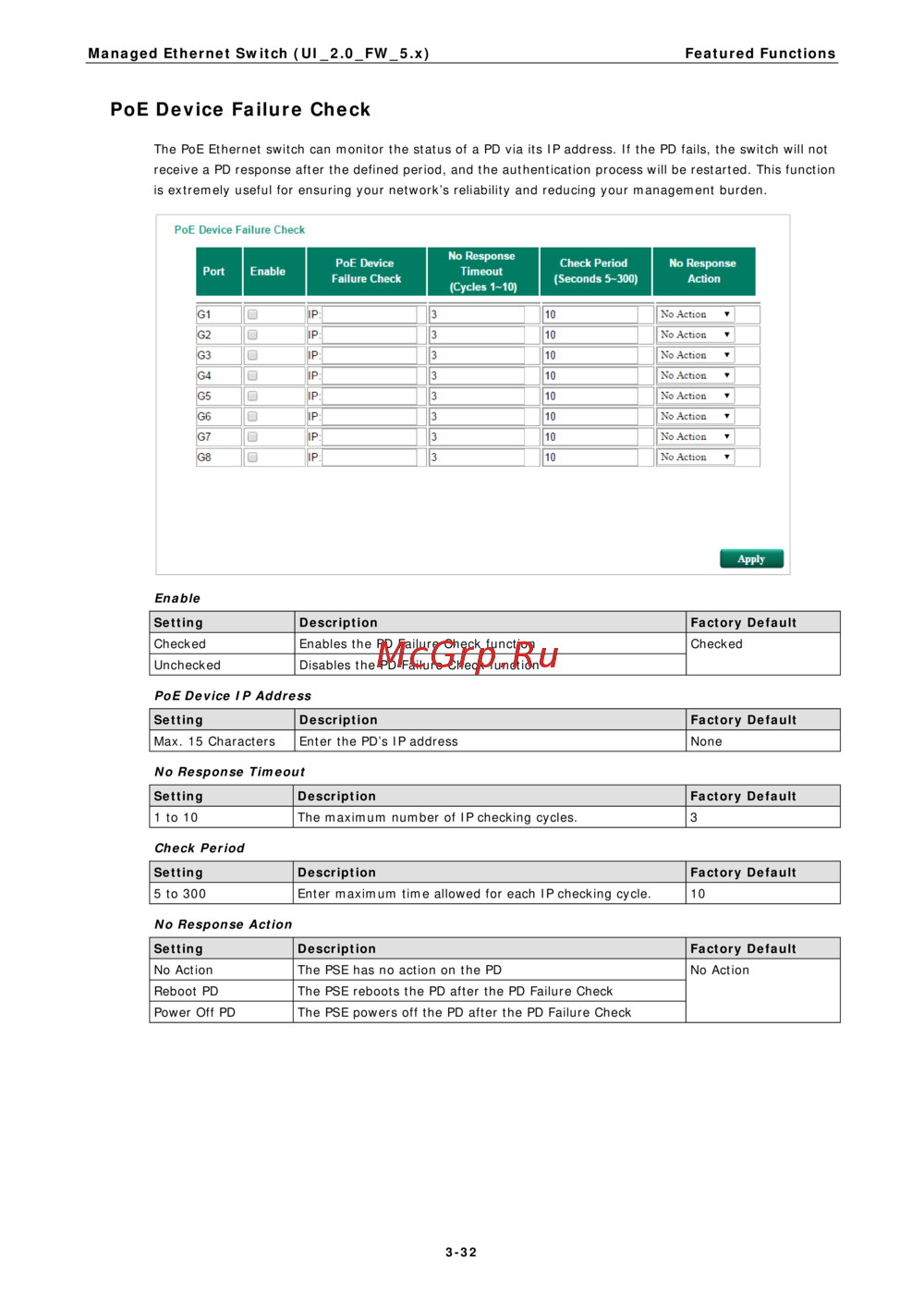

PoE Device Failure Check
The PoE Ethernet switch can monitor the status of a PD via its IP address. If the PD fails, the switch will not
receive a PD response after the defined period, and the authentication process will be restarted. This function
is extremely useful for ensuring your network’s reliability and reducing your management burden.
Enable
Setting Description Factory Default
Checked Enables the PD Failure Check function Checked
Unchecked Disables the PD Failure Check function
PoE Device IP Address
Setting Description Factory Default
Max. 15 Characters Enter the PD’s IP address None
No Response Timeout
Setting Description Factory Default
1 to 10 The maximum number of IP checking cycles. 3
Check Period
Setting Description Factory Default
5 to 300 Enter maximum time allowed for each IP checking cycle. 10
No Response Action
Setting Description Factory Default
No Action The PSE has no action on the PD No Action
Reboot PD The PSE reboots the PD after the PD Failure Check
Power Off PD The PSE powers off the PD after the PD Failure Check
