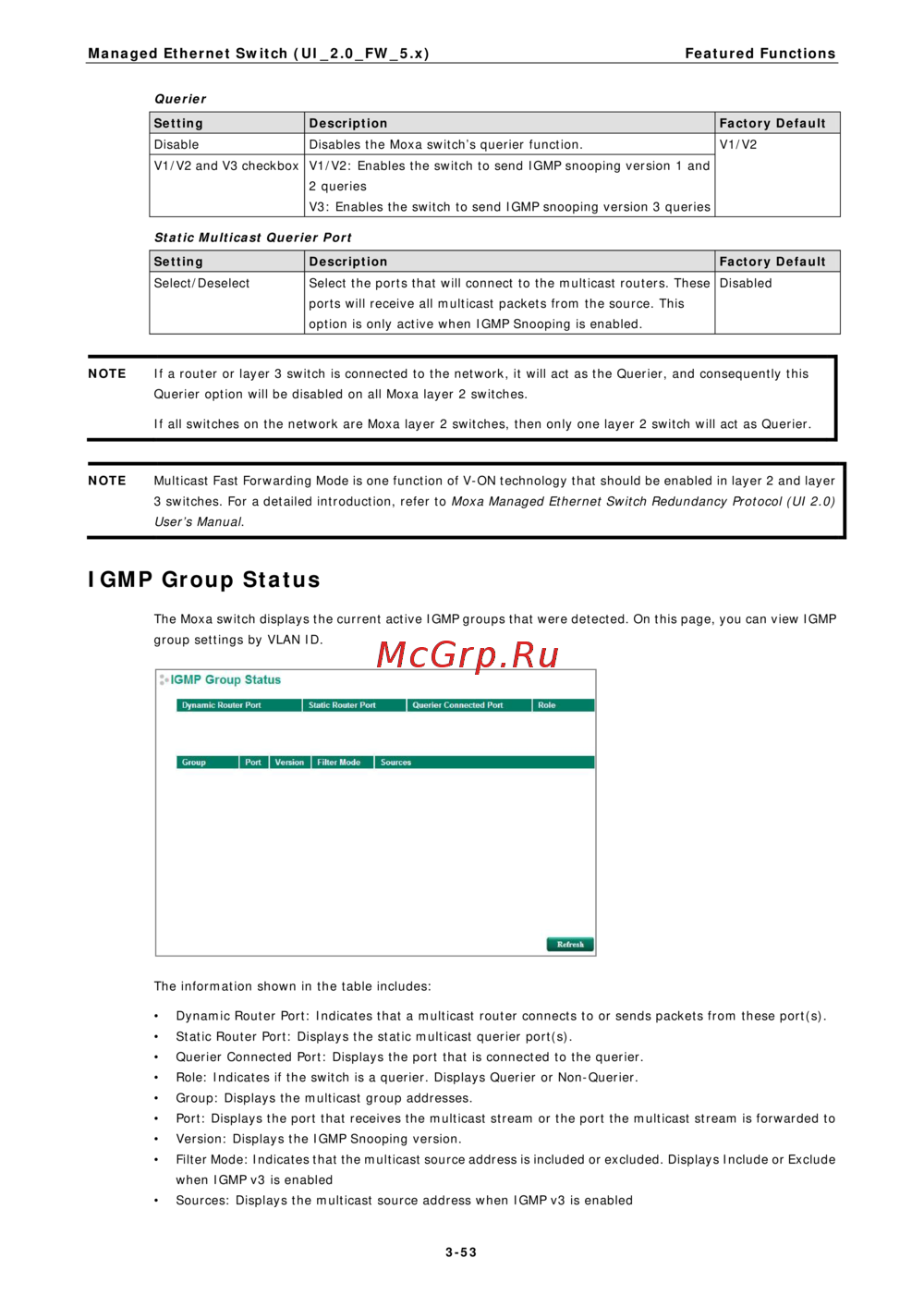

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions

3-53

Querier

Setting Description Factory Default

Disable Disables the Moxa switch’s querier function. V1/V2

V1/V2 and V3 checkbox

V1/V2: Enables the switch to send IGMP snooping version 1 and

2 queries

V3: Enables the switch to send IGMP snooping version 3 queries

Static Multicast Querier Port

Setting Description Factory Default

Select/Deselect Select the ports that will connect to the multicast routers. These

ports will receive all multicast packets from the source. This

option is only active when IGMP Snooping is enabled.

Disabled

NOTE

If a router or layer 3 switch

is connected to the network, it will act as the Querier, and consequently this

Querier option will be disabled on all Moxa layer 2 switches.

If all switches on the network are Moxa layer 2 switches, then only one layer 2 switch will act as Querier.

NOT

Multicast Fast Forwarding Mode is one function of V

-ON technology that

should be enabled in layer 2 and layer

3 switches. For

a detailed introduction, refer to

Moxa Managed Ethernet Switch Redundancy Protocol (UI 2.0)

User’s Manual

IGMP Group Status

The Moxa switch displays the current active IGMP groups that were detected. On this page, you can view IGMP

group settings by VLAN ID.

The information shown in the table includes:

• Dynamic Router Port: Indicates that a multicast router connects to or sends packets from these port(s).

• Static Router Port: Displays the static multicast querier port(s).

• Querier Connected Port: Displays the port that is connected to the querier.

• Role: Indicates if the switch is a querier. Displays Querier or Non-Querier.

• Group: Displays the multicast group addresses.

• Port: Displays the port that receives the multicast stream or the port the multicast stream is forwarded to

• Version: Displays the IGMP Snooping version.

• Filter Mode: Indicates that the multicast source address is included or excluded. Displays Include or Exclude

when IGMP v3 is enabled

• Sources: Displays the multicast source address when IGMP v3 is enabled
