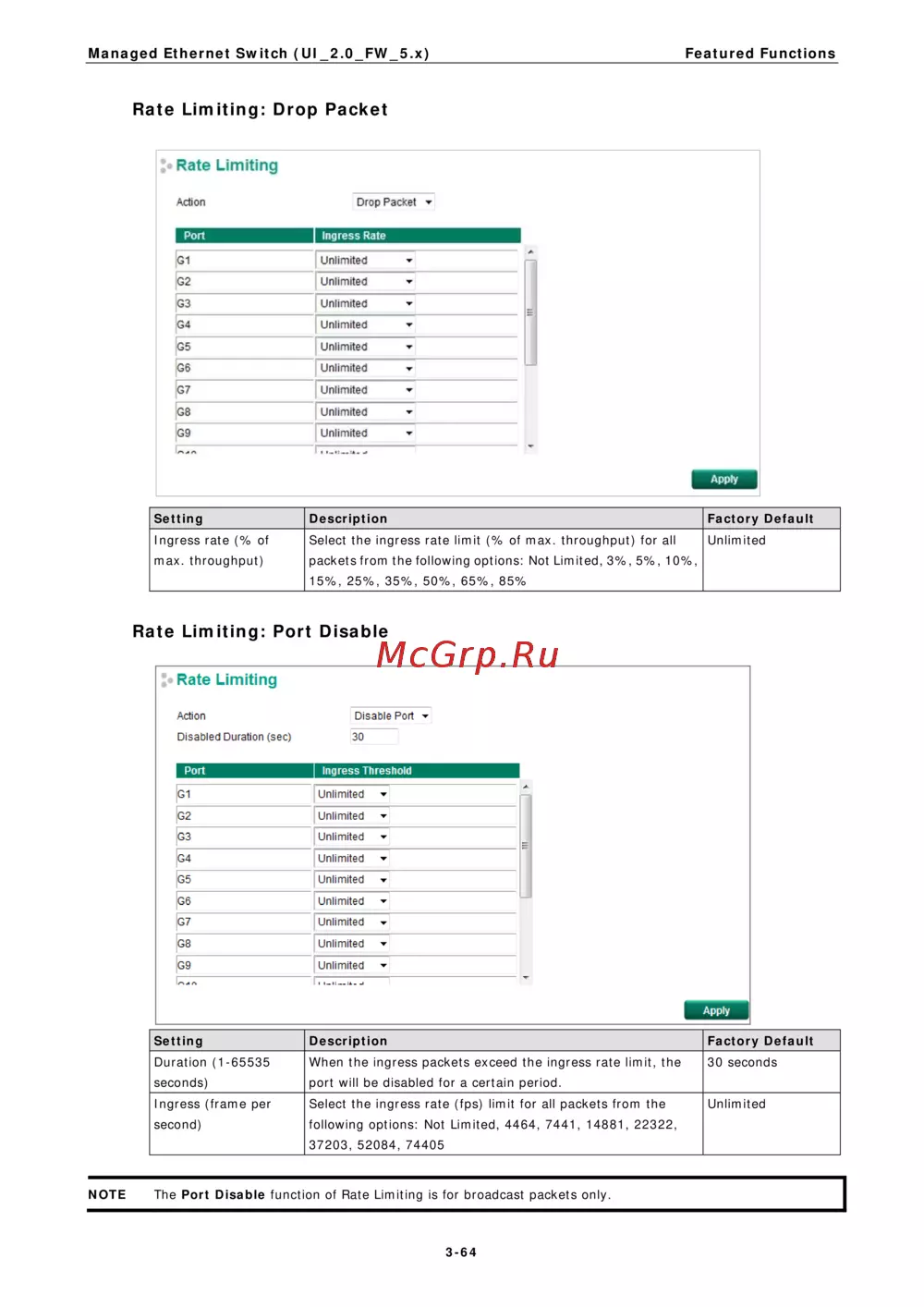

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-64
Rate Limiting: Drop Packet
Setting Description Factory Default
Ingress rate (% of
max. throughput)
Select the ingress rate limit (% of max. throughput) for all
packets from the following options: Not Limited, 3%, 5%, 10%,
15%, 25%, 35%, 50%, 65%, 85%
Unlimited
Rate Limiting: Port Disable
Setting Description Factory Default
Duration (1-65535
seconds)
When the ingress packets exceed the ingress rate limit, the
port will be disabled for a certain period.
30 seconds
Ingress (frame per
second)
Select the ingress rate (fps) limit for all packets from the
following options: Not Limited, 4464, 7441, 14881, 22322,
37203, 52084, 74405
Unlimited
NOTE
The
Port Disable function of Rate Limiting is for broadcast packets only.
