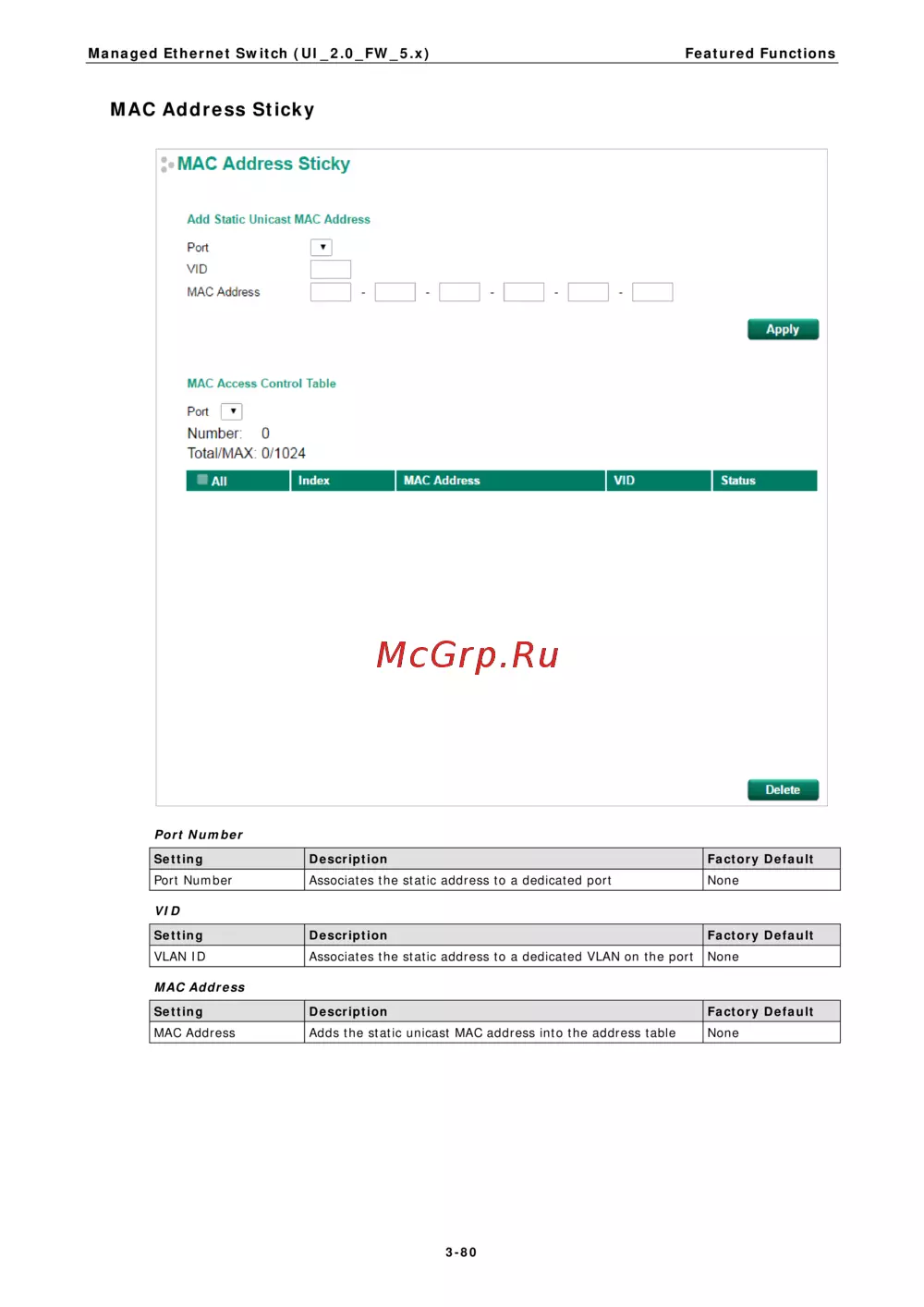

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-80
MAC Address Sticky
Port Number
Setting Description Factory Default
Port Number Associates the static address to a dedicated port None
VID
Setting Description Factory Default
VLAN ID Associates the static address to a dedicated VLAN on the port None
MAC Address
Setting Description Factory Default
MAC Address Adds the static unicast MAC address into the address table None
