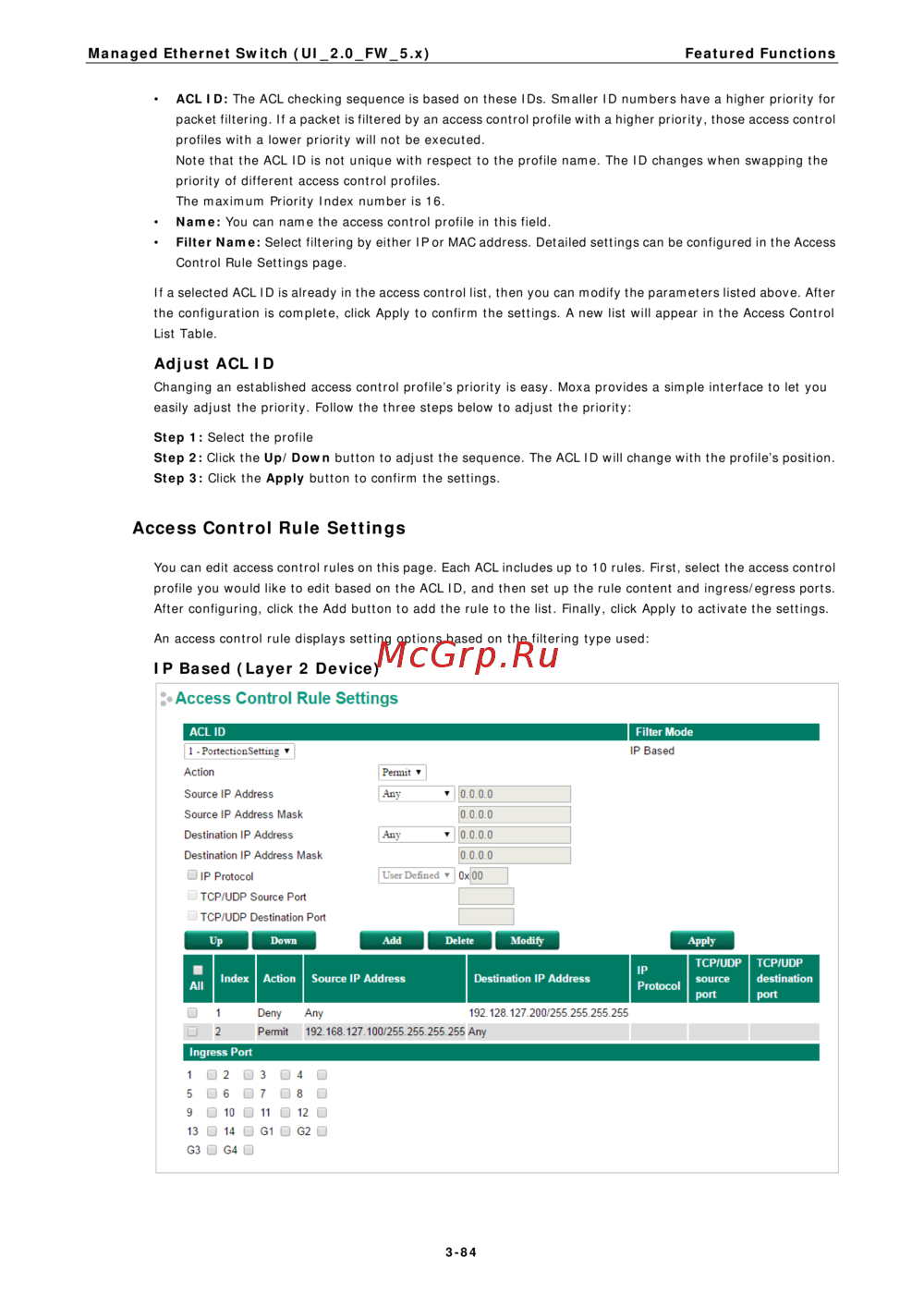

Moxa EDS-G516E-4GSFP [97/116] Ip based layer 2 device

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions

3-84

• ACL ID: The ACL checking sequence is based on these IDs. Smaller ID numbers have a higher priority for

packet filtering. If a packet is filtered by an access control profile with a higher priority, those access control

profiles with a lower priority will not be executed.

Note that the ACL ID is not unique with respect to the profile name. The ID changes when swapping the

priority of different access control profiles.

The maximum Priority Index number is 16.

• Name: You can name the access control profile in this field.

• Filter Name: Select filtering by either IP or MAC address. Detailed settings can be configured in the Access

Control Rule Settings page.

If a selected ACL ID is already in the access control list, then you can modify the parameters listed above. After

the configuration is complete, click Apply to confirm the settings. A new list will appear in the Access Control

List Table.

Adjust ACL ID

Changing an established access control profile’s priority is easy. Moxa provides a simple interface to let you

easily adjust the priority. Follow the three steps below to adjust the priority:

Step 1: Select the profile

Step 2: Click the Up/Down button to adjust the sequence. The ACL ID will change with the profile’s position.

Step 3: Click the Apply button to confirm the settings.

Access Control Rule Settings

You can edit access control rules on this page. Each ACL includes up to 10 rules. First, select the access control

profile you would like to edit based on the ACL ID, and then set up the rule content and ingress/egress ports.

After configuring, click the Add button to add the rule to the list. Finally, click Apply to activate the settings.

An access control rule displays setting options based on the filtering type used:

IP Based (Layer 2 Device)
