- 11 -

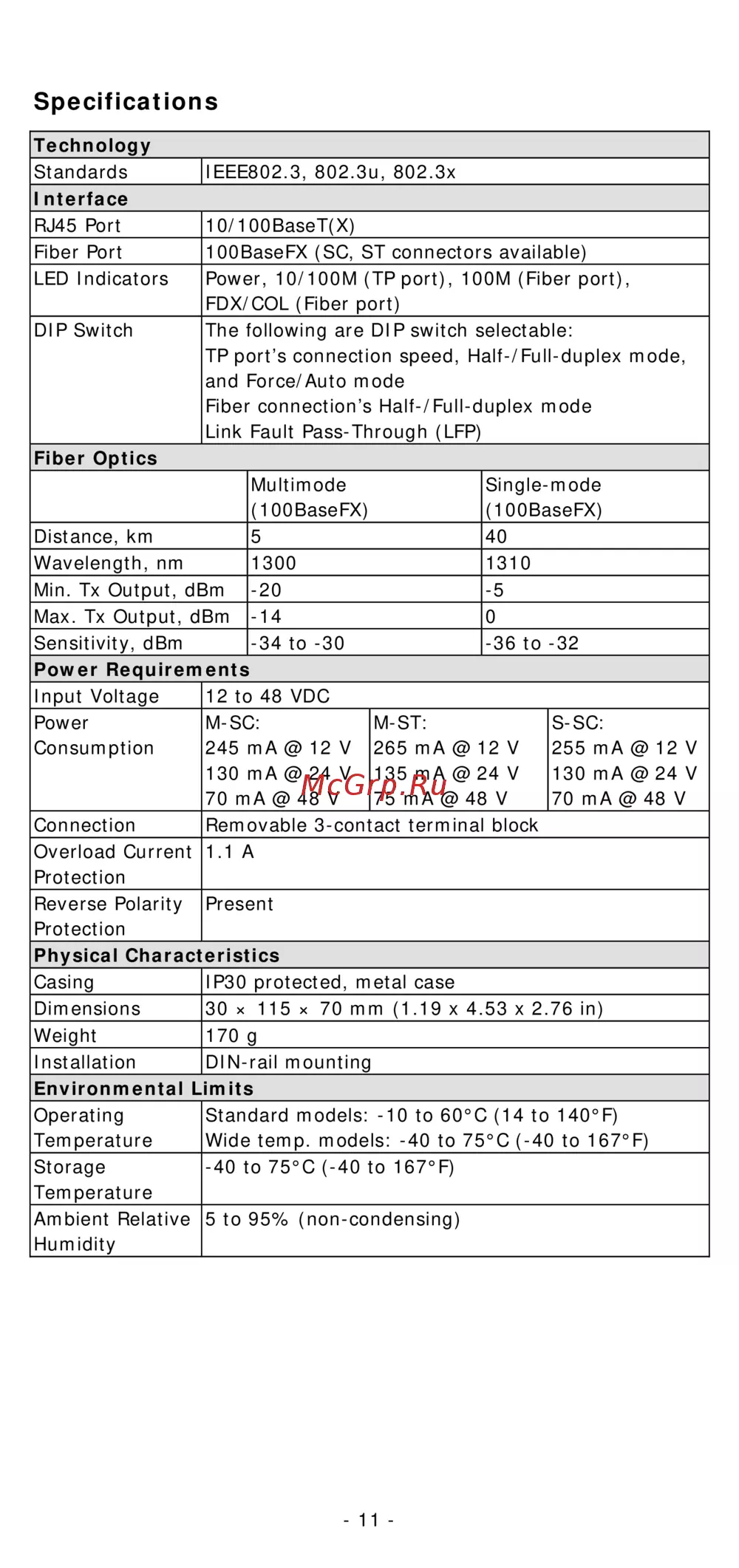

Specifications
Technology
Standards
IEEE802.3, 802.3u, 802.3x
Interface
RJ45 Port
10/100BaseT(X)
Fiber Port
100BaseFX (SC, ST connectors available)
LED Indicators
Power, 10/100M (TP port), 100M (Fiber port),
FDX/COL (Fiber port)
DIP Switch The following are DIP switch selectable:
TP port’s connection speed, Half-/Full-duplex mode,
and Force/Auto mode
Fiber connection’s Half-/Full-duplex mode
Link Fault Pass-Through (LFP)
Fiber Optics
Multimode
(100BaseFX)
Single-mode
(100BaseFX)
Distance, km
5
40
Wavelength, nm
1300
1310
Min. Tx Output, dBm
-20
-5
Max. Tx Output, dBm
-14
0
Sensitivity, dBm
-34 to -30
-36 to -32
Power Requirements
Input Voltage
12 to 48 VDC
Power
Consumption
M-SC:
245 mA @ 12 V
130 mA @ 24 V
70 mA @ 48 V
M-ST:
265 mA @ 12 V
135 mA @ 24 V
75 mA @ 48 V
S-SC:
255 mA @ 12 V
130 mA @ 24 V
70 mA @ 48 V
Connection
Removable 3-contact terminal block
Overload Current
Protection
1.1 A
Reverse Polarity
Protection
Present
Physical Characteristics
Casing
IP30 protected, metal case
Dimensions
30 × 115 × 70 mm (1.19 x 4.53 x 2.76 in)
Weight
170 g
Installation
DIN-rail mounting
Environmental Limits
Operating
Temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temp. models: -40 to 75°C (-40 to 167°F)
Storage
Temperature
-40 to 75°C (-40 to 167°F)
Ambient Relative
Humidity
5 to 95% (non-condensing)
