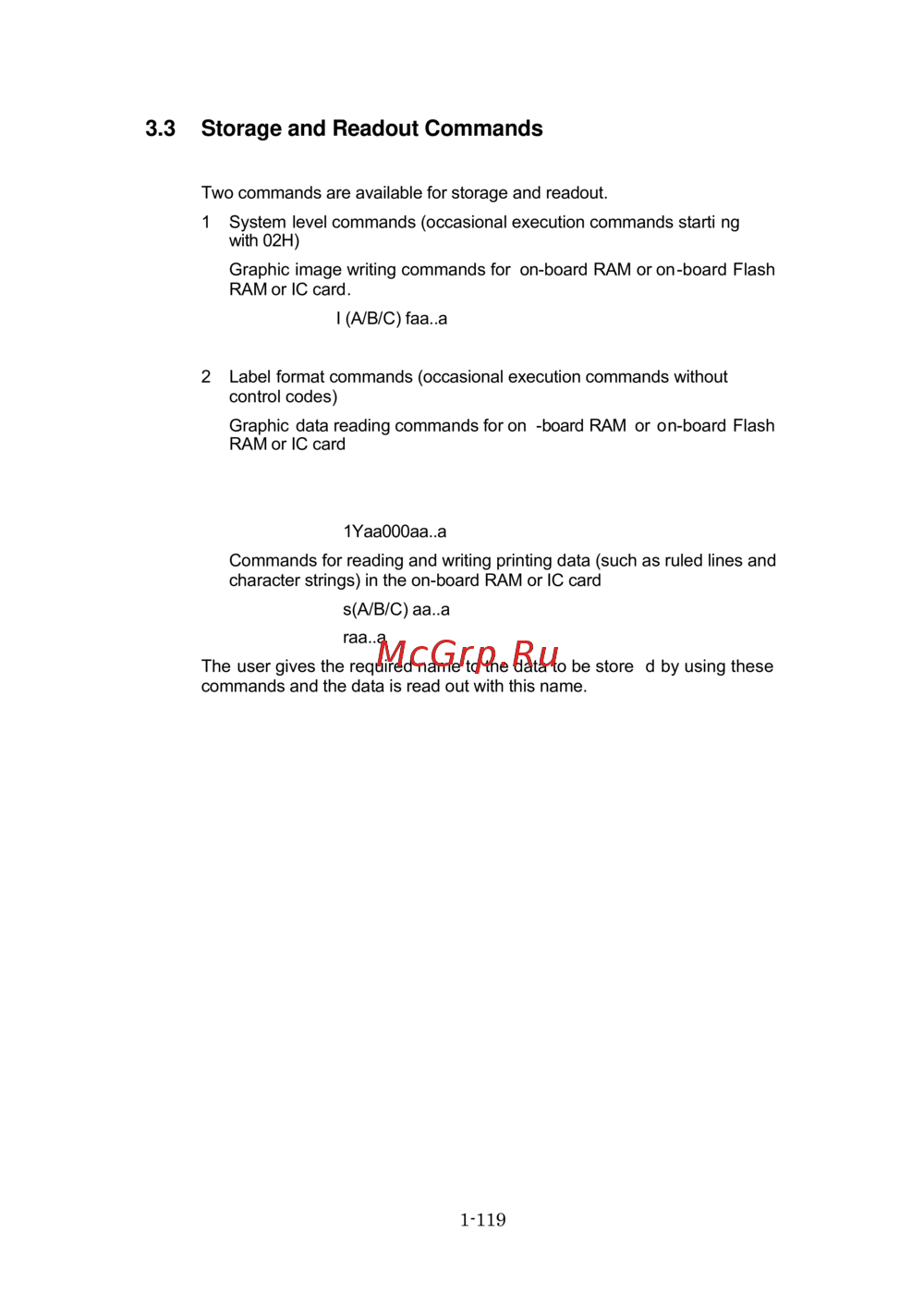

3.3 Storage and Readout Commands

Two commands are available for storage and readout.

1 System level commands (occasional execution commands starti ng

with 02H)

Graphic image writing commands for on-board RAM or on-board Flash

RAM or IC card.

I (A/B/C) faa..a

2 Label format commands (occasional execution commands without

control codes)

Graphic data reading commands for on -board RAM or on-board Flash

RAM or IC card

1Yaa000aa..a

Commands for reading and writing printing data (such as ruled lines and

character strings) in the on-board RAM or IC card

s(A/B/C) aa..a

raa..a

The user gives the required name to the data to be store d by using these

commands and the data is read out with this name.
