Gigabyte ga-x99-ud5 wifi [53/128] 3dmark01 enhancement

BIOS Setup

- 53 -

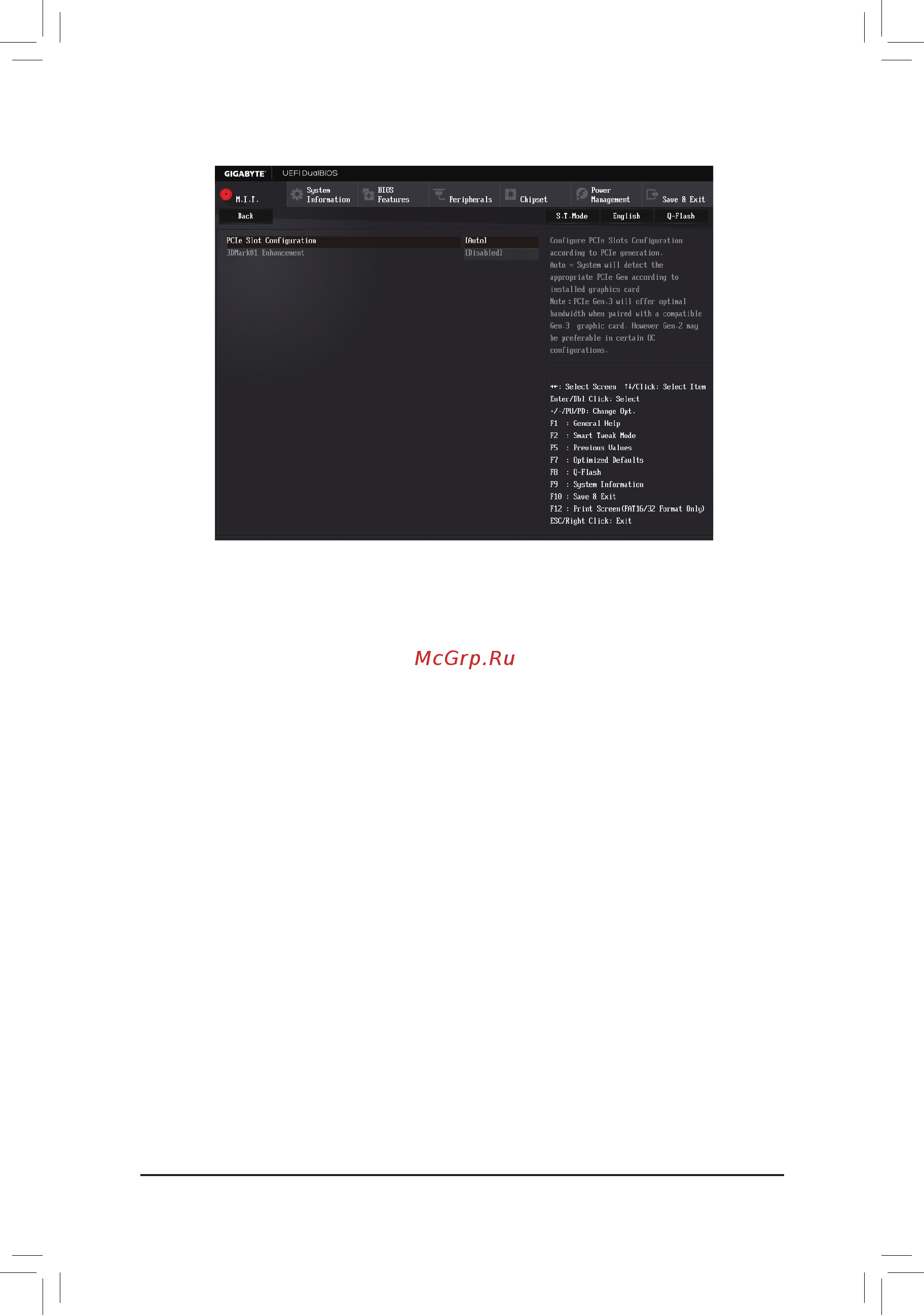

` Miscellaneous Settings

& PCIeSlotConguration

Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation

modeissubjecttothehardwarespecicationofeachslot.AutoletstheBIOSautomaticallycongurethis

setting.(Default:Auto)

& 3DMark01 Enhancement

 Allowsyoutodeterminewhethertoenhancesomelegacybenchmarkperformance.(Default:Disabled)
