Tohatsu M 5 [46/67] Wiring diagram 4 stroke
![Tohatsu M 5 [46/67] Wiring diagram 4 stroke](/views2/1240786/page46/bg2e.png)

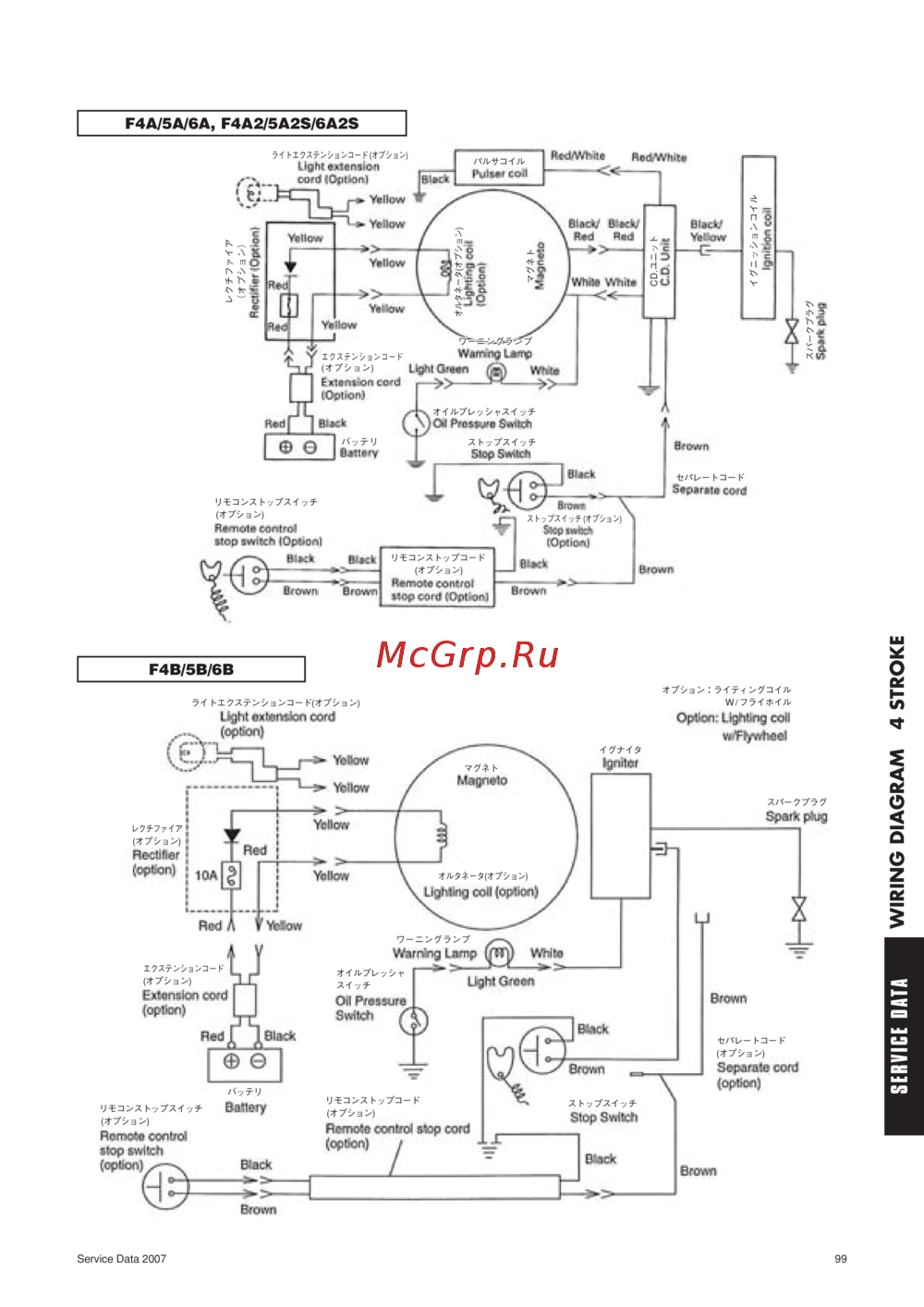

F4A/5A/6A, F4A2/5A2S/6A2S
F4B/5B/6B
レクチファイア
(オプション)
ライトエクステンションコード (オプション)
パルサコイル
オルタネータ(オプション)
マグネト
ワーニングランプワーニングランプ
エクステンションコード
(オプション)
バッテリ
オイルプレッシャスイッチ
ストップスイッチ
CD.ユニット
イグニッションコイル
リモコンストップコード
(オプション)
スパークプラグ
セパレートコード
ストップスイッチ (オプション)
リモコンストップスイッチ
(オプション)
ライトエクステンションコード(オプション)
レクチファイア
(オプション)
エクステンションコード
(オプション)
リモコンストップスイッチ
(オプション)
バッテリ
オイルプレッシャ
スイッチ
ワーニングランプ
マグネト
オルタネータ(オプション)
リモコンストップコード
(オプション)
ストップスイッチ
イグナイタ
スパークプラグ
オプション:ライティングコイル
W / フライホイル
セパレートコード
(オプション)
Service Data 2007 99
SERVICE DATA
WIRING DIAGRAM 4 STROKE
