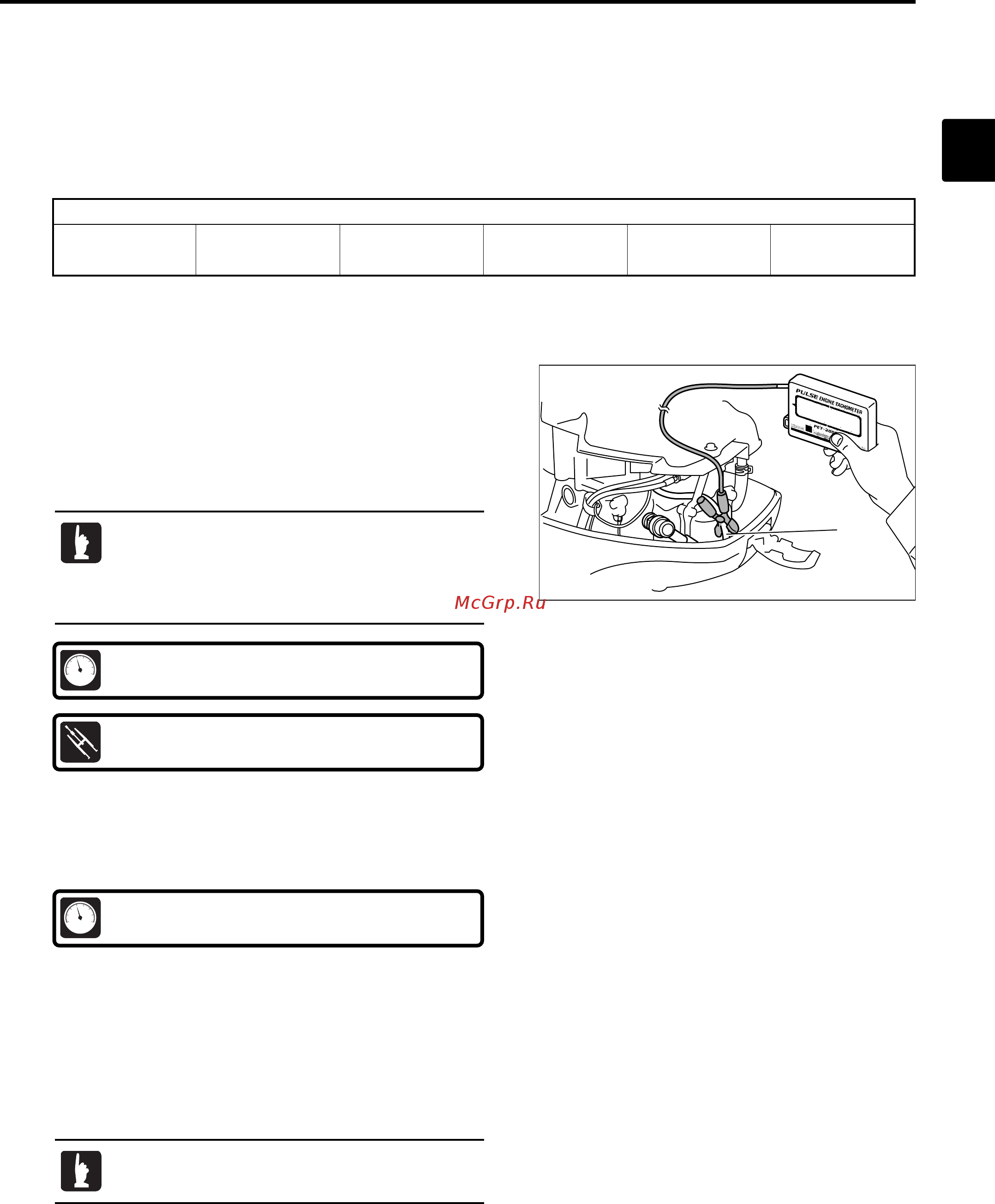

![Tohatsu MFS 3.5 A2 [18/165] Test run](/views2/1240886/page18/bg12.png)
1-11
1
4st 2/2.5/3.5 2007

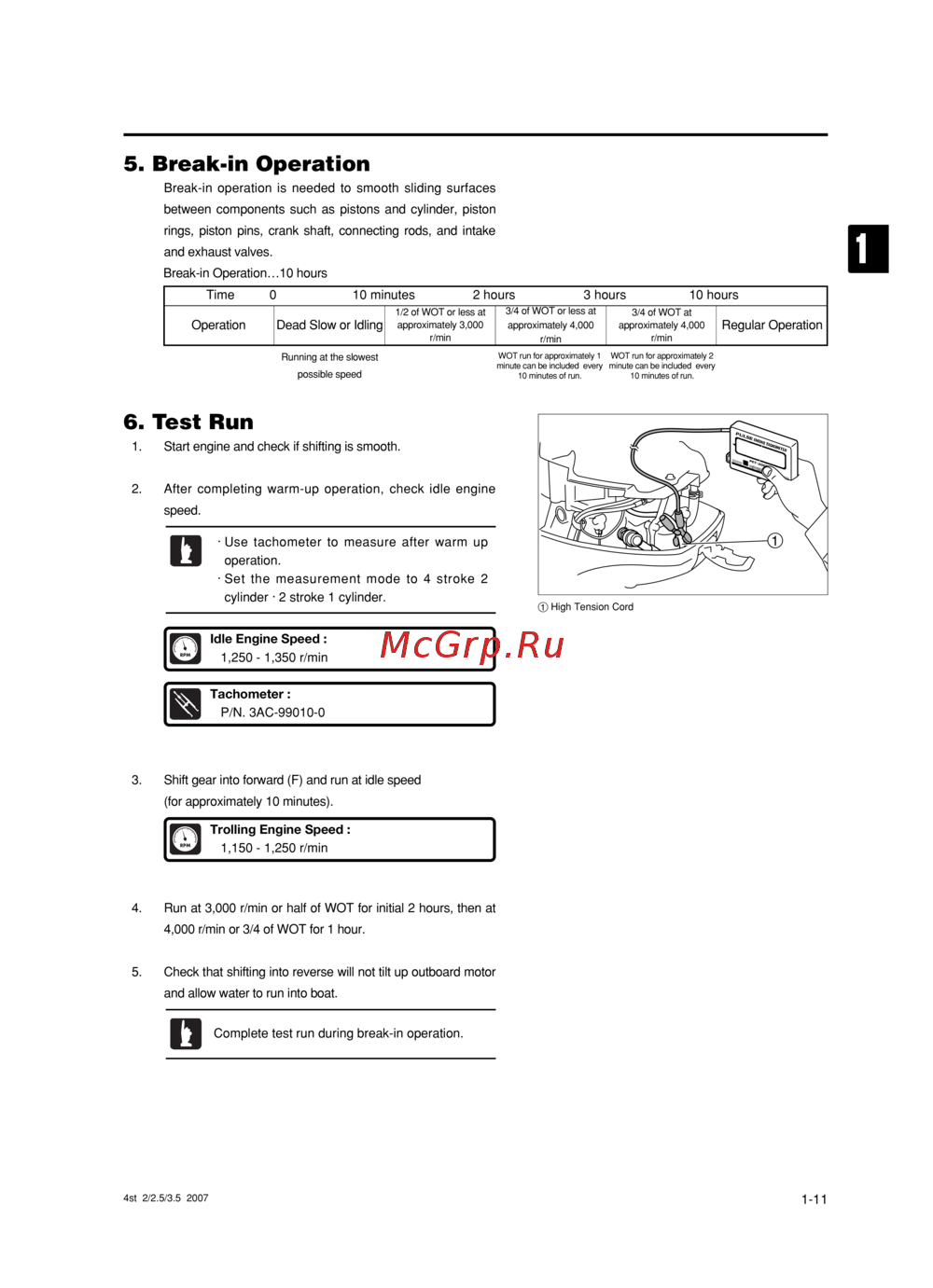

6. Test Run
1. Start engine and check if shifting is smooth.
2. After completing warm-up operation, check idle engine
speed.
Complete test run during break-in operation.
Trolling Engine Speed :
1,150 - 1,250 r/min
RPM
4. Run at 3,000 r/min or half of WOT for initial 2 hours, then at
4,000 r/min or 3/4 of WOT for 1 hour.
5. Check that shifting into reverse will not tilt up outboard motor
and allow water to run into boat.
3. Shift gear into forward (F) and run at idle speed
(for approximately 10 minutes).
1
1 High Tension Cord
Idle Engine Speed :
1,250 - 1,350 r/min
RPM
Tachometer :
P/N. 3AC-99010-0
5. Break-in Operation
Break-in operation is needed to smooth sliding surfaces
between components such as pistons and cylinder, piston
rings, piston pins, crank shaft, connecting rods, and intake
and exhaust valves.
Operation Dead Slow or Idling
1/2 of WOT or less at
approximately 3,000
r/min
3/4 of WOT or less at
approximately 4,000
r/min
WOT run for approximately 1
minute can be included every
10 minutes of run.
WOT run for approximately 2
minute can be included every
10 minutes of run.
Running at the slowest
possible speed
3/4 of WOT at
approximately 4,000
r/min
Regular Operation
Time 0 10 minutes 2 hours 3 hours 10 hours
Break-in Operation…10 hours
· Use tachometer to measure after warm up
operation.
· Set the measurement mode to 4 stroke 2
cylinder · 2 stroke 1 cylinder.
