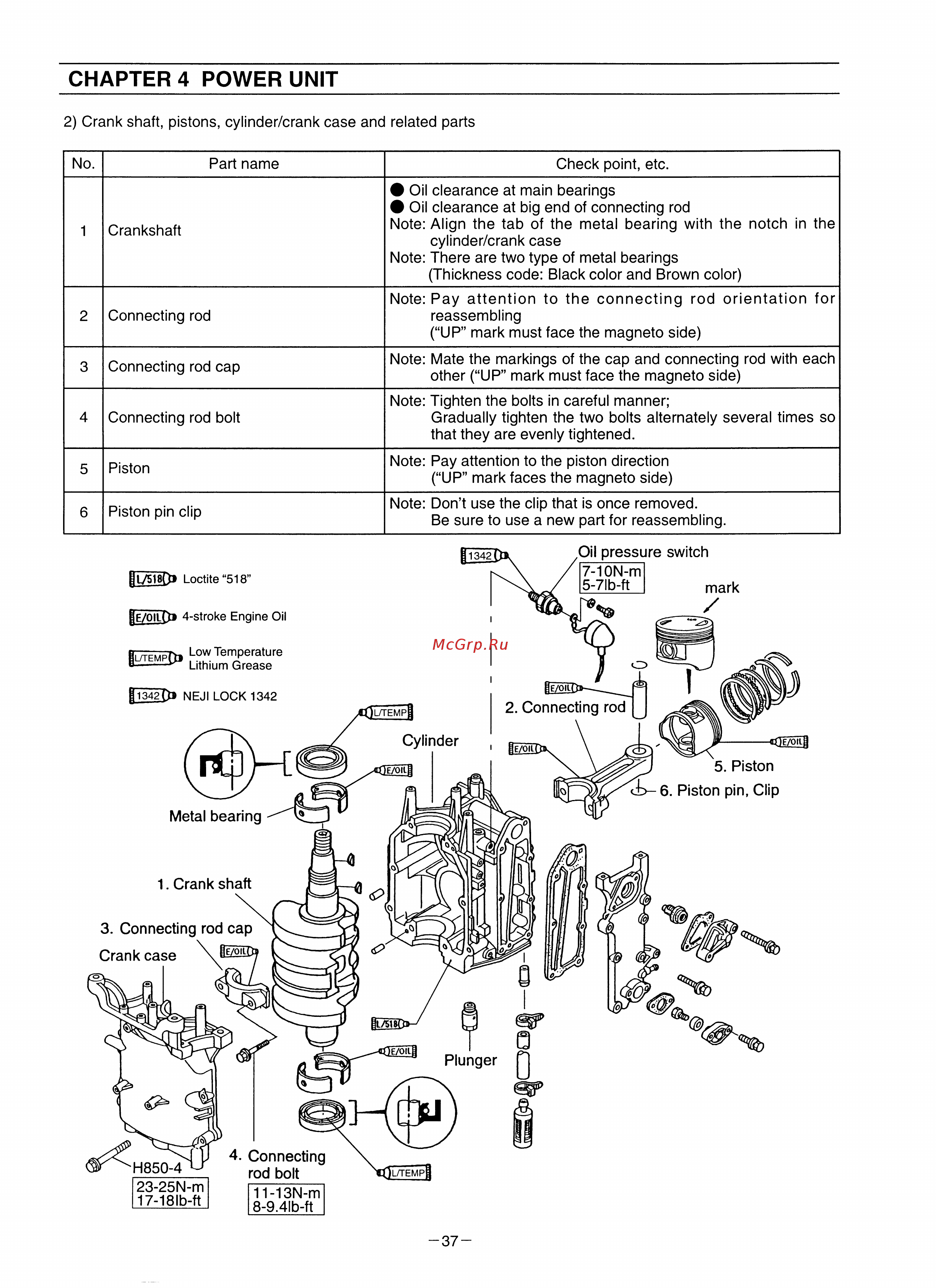

CHAPTER 4 POWER UNIT 2 Crank shaft pistons cylinder crank case and related parts No Part name Check point etc Oil clearance at main bearings Oil clearance at big end of connecting rod Note Align the tab of the metal bearing with the notch in the cylinder crank case Note There are two type of metal bearings Thickness code Black color and Brown color 1 Crankshaft 2 Connecting rod 3 Connecting rod cap Note Mate the markings of the cap and connecting rod with each other UP mark must face the magneto side 4 Connecting rod bolt Note Tighten the bolts in careful manner Gradually tighten the two bolts alternately several times so that they are evenly tightened 5 Piston Note Pay attention to the piston direction UP mark faces the magneto side 6 Piston pin clip Note Don t use the clip that is once removed Be sure to use a new part for reassembling Note Pay attention to the connecting reassembling UP mark must face the magneto side rod orientation jÏ342O Oil pressure switch ZTX 7 10N m 5 7lb ft mark VA l 518O Loctite 518 E OILQ 4 stroke Engine Oil 7777 Low Temperature B Lithium Grease B 1342CI NEJI LOCK 1342 X LÆE MP1 2 Connecting rod J Cylinder gi oiitx xnÊToiïa H 5 piston Piston pin Clip Metal bearing CIBWWH Æ 1 Crank shaft 3 Connecting rod cap 5 Mil tt l tea 0 Crank case j X mi fl vX iCz fl al rTTr 5 1 T ç 4 H85 MV rod bolt Connecting ____ OE Ollj 11 Plunger 0 X s ï ÙTEMp 37 for
