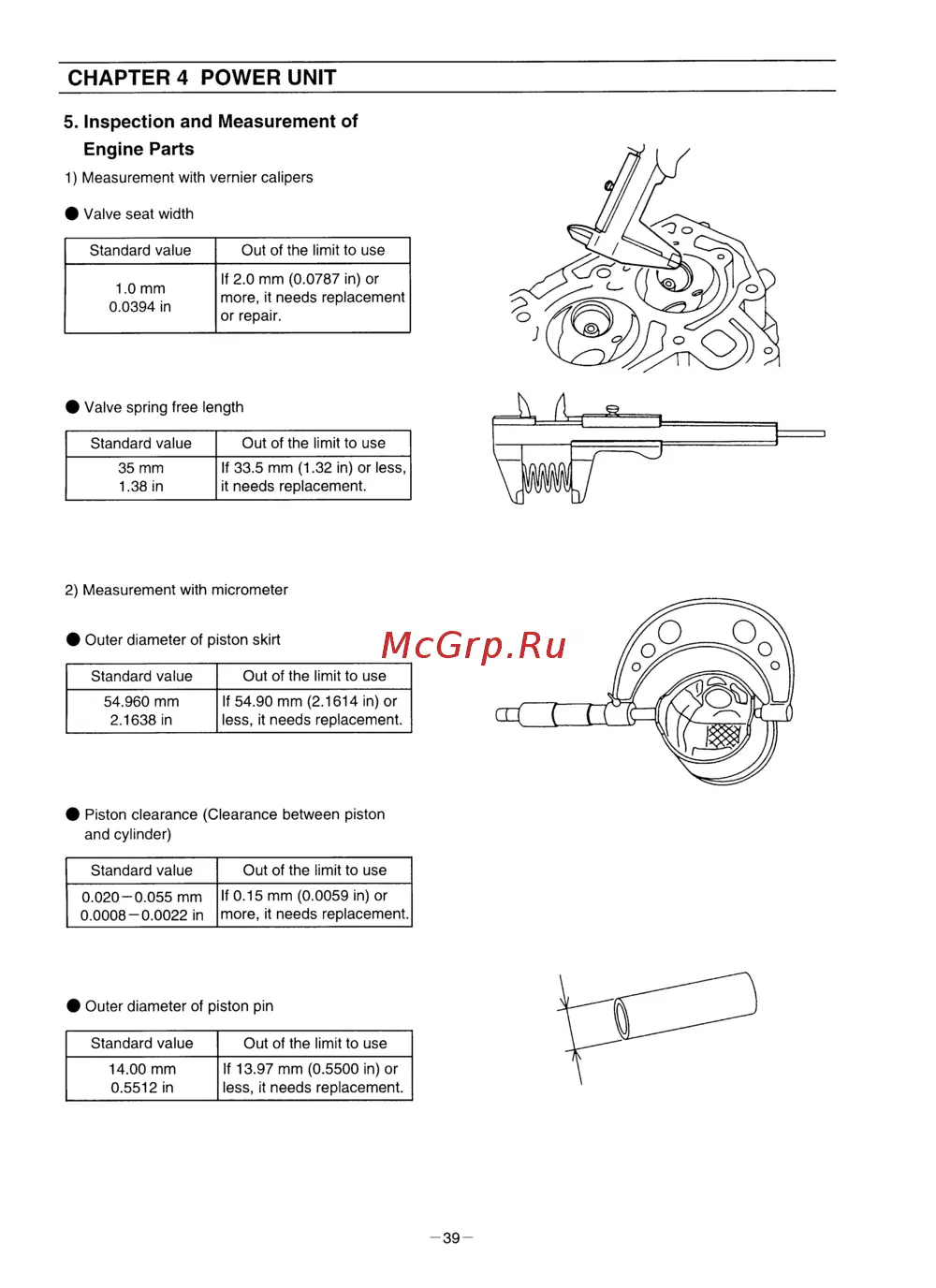

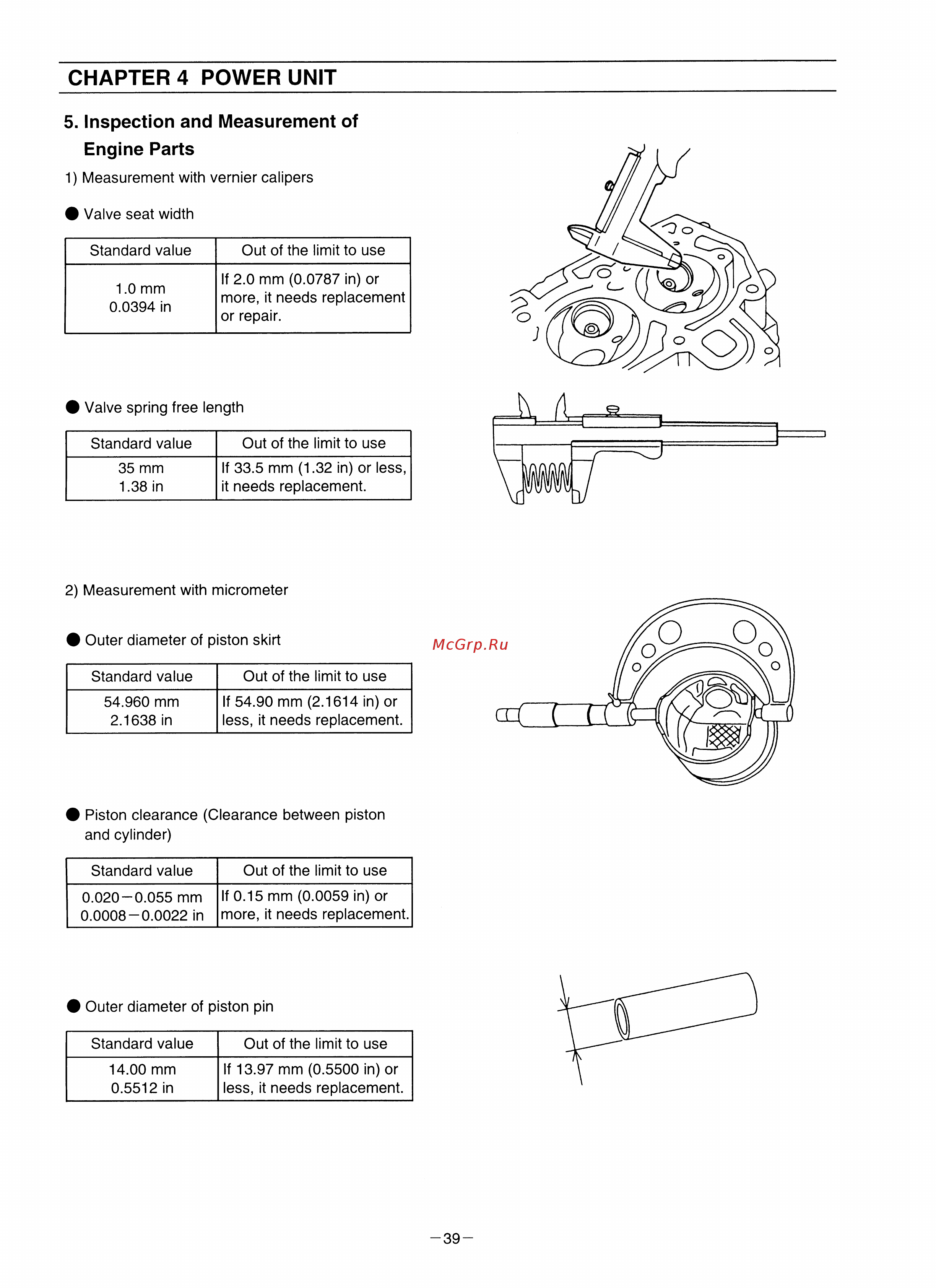

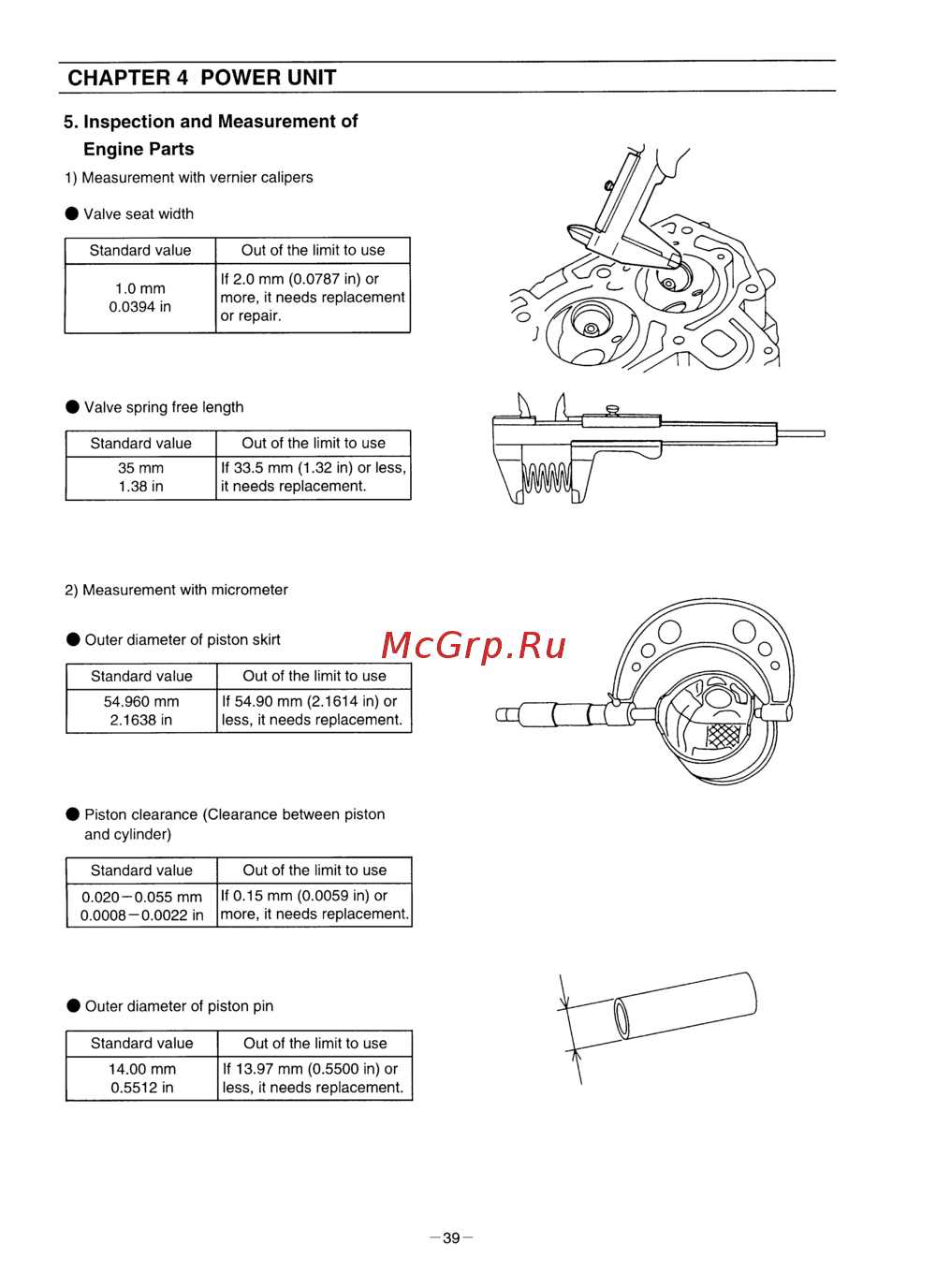

CHAPTER 4 POWER UNIT 5 Inspection and Measurement of Engine Parts 1 Measurement with vernier calipers Valve seat width Standard value Out of the limit to use 1 0 mm 0 0394 in If 2 0 mm 0 0787 in or more it needs replacement or repair Valve spring free length Out of the limit to use Standard value 35 mm 1 38 in If 33 5 mm 1 32 in or less it needs replacement 2 Measurement with micrometer Outer diameter of piston skirt Standard value 54 960 mm 2 1638 in Out of the limit to use If 54 90 mm 2 1614 in or less it needs replacement Piston clearance Clearance between piston and cylinder Out of the limit to use Standard value 0 020 0 055 mm 0 0008 0 0022 in If 0 15 mm 0 0059 in or more it needs replacement Outer diameter of piston pin Standard value Out of the limit to use 14 00 mm 0 5512 in If 13 97 mm 0 5500 in or less it needs replacement 39
