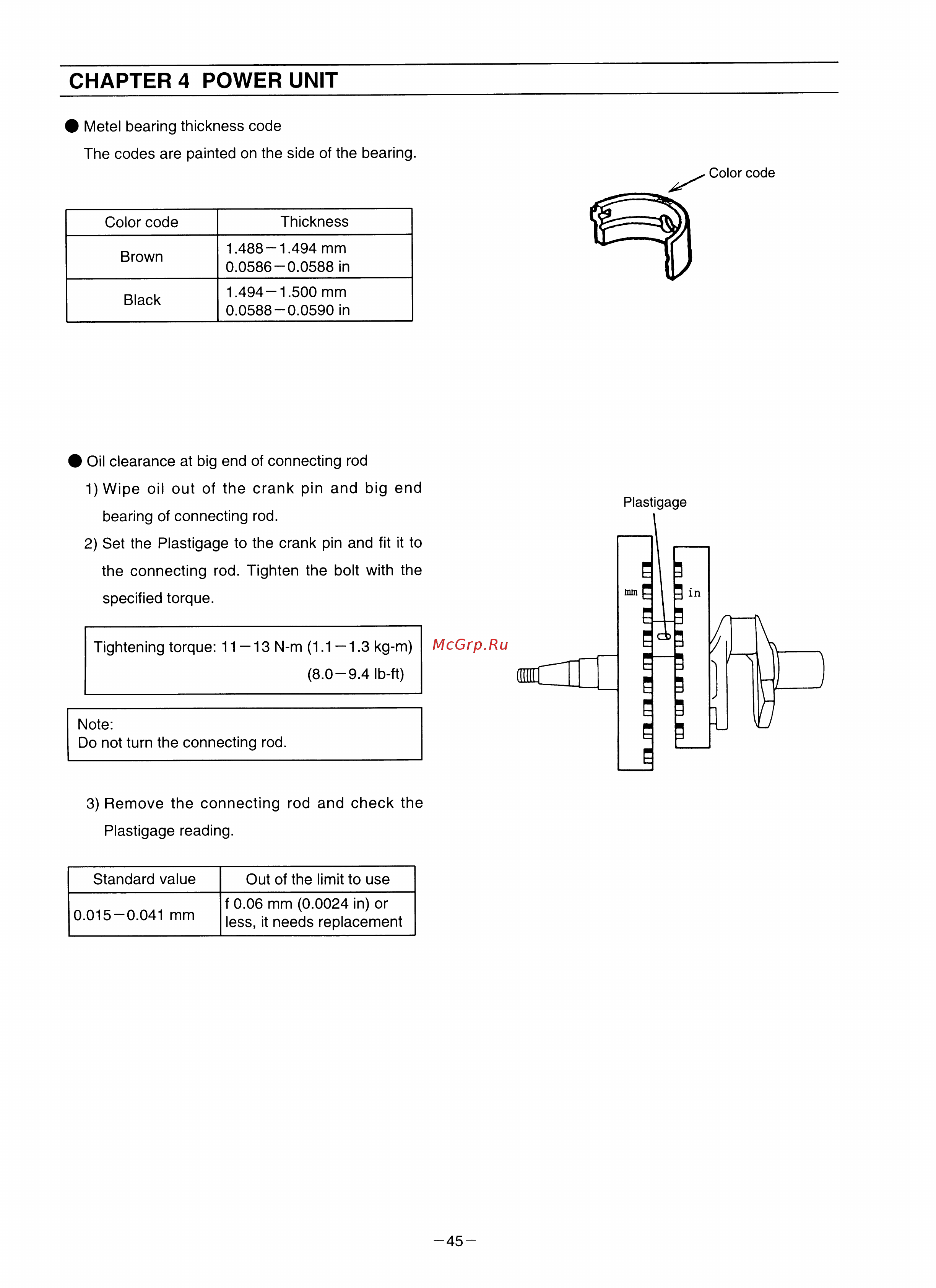

CHAPTER 4 POWER UNIT Metel bearing thickness code The codes are painted on the side of the bearing Thickness Color code Brown 1 488 1 494 mm 0 0586 0 0588 in Black 1 494 1 500 mm 0 0588 0 0590 in Oil clearance at big end of connecting rod 1 Wipe oil out of the crank pin and big end Plastigage bearing of connecting rod 2 Set the Plastigage to the crank pin and fit it to the connecting rod Tighten the bolt with the specified torque Tightening torque 11 13 N m 1 1 1 3 kg m 8 0 9 4 Ib ft Note Do not turn the connecting rod 3 Remove the connecting rod and check the Plastigage reading Standard value 0 015 0 041 mm Out of the limit to use f 0 06 mm 0 0024 in or less it needs replacement 45
