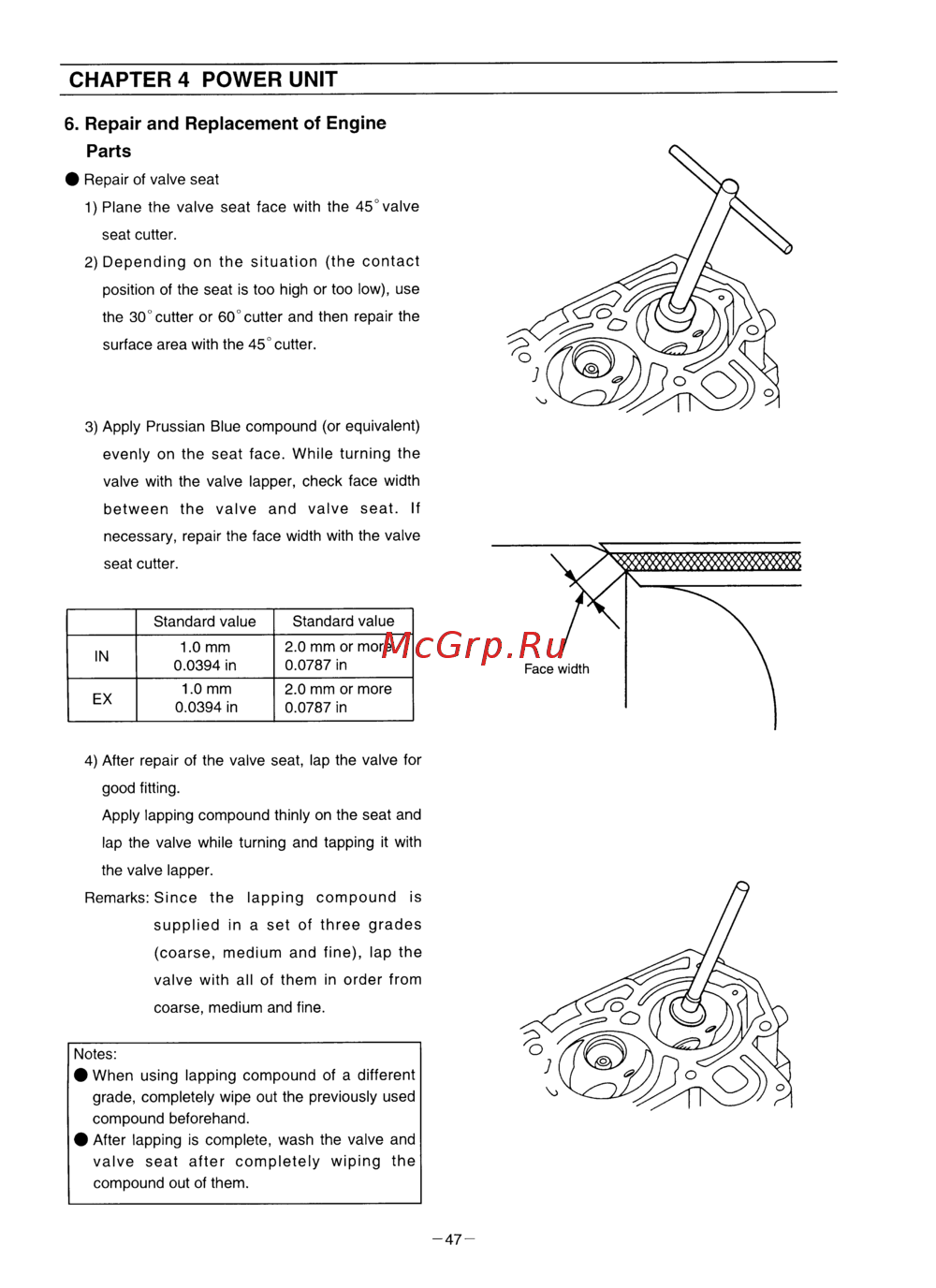

CHAPTER 4 POWER UNIT 6 Repair and Replacement of Engine Parts Repair of valve seat 1 Plane the valve seat face with the 45 valve seat cutter 2 Depending on the situation the contact position of the seat is too high or too low use the 30 cutter or 60 cutter and then repair the surface area with the 45 cutter 3 Apply Prussian Blue compound or equivalent evenly on the seat face While turning the valve with the valve lapper check face width between the valve and valve seat If necessary repair the face width with the valve seat cutter Standard value Standard value IN 1 0 mm 0 0394 in 2 0 mm or more 0 0787 in EX 1 0 mm 0 0394 in 2 0 mm or more 0 0787 in 4 After repair of the valve seat lap the valve for good fitting Apply lapping compound thinly on the seat and lap the valve while turning and tapping it with the valve lapper Remarks Since the lapping supplied in coarse medium a set of and compound three fine is grades lap the valve with all of them in order from coarse medium and fine Notes When using lapping compound of a different grade completely wipe out the previously used compound beforehand After lapping is complete wash the valve and valve seat after completely wiping the compound out of them 47
