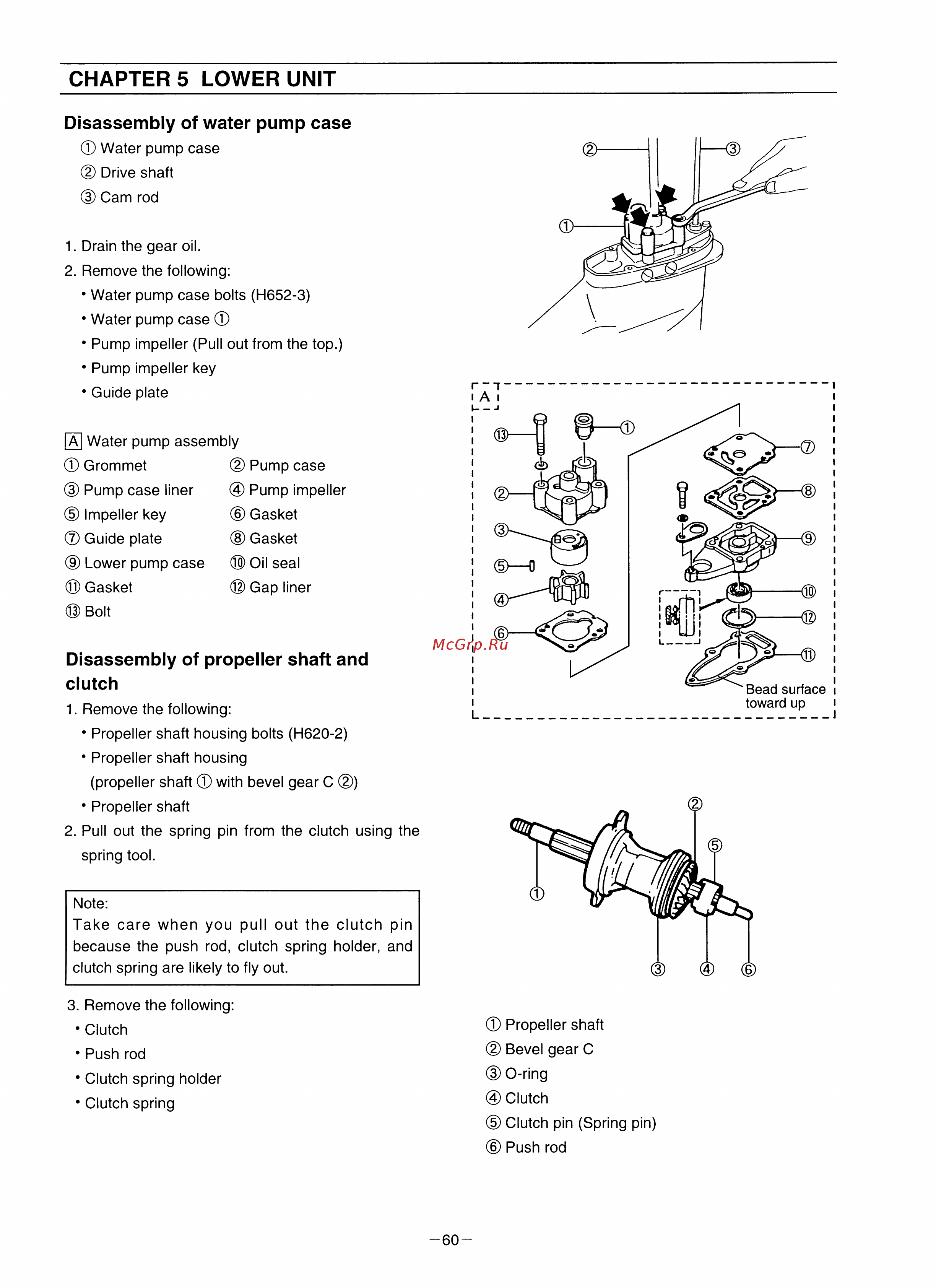

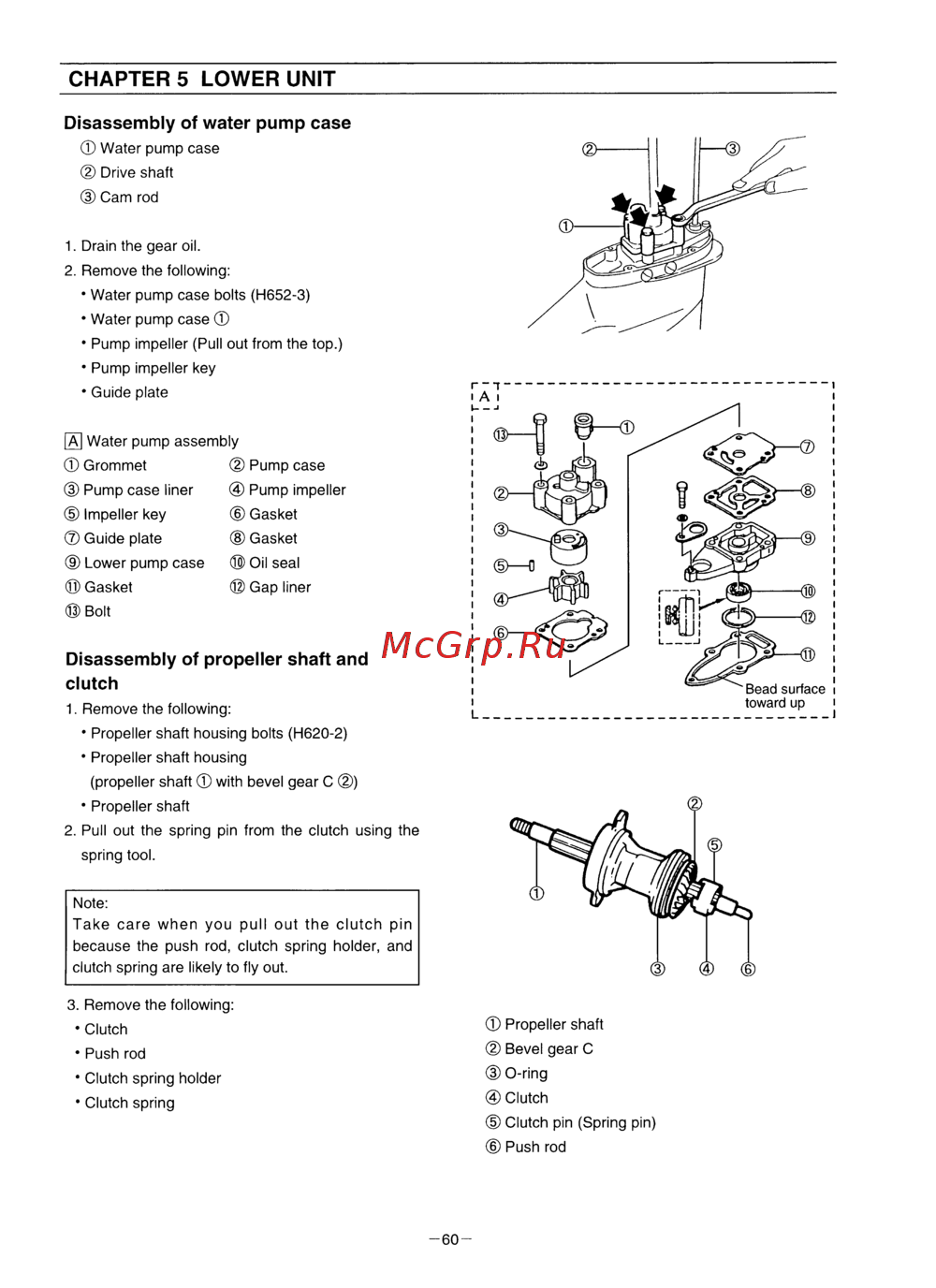

CHAPTERS LOWER UNIT Disassembly of water pump case Water pump case Drive shaft Cam rod 1 Drain the gear oil 2 Remove the following Water pump case bolts H652 3 Water pump case Pump impeller Pull out from the top Pump impeller key Guide plate A Water pump assembly Grommet Pump case Pump case liner Pump impeller Impeller key Gasket Guide plate Gasket Lower pump case Oil seal Gasket Gap liner Bolt Disassembly of propeller shaft and clutch 1 Remove the following Propeller shaft housing bolts H620 2 Propeller shaft housing propeller shaft with bevel gear C Propeller shaft 2 Pull out the spring pin from the clutch using the spring tool Note Take care when you pull out the clutch pin because the push rod clutch spring holder and clutch spring are likely to fly out 3 Remove the following Clutch Propeller shaft Push rod Bevel gear C Clutch spring holder O ring Clutch spring Clutch Clutch pin Spring pin Push rod 60
