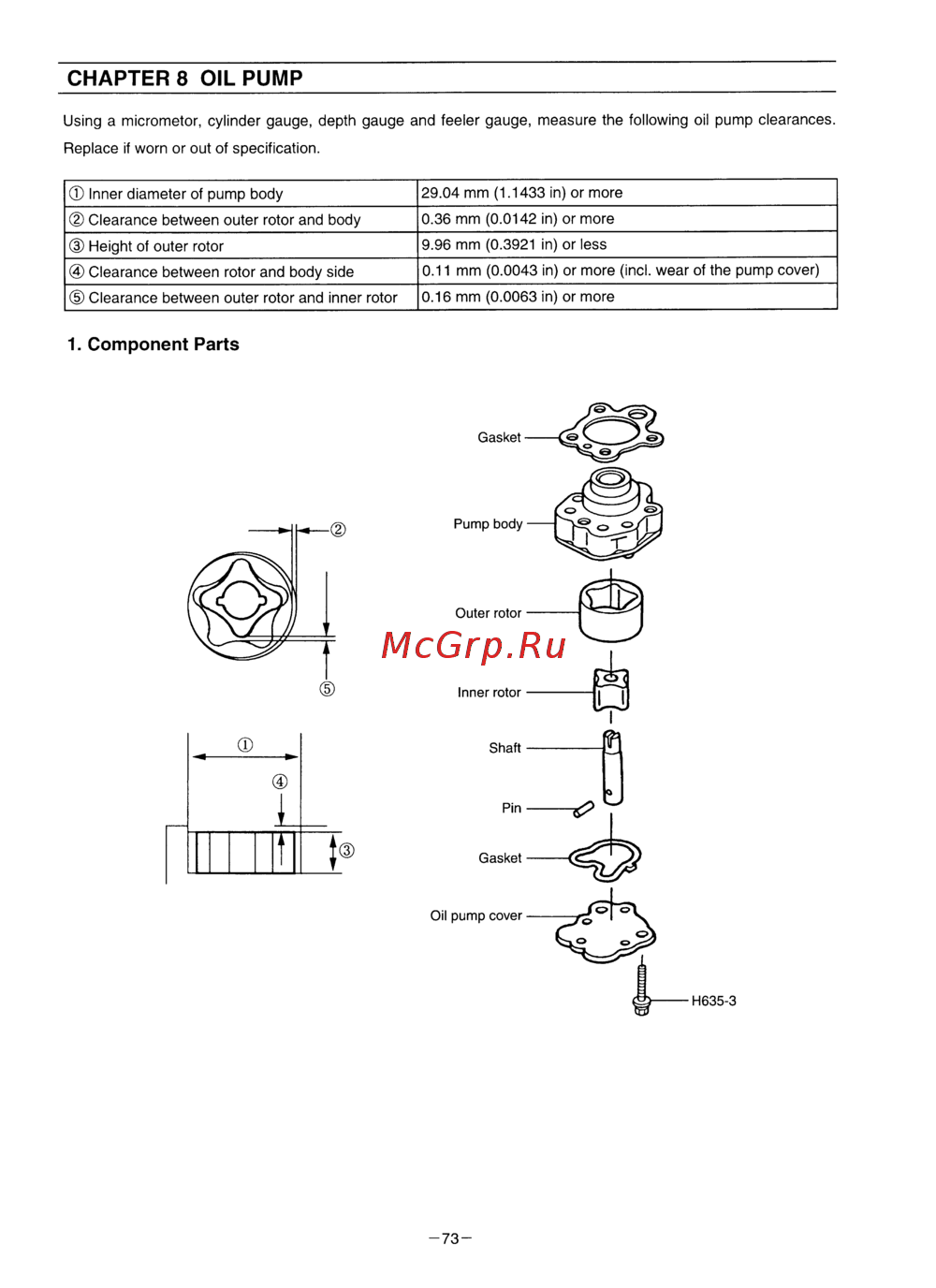

CHAPTER 8 OIL PUMP Using a micrometer cylinder gauge depth gauge and feeler gauge measure the following oil pump clearances Replace if worn or out of specification Inner diameter of pump body 29 04 mm 1 1433 in or more Clearance between outer rotor and body 0 36 mm 0 0142 in or more Height of outer rotor 9 96 mm 0 3921 in or less Clearance between rotor and body side 0 11 mm 0 0043 in or more incl wear of the pump cover Clearance between outer rotor and inner rotor 0 16 mm 0 0063 in or more 1 Component Parts Gasket __ S Pump body o S Tj Hh Outer rotor Inner rotor Shaft Pin T Gasket Oil pump cover 7o l A lb H635 3 73
