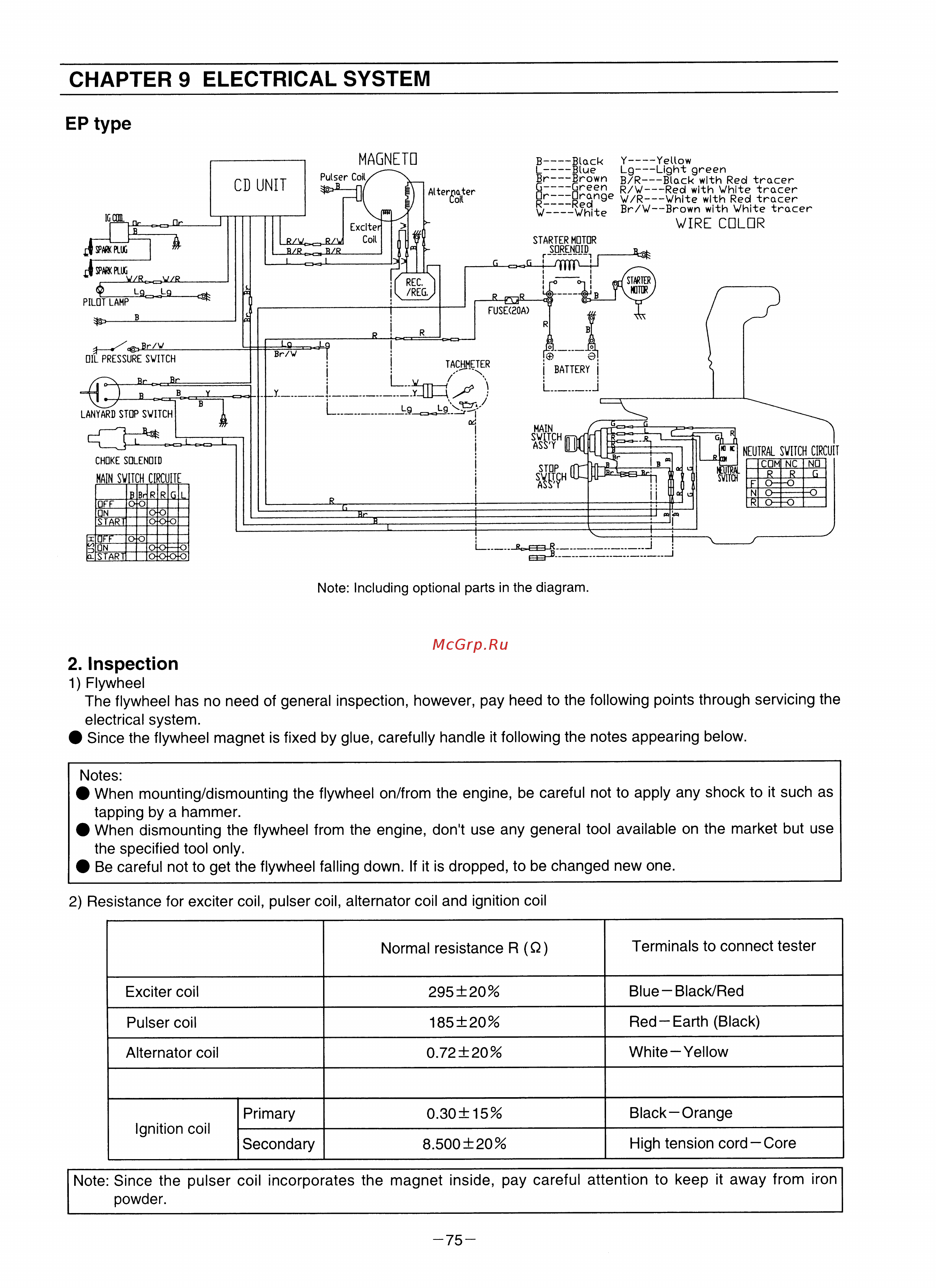

CHAPTER 9 ELECTRICAL SYSTEM EP type Note Including optional parts in the diagram 2 Inspection 1 Flywheel The flywheel has no need of general inspection however pay heed to the following points through servicing the electrical system Since the flywheel magnet is fixed by glue carefully handle it following the notes appearing below Notes When mounting dismounting the flywheel on from the engine be careful not to apply any shock to it such as tapping by a hammer When dismounting the flywheel from the engine don t use any general tool available on the market but use the specified tool only Be careful not to get the flywheel falling down If it is dropped to be changed new one 2 Resistance for exciter coil pulser coil alternator coil and ignition coil Normal resistance R Q Exciter coil 295 20 Pulser coil 185 20 Alternator coil Primary Terminals to connect tester Blue Black Red Red Earth Black 0 72 20 White Yellow 0 30 15 Black Orange Ignition coil Secondary 8 500 20 High tension cord Core Note Since the pulser coil incorporates the magnet inside pay careful attention to keep it away from iron powder 75
