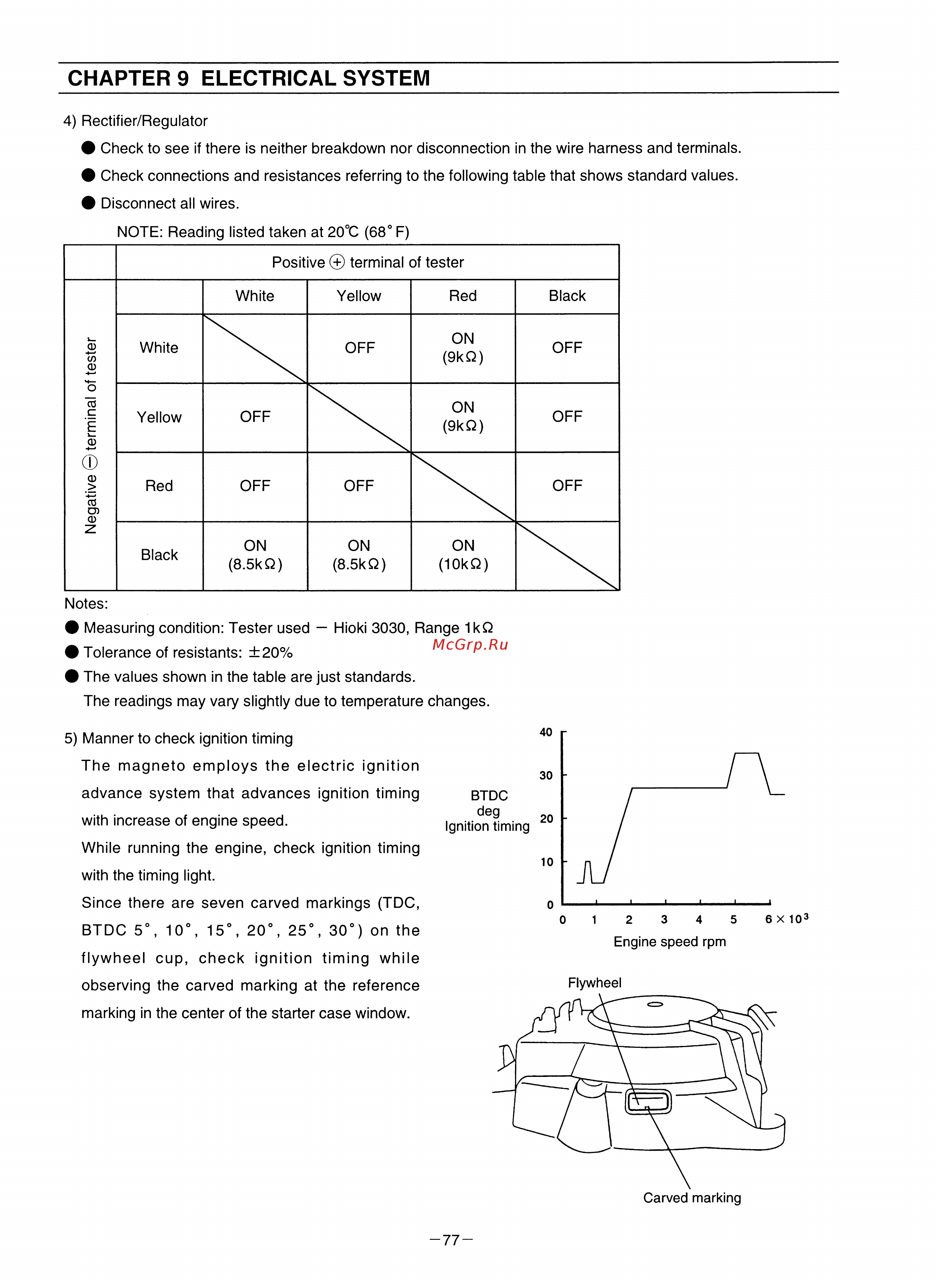

CHAPTER 9 ELECTRICAL SYSTEM 4 Rectifier Regulator Check to see if there is neither breakdown nor disconnection in the wire harness and terminals Check connections and resistances referring to the following table that shows standard values Disconnect all wires NOTE Reading listed taken at 20 C 68 F Positive terminal of tester White Negative terminal of tester White Yellow Red Black OFF ON 9kQ OFF ON 9k Q OFF Yellow OFF Red OFF OFF Black ON 8 5kQ ON 8 5kQ OFF ON 10kQ Notes Measuring condition Tester used Hioki 3030 Range 1kQ Tolerance of resistants 20 The values shown in the table are just standards The readings may vary slightly due to temperature changes 5 Manner to check ignition timing The magneto advance employs system that the electric advances ignition ignition timing with increase of engine speed BTDC deg Ignition timing While running the engine check ignition timing with the timing light Since there are seven carved markings TDC BTDC flywheel 5 10 cup 15 check 20 25 ignition 30 on timing the while observing the carved marking at the reference marking in the center of the starter case window 77
