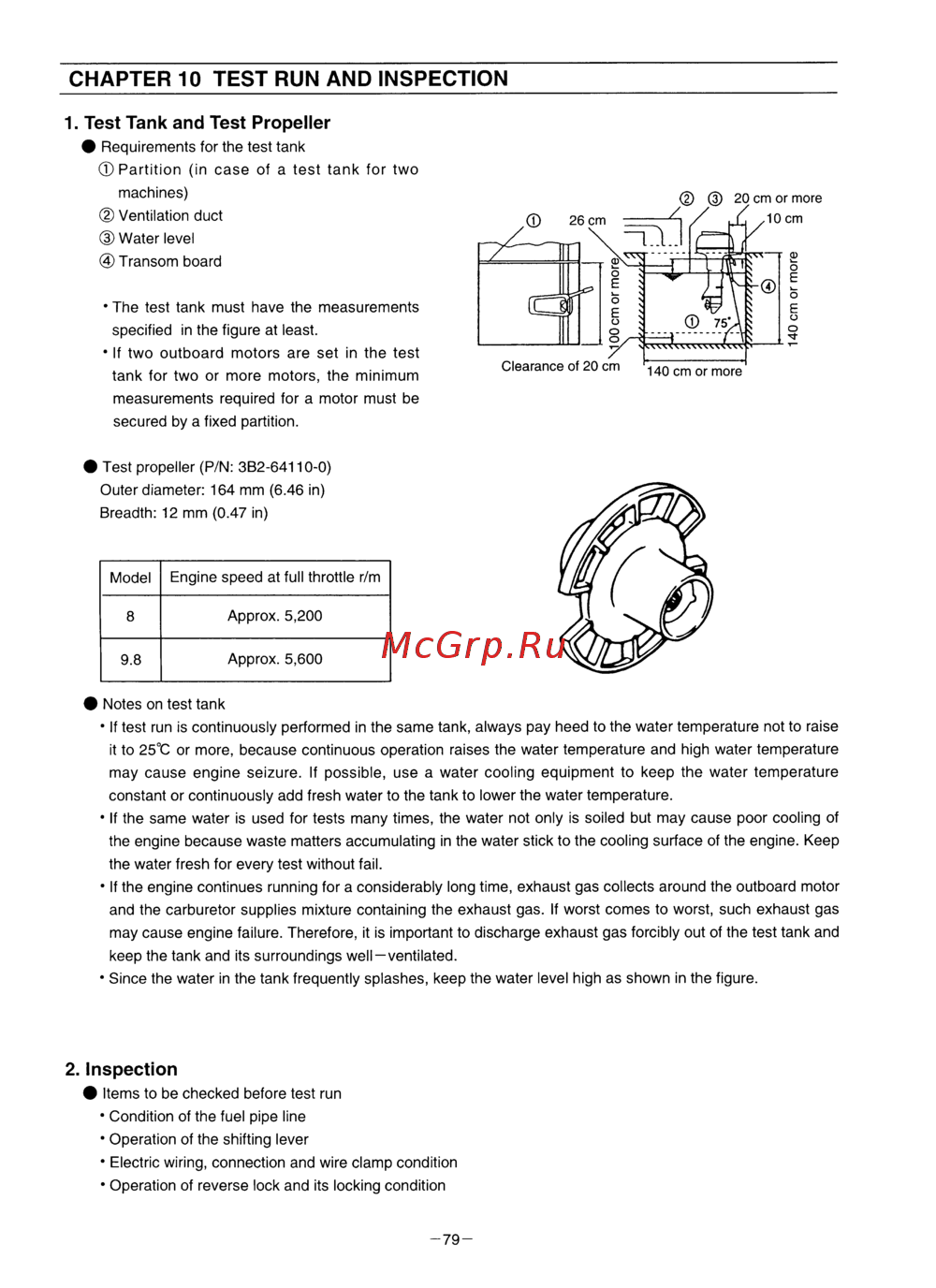

CHAPTER 10 TEST RUN AND INSPECTION 1 Test Tank and Test Propeller Requirements for the test tank Partition in case of a test tank for two machines Ventilation duct Water level Transom board The test tank must have the measurements specified in the figure at least If two outboard motors are set in the test Clearance of 20 cm tank for two or more motors the minimum 140 cm or more measurements required for a motor must be secured by a fixed partition Test propeller P N 3B2 64110 0 Outer diameter 164 mm 6 46 in Breadth 12 mm 0 47 in Model Engine speed at full throttle r m 8 Approx 5 200 9 8 Approx 5 600 Notes on test tank If test run is continuously performed in the same tank always pay heed to the water temperature not to raise it to 25 C or more because continuous operation raises the water temperature and high water temperature may cause engine seizure If possible use a water cooling equipment to keep the water temperature constant or continuously add fresh water to the tank to lower the water temperature If the same water is used for tests many times the water not only is soiled but may cause poor cooling of the engine because waste matters accumulating in the water stick to the cooling surface of the engine Keep the water fresh for every test without fail If the engine continues running for a considerably long time exhaust gas collects around the outboard motor and the carburetor supplies mixture containing the exhaust gas If worst comes to worst such exhaust gas may cause engine failure Therefore it is important to discharge exhaust gas forcibly out of the test tank and keep the tank and its surroundings well ventilated Since the water in the tank frequently splashes keep the water level high as shown in the figure 2 Inspection Items to be checked before test run Condition of the fuel pipe line Operation of the shifting lever Electric wiring connection and wire clamp condition Operation of reverse lock and its locking condition 79
