• Test tank and test propeller p.82
• Inspection p.82
• Chapter 10 test run and inspection p.82
• Idle speed and stable idling p.83
• Extraordinary noise p.83
• Engine speed at acceleration and deceleration p.83
• Cooling water discharge condition cooling water must vigorously be discharged from the water inspection p.83
• While idling the engine check the following items p.83
• Cooling water and or oil leak from parts joined spots of the engine p.83
• When any of the piston piston ring piston pin crank shaft connecting rod cylinder cam shaft rocker arm p.83
• Check the tightening condition of respective bolts and nuts after test run and additionally tighten them with the p.83
• Specified tightening torque p.83
• Chapter 10 test run and inspection p.83
• Operation of the stop switch p.83
• Break in period 10 hours p.83
• Operation of the clutch p.83
• Break in p.83
• On the lamp goes on when the lead wire of the oil pressure switch is grounded to the body p.83
• Additional tightening after test run p.83
• On off operation of the engine oil warning lamp p.83
• Off the lamp goes out as the engine starts p.83
• Note perform a break in of the engine according to the following standards p.83
• Items to be checked during test run p.83
• Inlet exhaust valve etc is replaced perform a break in of the engine for fitting the sliding surfaces p.83
• Fuel leak from parts joined spots of the engine p.83
• Tomatsu corporation p.84
• Back cover p.84

Похожие устройства

•
  Tohatsu MFS 40

  Инструкция по эксплуатации
•
  Tohatsu MFS 30

  Сервис Мануал
•
  Tohatsu MFS 30

  Каталог запчастей
•
  Tohatsu MFS 30

  Инструкция по эксплуатации
•
  Tohatsu MFS 30

  Схема электропроводки
•
  Tohatsu MFS 25

  Сервис Мануал
•
  Tohatsu MFS 25

  Каталог запчастей
•
  Tohatsu MFS 25

  Схема электропроводки
•
  Tohatsu MFS 25

  Инструкция по эксплуатации
•
  Tohatsu MFS 20

  Каталог запчастей
•
  Tohatsu MFS 20

  Схема электропроводки
•
  Tohatsu MFS 20

  Инструкция по эксплуатации

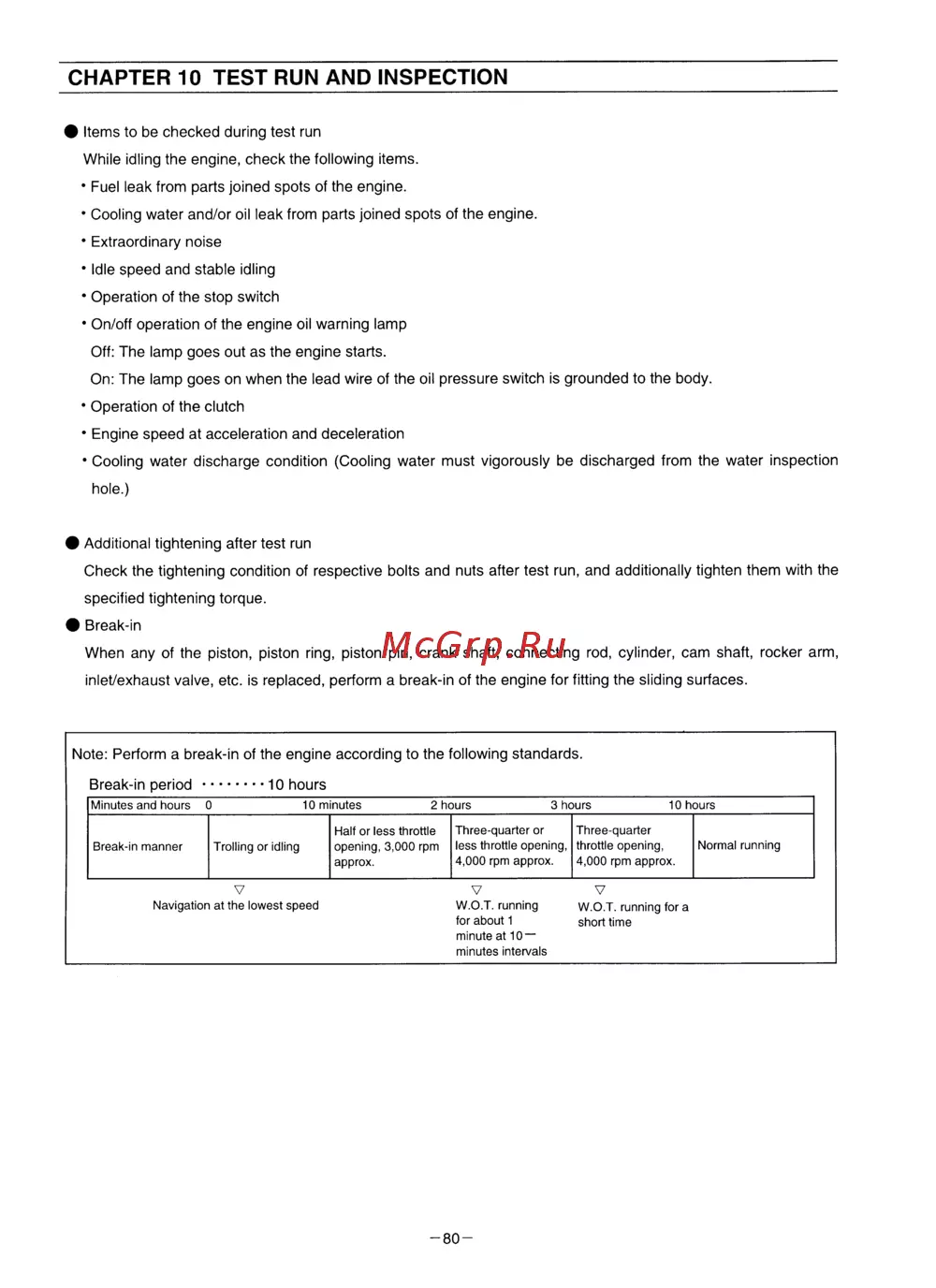

CHAPTER 10 TEST RUN AND INSPECTION Items to be checked during test run While idling the engine check the following items Fuel leak from parts joined spots of the engine Cooling water and or oil leak from parts joined spots of the engine Extraordinary noise Idle speed and stable idling Operation of the stop switch On off operation of the engine oil warning lamp Off The lamp goes out as the engine starts On The lamp goes on when the lead wire of the oil pressure switch is grounded to the body Operation of the clutch Engine speed at acceleration and deceleration Cooling water discharge condition Cooling water must vigorously be discharged from the water inspection hole Additional tightening after test run Check the tightening condition of respective bolts and nuts after test run and additionally tighten them with the specified tightening torque Break in When any of the piston piston ring piston pin crank shaft connecting rod cylinder cam shaft rocker arm inlet exhaust valve etc is replaced perform a break in of the engine for fitting the sliding surfaces Note Perform a break in of the engine according to the following standards Break in period 10 hours Minutes and hours 0 Break in manner 10 minutes Trolling or idling V Navigation at the lowest speed 2 hours Half or less throttle opening 3 000 rpm approx 3 hours 10 hours Three quarter or Three quarter less throttle opening throttle opening 4 000 rpm approx 4 000 rpm approx V W O T running for about 1 minute at 10 minutes intervals 80 V W O T running for a short time Normal running
