4
4-27
25/30 2006

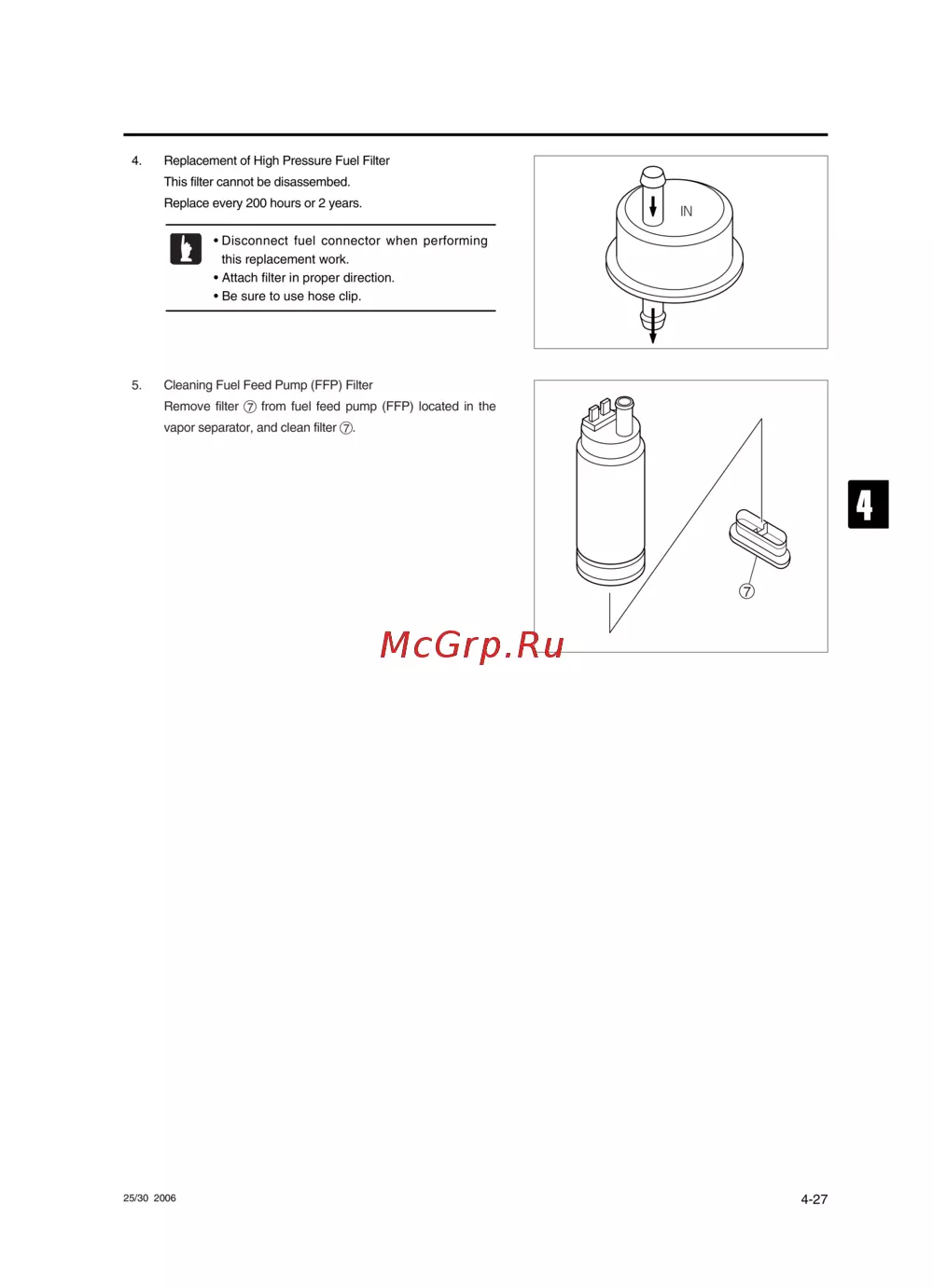

4. Replacement of High Pressure Fuel Filter
This filter cannot be disassembed.
Replace every 200 hours or 2 years.
• Disconnect fuel connector when performing
this replacement work.
• Attach filter in proper direction.
• Be sure to use hose clip.
IN
5. Cleaning Fuel Feed Pump (FFP) Filter
Remove filter 7 from fuel feed pump (FFP) located in the
vapor separator, and clean filter 7.
7
MFS25_30_ch04.qxd 06.3.9 4:35 PM ページ 27
