5-26
Power Unit
25/30 2006

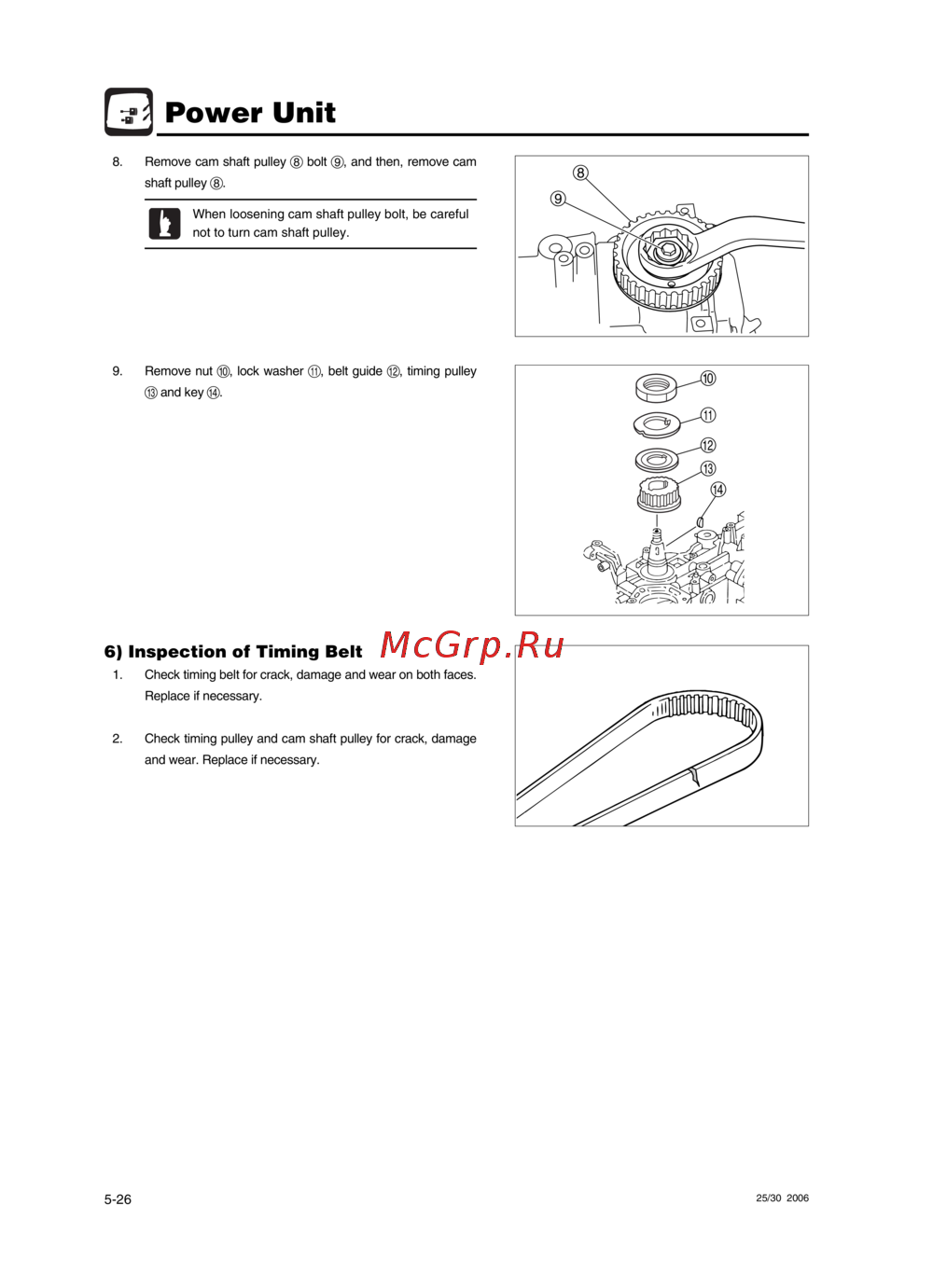

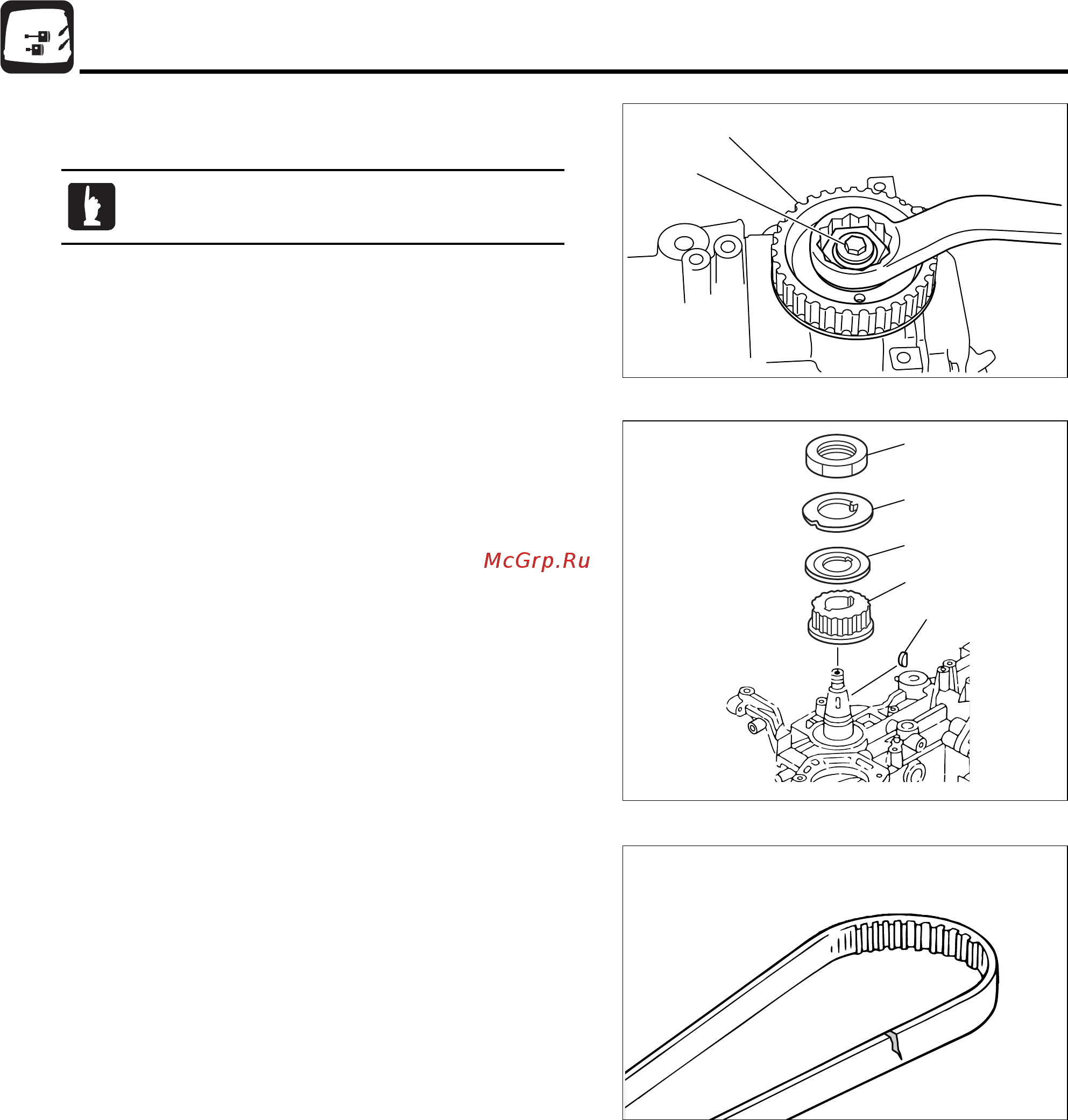

6) Inspection of Timing Belt
1. Check timing belt for crack, damage and wear on both faces.
Replace if necessary.
2. Check timing pulley and cam shaft pulley for crack, damage
and wear. Replace if necessary.
8. Remove cam shaft pulley 8 bolt 9, and then, remove cam
shaft pulley 8.
9. Remove nut 0, lock washer q, belt guide w, timing pulley
e and key r.
8
9
e
r
w
0
q
When loosening cam shaft pulley bolt, be careful
not to turn cam shaft pulley.
