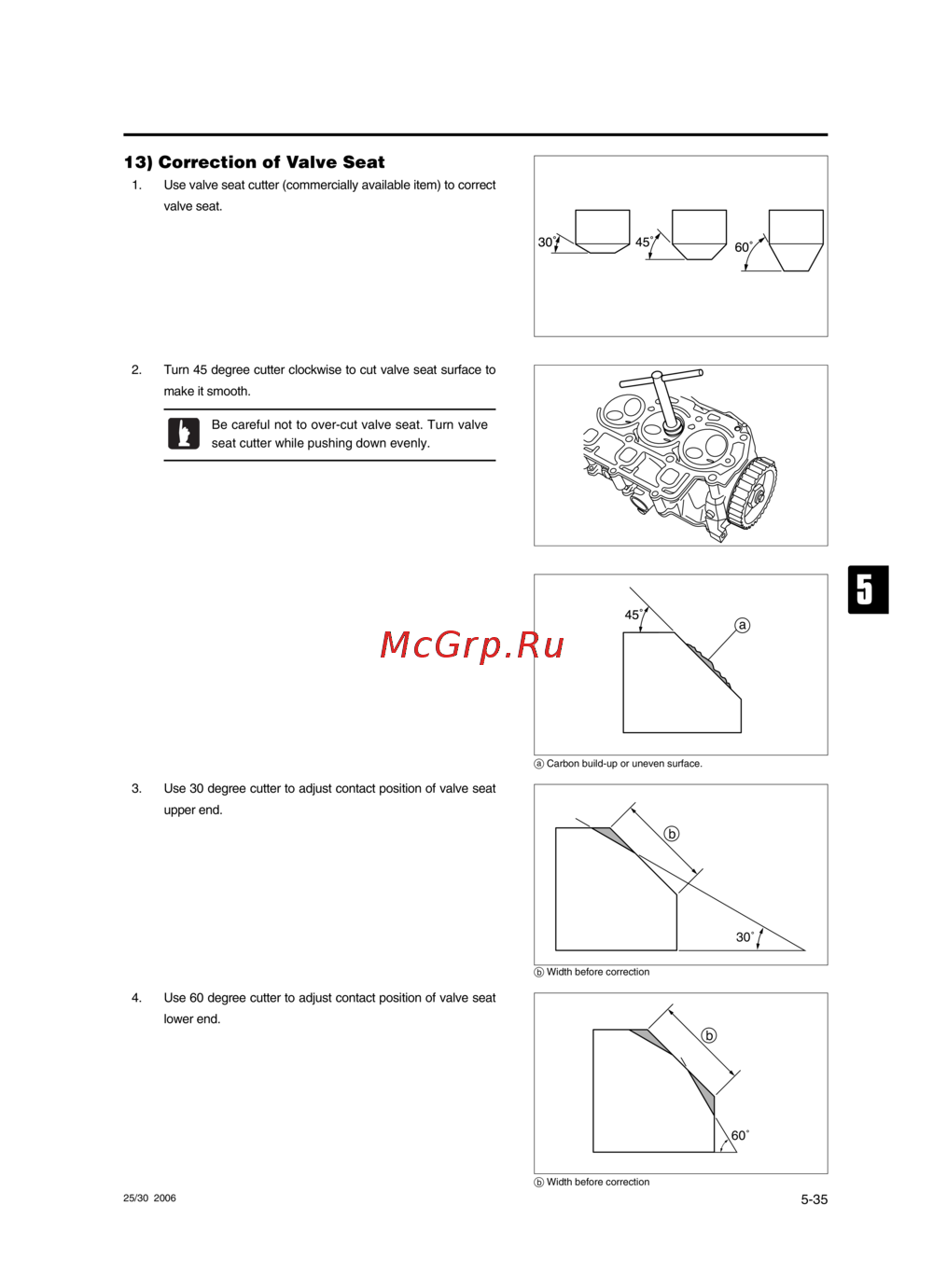

13) Correction of Valve Seat
1. Use valve seat cutter (commercially available item) to correct
valve seat.
2. Turn 45 degree cutter clockwise to cut valve seat surface to
make it smooth.
a
30˚
b
a Carbon build-up or uneven surface.
3. Use 30 degree cutter to adjust contact position of valve seat
upper end.
b Width before correction
Be careful not to over-cut valve seat. Turn valve
seat cutter while pushing down evenly.
4. Use 60 degree cutter to adjust contact position of valve seat
lower end.
60˚
b
b Width before correction
MFS25_30_ch05.qxd 06.3.9 4:48 PM ページ 35
