Tohatsu MFS 30 — guidelines for Measuring Cylinder Head and Cam Shaft Specifications [154/319]

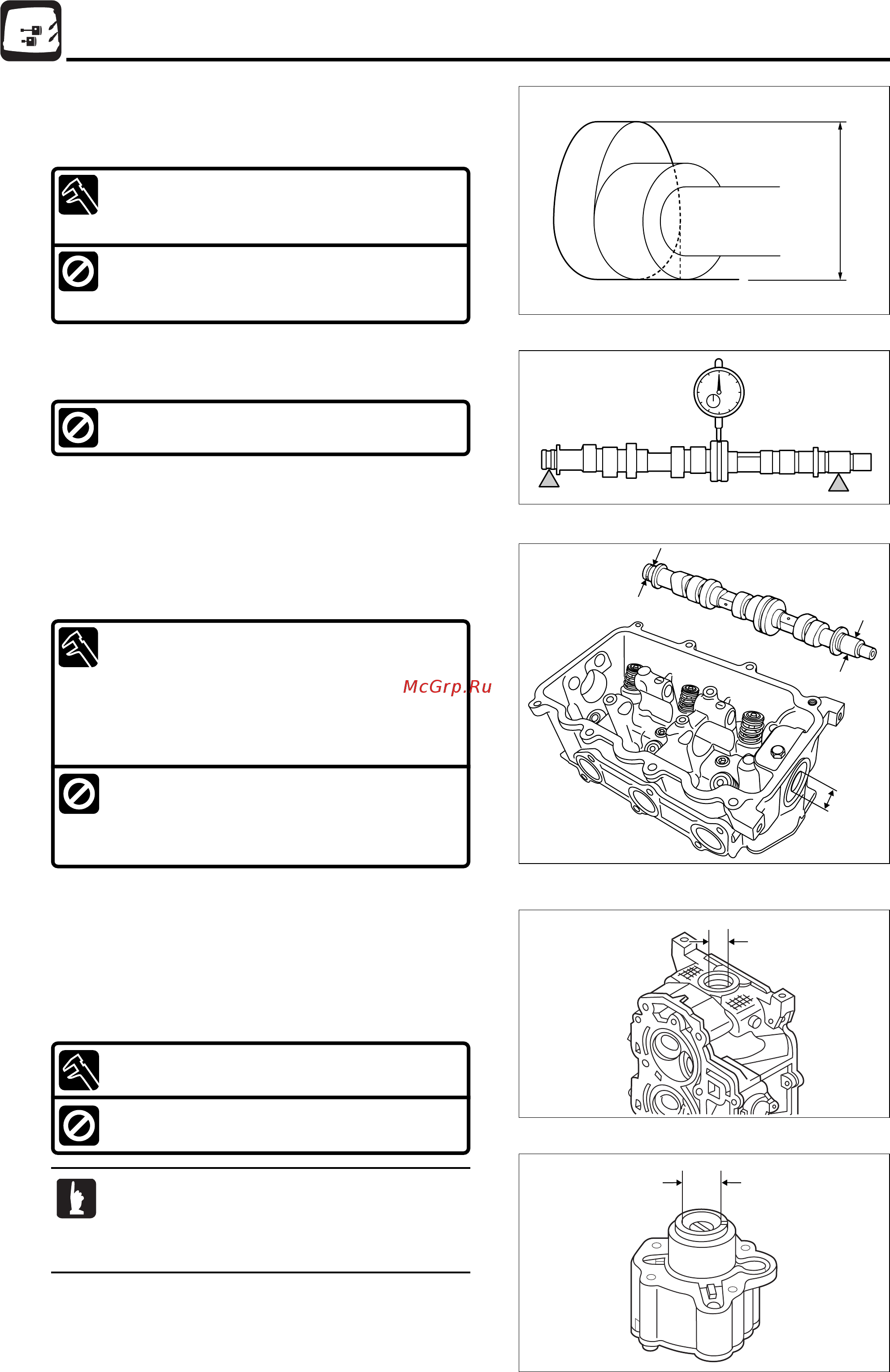

![Tohatsu MFS 30 [154/319] Power unit](/views2/1240939/page154/bg9a.png)
4. Measure cylinder head journal inner diameter e and oil
pump journal inner diameter f. Obtain oil clearances. They
are calculated as e – c and f – d respectively. Replace
cam shaft, cylinder head or oil pump if either of the
clearances is over specified value.
5-38
Power Unit
25/30 2006
e
a
15) Inspection of Cam Shaft
1. Measure cam height. Replace if the height is less than
specified value.
Cam Shaft Journal Outer Diameter c : Standard Value
17.98 mm ( 0.7079 in )
Cam Shaft Journal Outer Diameter d : Standard Value
15.97 mm ( 0.6287 in )
Cylinder Head Journal Inner Diameter e (Upper) :
18.010 to 18.025 mm ( 0.7091 to 0.7096 in )
Pulley Side Bearing Outer Diameter c :
17.95 mm ( 0.7067 in )
Oil Pump Side Bearing Outer Diameter d :
15.95 mm ( 0.6280 in )
2. Measure cam shaft runout. Replace if the runout is over
specified value.
Cam Shaft Runout Limit :
0.05mm ( 0.0020 in )
3. Measure cam shaft journal outer diameters c and d.
Replace cam shaft or cylinder head if either of the diameters
is less than specified value.
e
d
c
Oil Clearance : Standard Value
0.02 to 0.05 mm ( 0.0008 to 0.0020 in )
Functional Limit :
0.09 mm ( 0.0035 in )
Cam Height at Both Intake and Exhaust Sides a : Standard Value
25 : 23.87 mm ( 0.9498 in )
30 : 24.28 mm ( 0.9559 in )
Functional Limit : Cam Height at Both Intake and Exhaust Sides a
25 : 23.60 mm ( 0.9291 in )
30 : 24.00 mm ( 0.9449 in )
f
If oil clearance is over functional limit, replace
any of cylinder head, cam shaft and oil pump or
all of them as a set, and check that the
clearance is within specified range.
