5
5-39
25/30 2006
1
2

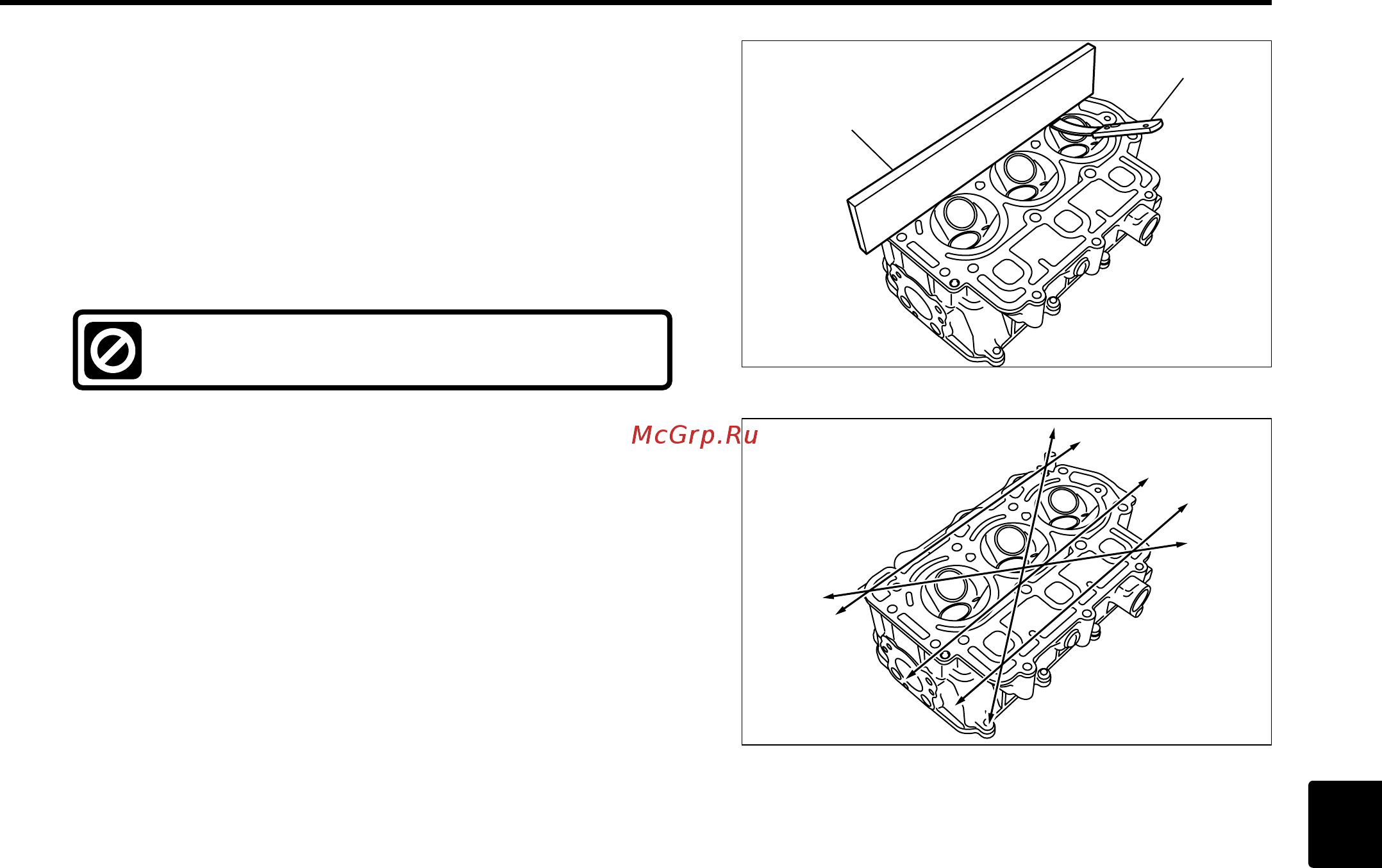

16) Inspection of Cylinder Head
1. Remove carbon build-up of combustion chamber, and check
for deterioration.
2. Use straight edge 1 and thickness gauge 2 to check
distortion of cylinder head in the directions shown. Replace if
the distortion is over specified value.
Cylinder Head Distortion Limit :
0.10 mm ( 0.004 in )
MFS25_30_ch05.qxd 06.3.9 4:48 PM ページ 39
