![Tohatsu MFS 25 [161/319] Disassembly of cylinder block](/views2/1240939/page161/bga1.png)
5
5-45
25/30 2006

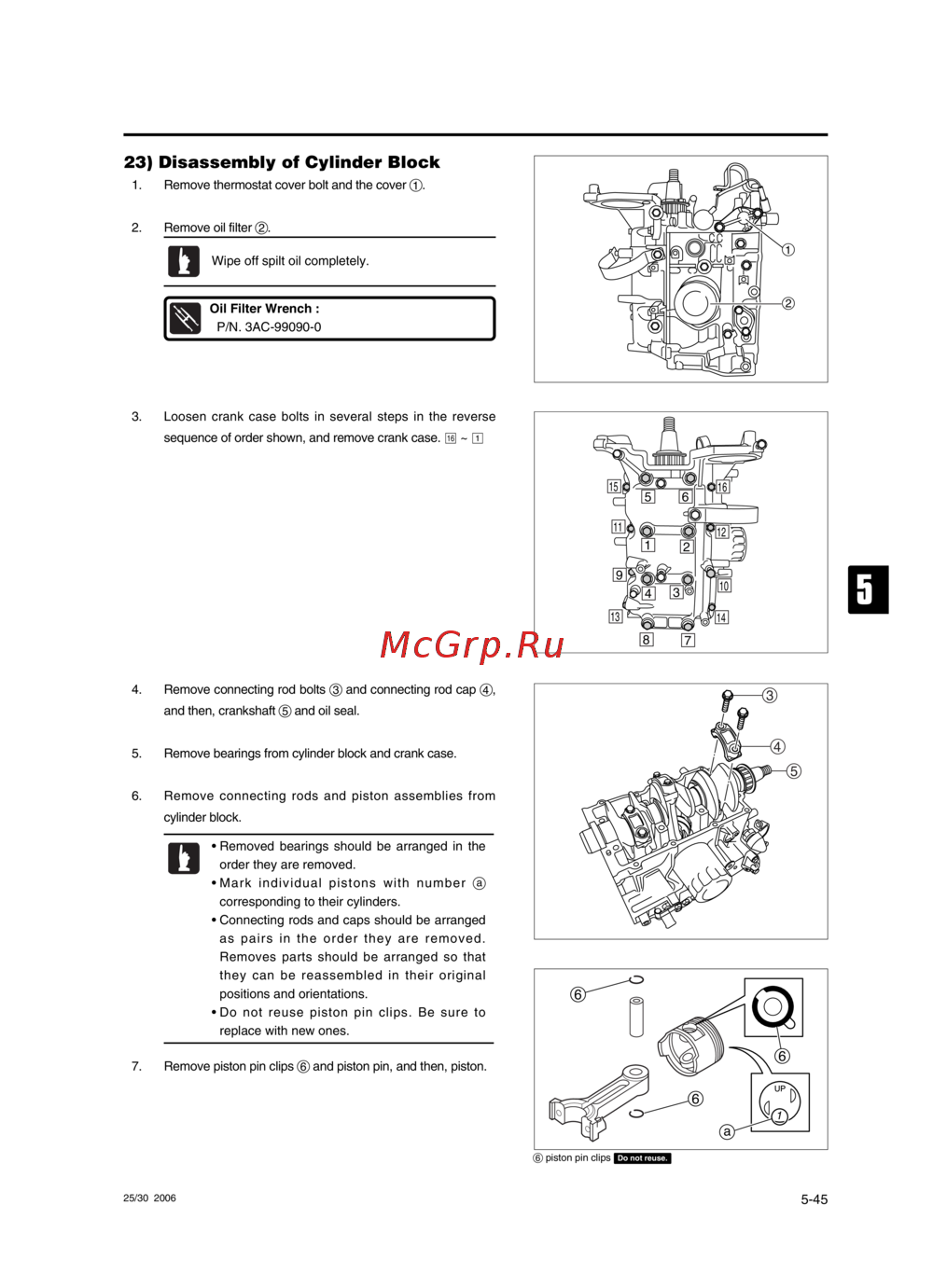

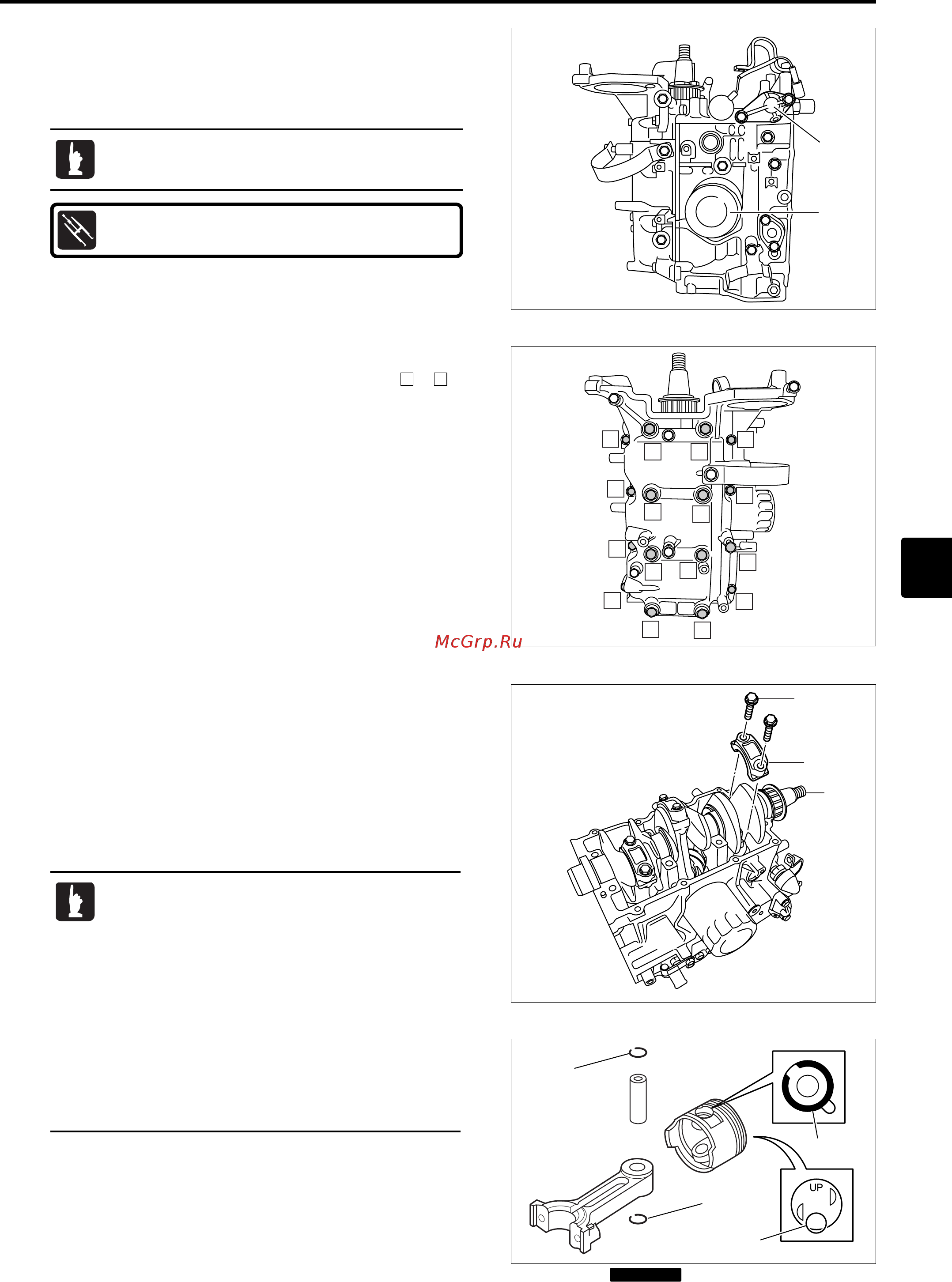

23) Disassembly of Cylinder Block
1. Remove thermostat cover bolt and the cover 1.
2. Remove oil filter 2.
1
2
1
4
9
8
10
14
12
16
15
11
13
5
6
2
3
7
5
4
3
1
a
6
6
6
Oil Filter Wrench :
P/N. 3AC-99090-0
3. Loosen crank case bolts in several steps in the reverse
sequence of order shown, and remove crank case. ~
1
16
4. Remove connecting rod bolts 3 and connecting rod cap 4,
and then, crankshaft 5 and oil seal.
5. Remove bearings from cylinder block and crank case.
6. Remove connecting rods and piston assemblies from
cylinder block.
7. Remove piston pin clips 6 and piston pin, and then, piston.
Wipe off spilt oil completely.
• Removed bearings should be arranged in the
order they are removed.
• Mark individual pistons with number a
corresponding to their cylinders.
• Connecting rods and caps should be arranged
as pairs in the order they are removed.
Removes parts should be arranged so that
they can be reassembled in their original
positions and orientations.
• Do not reuse piston pin clips. Be sure to
replace with new ones.
6 piston pin clips
Do not reuse.
MFS25_30_ch05.qxd 06.3.9 4:49 PM ページ 45
