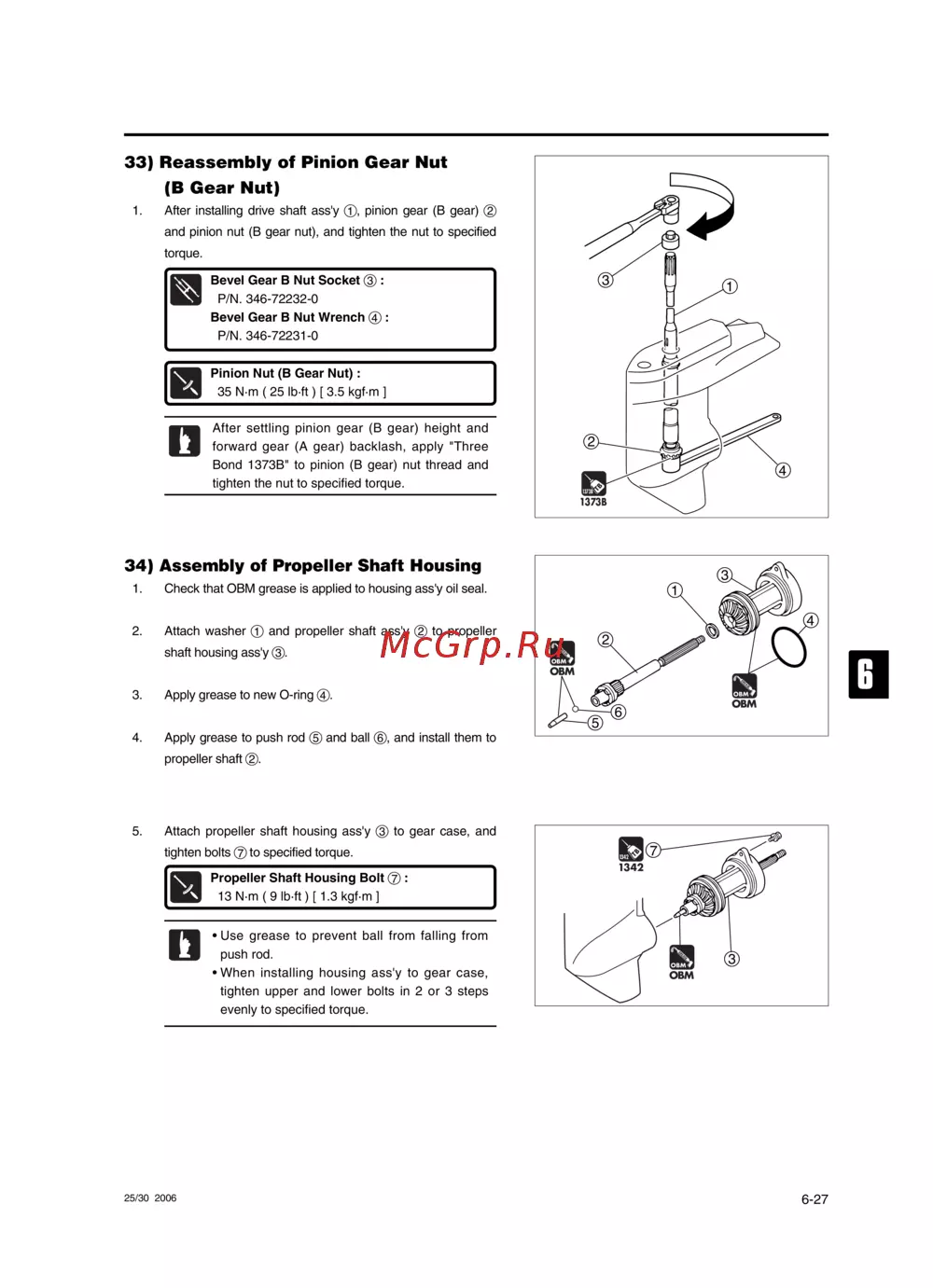

33) Reassembly of Pinion Gear Nut
(B Gear Nut)
1. After installing drive shaft ass'y 1, pinion gear (B gear) 2
and pinion nut (B gear nut), and tighten the nut to specified
torque.
Bevel Gear B Nut Socket 3 :
P/N. 346-72232-0
Bevel Gear B Nut Wrench 4 :
P/N. 346-72231-0
Pinion Nut (B Gear Nut) :
35 N·m ( 25 lb·ft ) [ 3.5 kgf·m ]
3
4
1
2
TB
1373B1373B1373B
1373B
2
5
6
1
3
4
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
34)
Assembly of Propeller Shaft Housing
1. Check that OBM grease is applied to housing ass'y oil seal.
2. Attach washer 1 and propeller shaft ass'y 2 to propeller
shaft housing ass'y 3.
3. Apply grease to new O-ring 4.
4. Apply grease to push rod 5 and ball 6, and install them to
propeller shaft 2.
After settling pinion gear (B gear) height and
forward gear (A gear) backlash, apply "Three
Bond 1373B" to pinion (B gear) nut thread and
tighten the nut to specified torque.
3
7
TB
13421342
1342
GREASE
OBMOBM
OBM
5. Attach propeller shaft housing ass'y 3 to gear case, and
tighten bolts 7 to specified torque.
Propeller Shaft Housing Bolt 7 :
13 N·m ( 9 lb·ft ) [ 1.3 kgf·m ]
• Use grease to prevent ball from falling from
push rod.
• When installing housing ass'y to gear case,
tighten upper and lower bolts in 2 or 3 steps
evenly to specified torque.
