Tohatsu MFS 30 [237/319] Installation of ptt pump and motor
![Tohatsu MFS 30 [237/319] Installation of ptt pump and motor](/views2/1240939/page237/bged.png)
7-27
25/30 2006
7
22) Inspection of Valve
1. Check tilt rod ass'y 1 check valve and valves for dirt and
sediments. Clean if necessary.
2
4
5
3
1

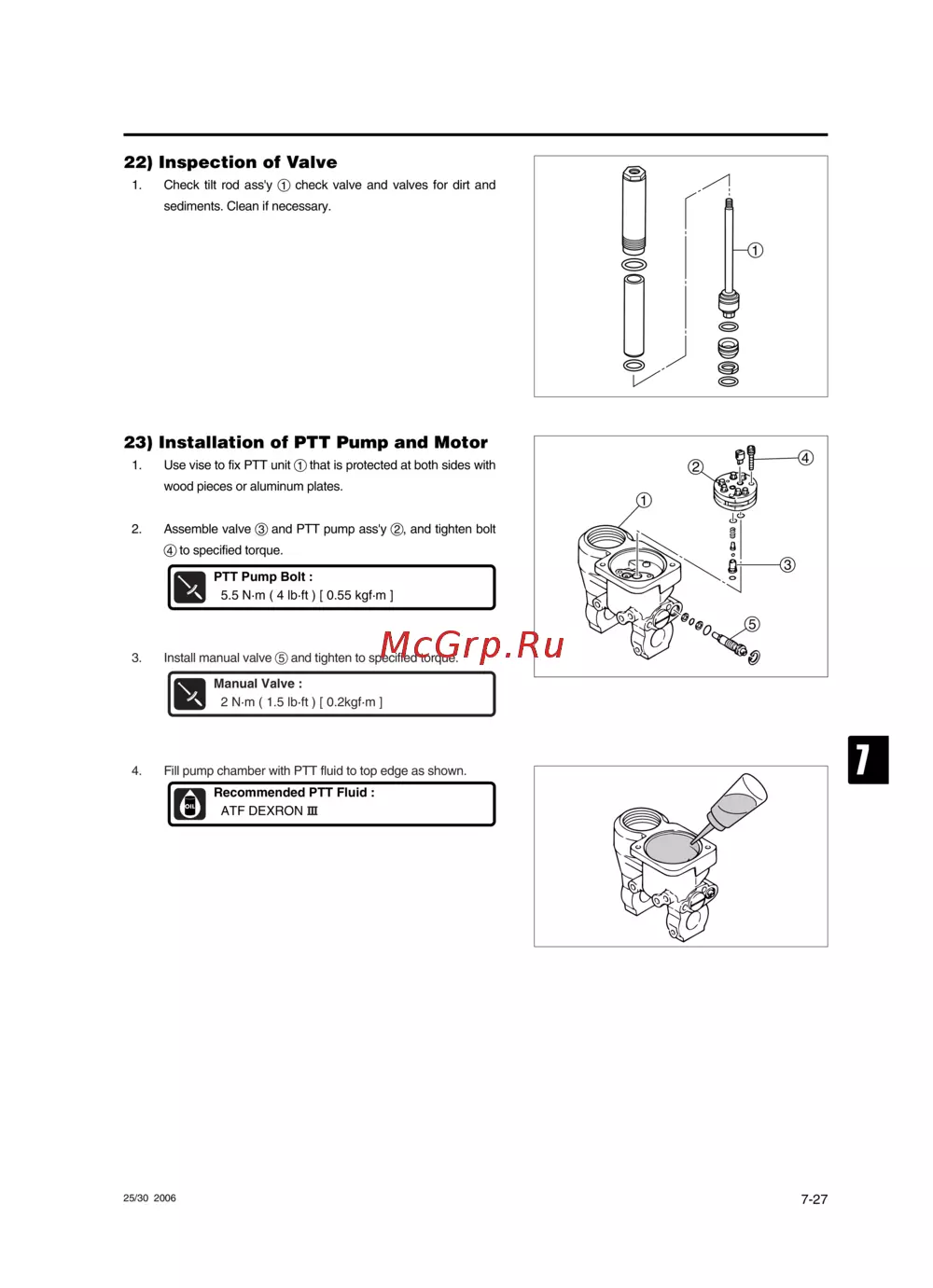

23) Installation of PTT Pump and Motor
1. Use vise to fix PTT unit 1 that is protected at both sides with
wood pieces or aluminum plates.
2. Assemble valve 3 and PTT pump ass'y 2, and tighten bolt
4 to specified torque.
PTT Pump Bolt :
5.5 N·m ( 4 lb·ft ) [ 0.55 kgf·m ]
Recommended PTT Fluid :
ATF DEXRON
III
OIL
3. Install manual valve 5 and tighten to specified torque.
4. Fill pump chamber with PTT fluid to top edge as shown.
Manual Valve :
2 N·m ( 1.5 lb·ft ) [ 0.2kgf·m ]
1
