![Tohatsu MFS 30 [249/319] Electrical component layout port side view](/img/pdf.png)
Tohatsu MFS 30 [249/319] Electrical component layout port side view
![Tohatsu MFS 30 [249/319] Electrical component layout port side view](/views2/1240939/page249/bgf9.png)
8
8-3
25/30 2006
5
1
2
3
4

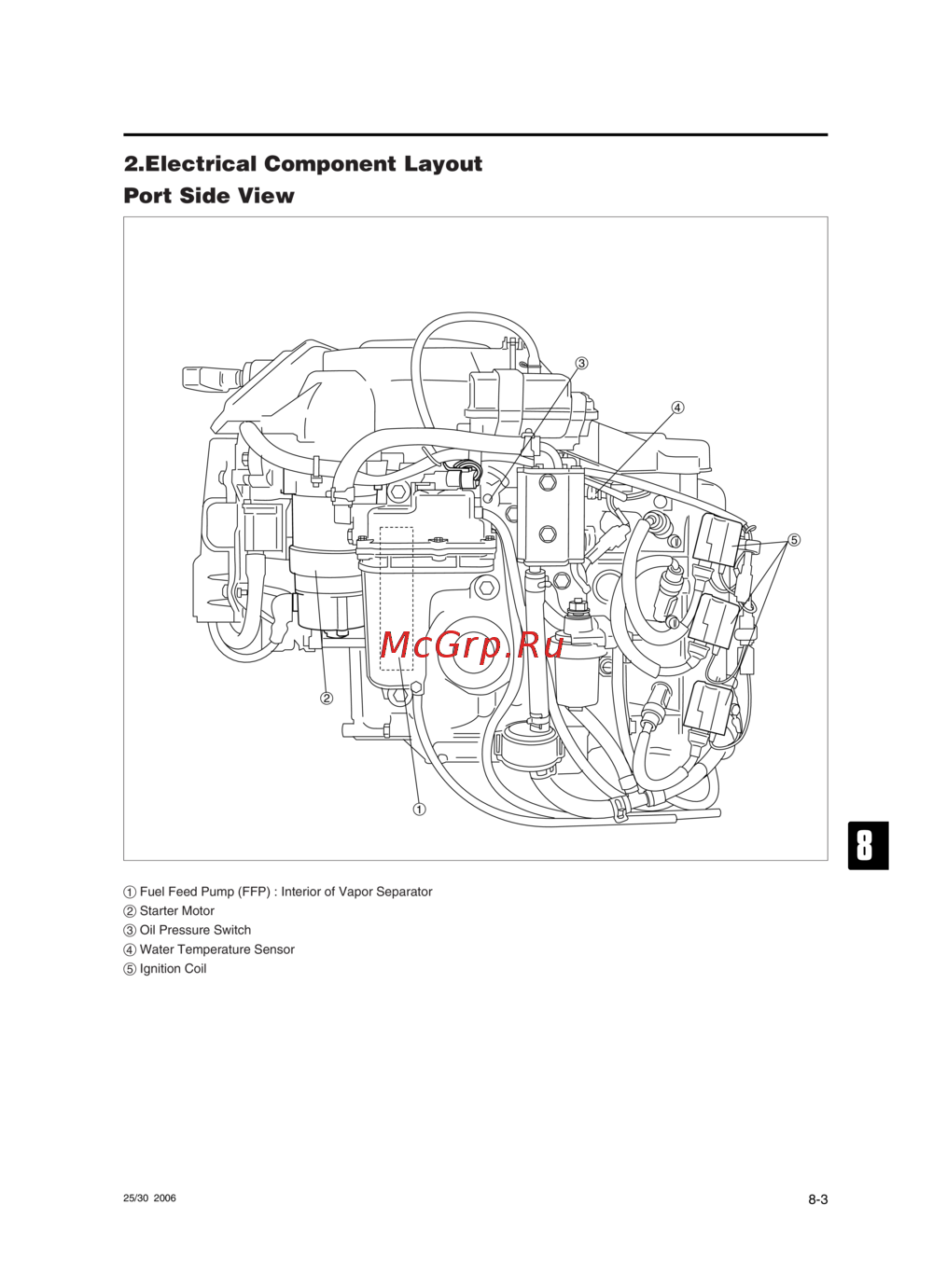

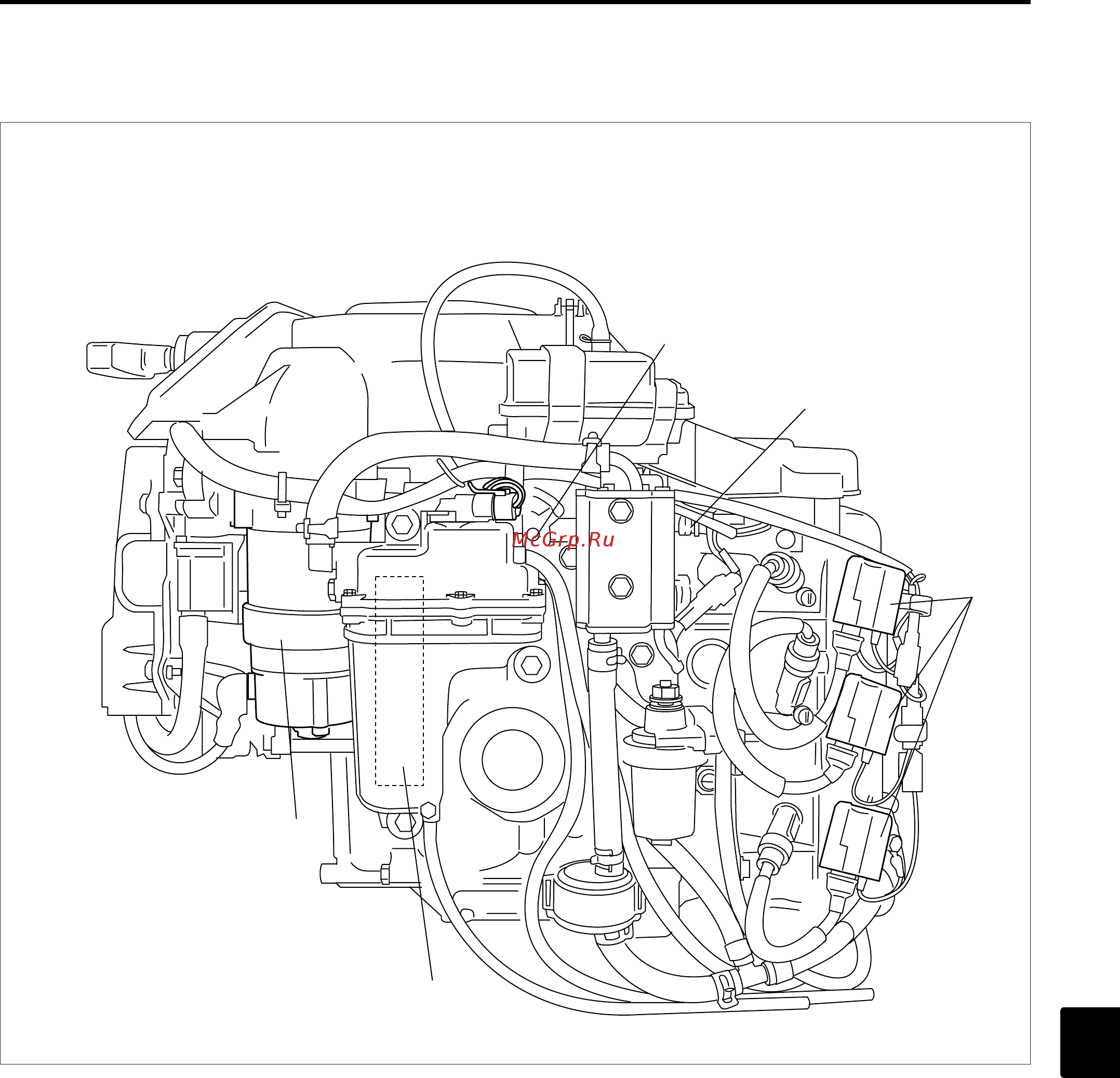

1 Fuel Feed Pump (FFP) : Interior of Vapor Separator
2 Starter Motor
3 Oil Pressure Switch
4 Water Temperature Sensor
5 Ignition Coil
2.Electrical Component Layout
Port Side View
