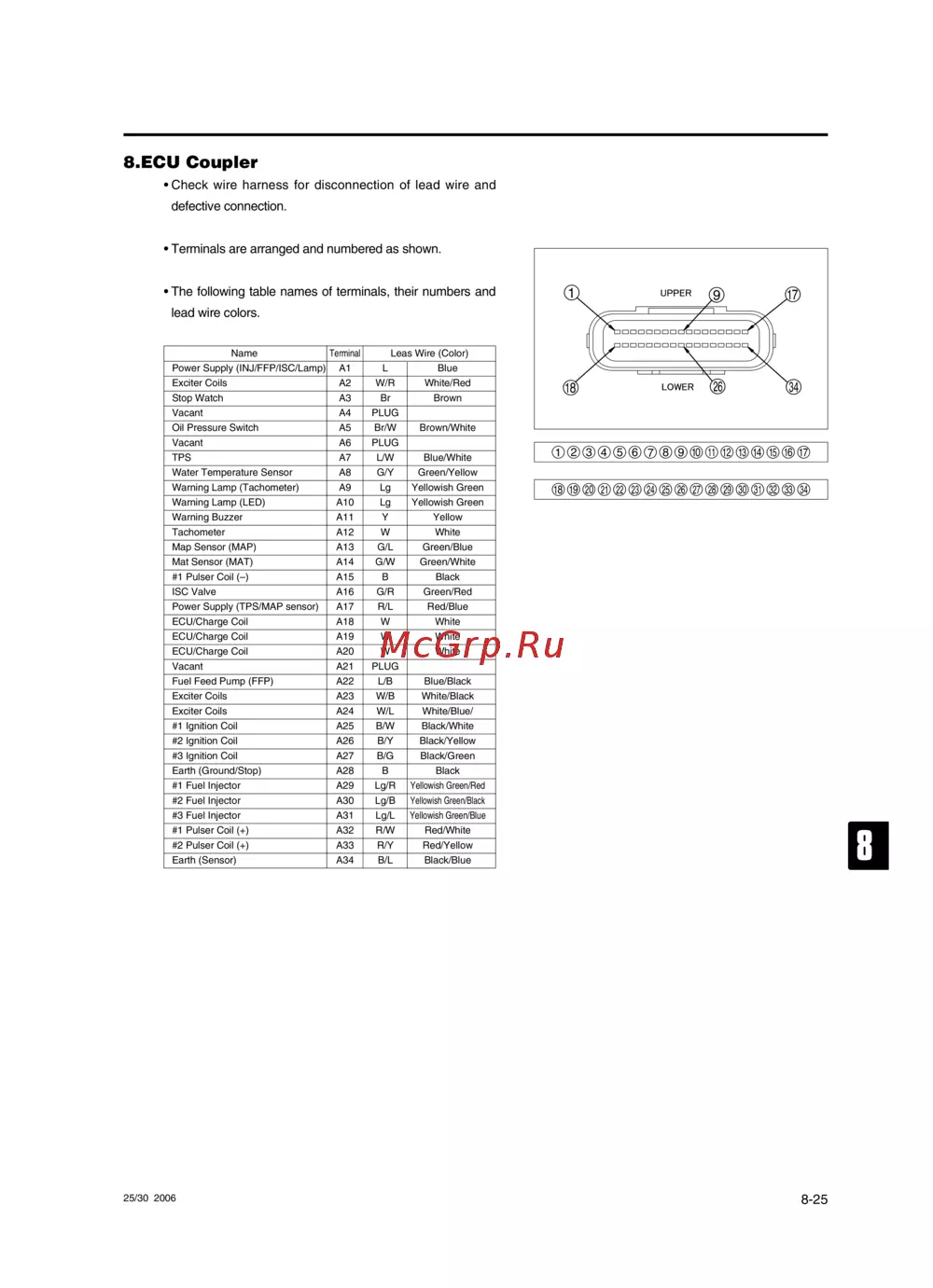

8.ECU Coupler
• Check wire harness for disconnection of lead wire and
defective connection.
• Terminals are arranged and numbered as shown.
• The following table names of terminals, their numbers and
lead wire colors.
1
9
u
i
h
v
Name
Terminal
Leas Wire (Color)
Power Supply (INJ/FFP/ISC/Lamp) A1 L Blue
Exciter Coils A2 W/R White/Red
Stop Watch A3 Br Brown
Vacant A4 PLUG
Oil Pressure Switch A5 Br/W Brown/White
Vacant A6 PLUG
TPS A7 L/W Blue/White
Water Temperature Sensor A8 G/Y Green/Yellow
Warning Lamp (Tachometer) A9 Lg Yellowish Green
Warning Lamp (LED) A10 Lg Yellowish Green
Warning Buzzer A11 Y Yellow
Tachometer A12 W White
Map Sensor (MAP) A13 G/L Green/Blue
Mat Sensor (MAT) A14 G/W Green/White
#1 Pulser Coil (–) A15 B Black
ISC Valve A16 G/R Green/Red
Power Supply (TPS/MAP sensor) A17 R/L Red/Blue
ECU/Charge Coil A18 W White
ECU/Charge Coil A19 W White
ECU/Charge Coil A20 W White
Vacant A21 PLUG
Fuel Feed Pump (FFP) A22 L/B Blue/Black
Exciter Coils A23 W/B White/Black
Exciter Coils A24 W/L White/Blue/
#1 Ignition Coil A25 B/W Black/White
#2 Ignition Coil A26 B/Y Black/Yellow
#3 Ignition Coil A27 B/G Black/Green
Earth (Ground/Stop) A28 B Black
#1 Fuel Injector A29 Lg/R
Yellowish Green/Red
#2 Fuel Injector A30 Lg/B
Yellowish Green/Black
#3 Fuel Injector A31 Lg/L
Yellowish Green/Blue
#1 Pulser Coil (+) A32 R/W Red/White
#2 Pulser Coil (+) A33 R/Y Red/Yellow
Earth (Sensor) A34 B/L Black/Blue
