![Tohatsu MFS 30 [281/319] State 2](/views2/1240939/page281/bg119.png)
9
9-9
25/30 2006
Normal?
Normal?
Repair or replace
defective parts.
Repair or replace
defective parts.
Check throttle valve for bend,
and shaft if it is seized.
Normal?
Check compression pressure.
Replace throttle body.
Normal?
Check ignition system,
fuel system, lubrication
system and/or cooling
system.
Check valve clearance, or
disassemble engine and
check.
YES
YES
NO
NO
NO
NO
YES
YES
Check throttle position sensor
and ISC valve connectors for
connections.
Check battery cables for defective
contact, and ground lead wire
securing bolt for looseness or
disconnection.

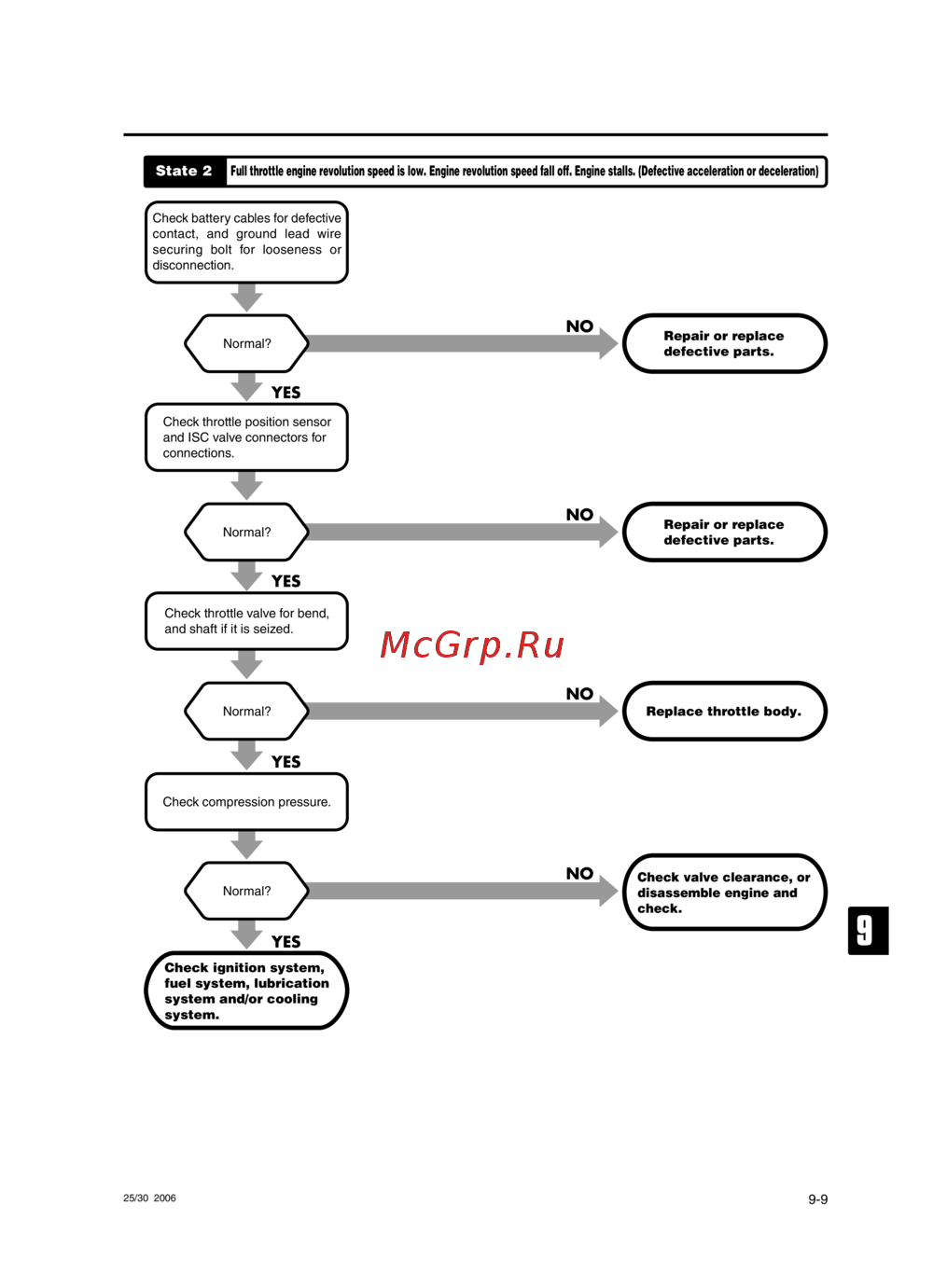

State 2
Full throttle engine revolution speed is low. Engine revolution speed fall off. Engine stalls. (Defective acceleration or deceleration)
MFS25_30_ch09.qxd 06.3.9 5:02 PM ページ 9
