Tohatsu MFS 30 [285/319] Cooling system
![Tohatsu MFS 30 [285/319] Cooling system](/views2/1240939/page285/bg11d.png)
9
9-13
25/30 2006
NO
NO
NO
NO
YES
YES
YES
YES
Measure water temperature
sensor resistance.
Check water pump.
Normal?
Normal?
Replace water
temperature sensor.
Check cooling water passage
for clogging or leak.
Check thermostat.
Clean or replace cooling
water passage.
Normal?
Replace thermostat.
Normal?
Replace water pump.
Check ignition system,
fuel system and/or
lubrication system.

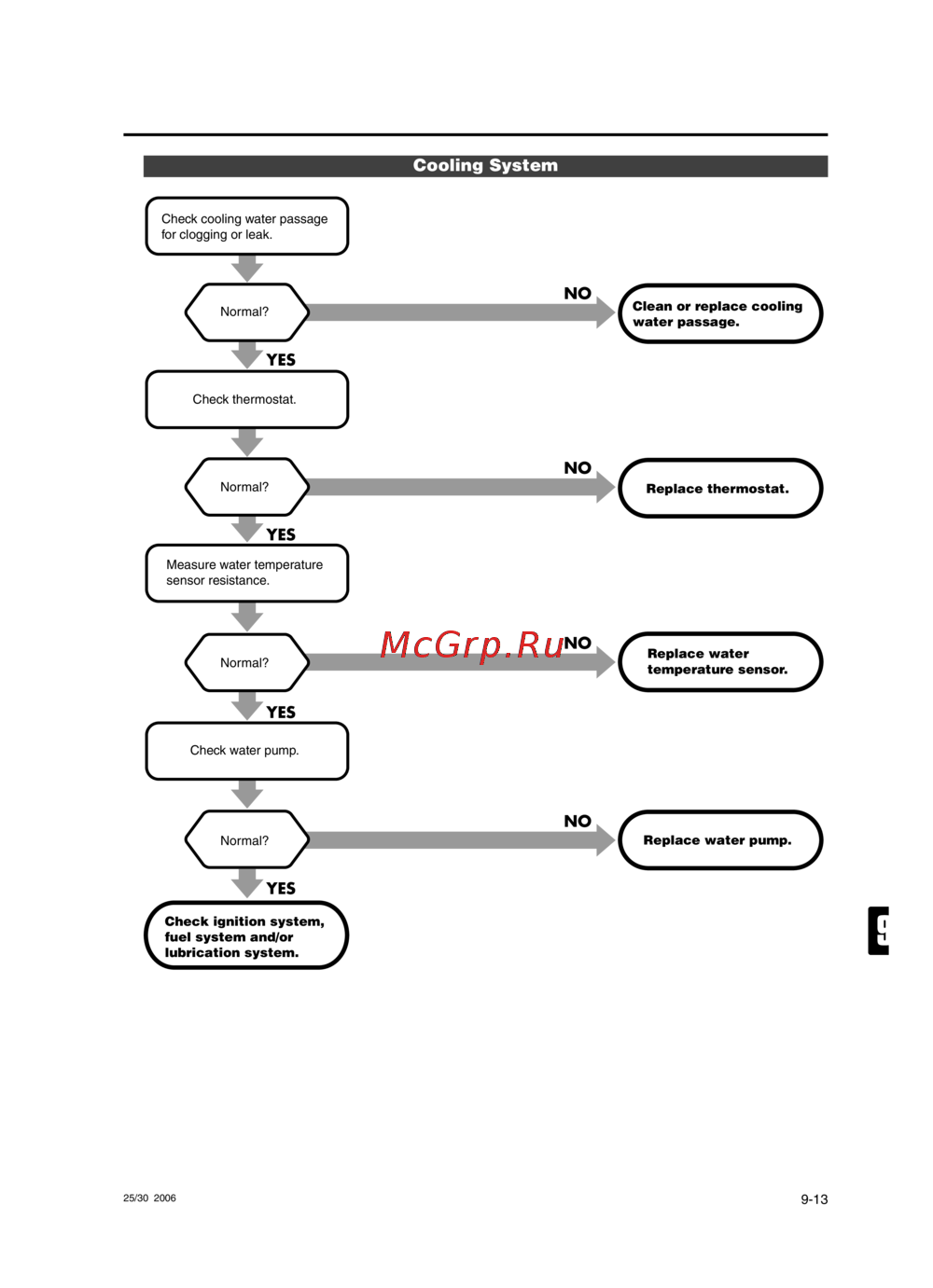

Cooling System
MFS25_30_ch09.qxd 06.3.9 5:02 PM ページ 13
