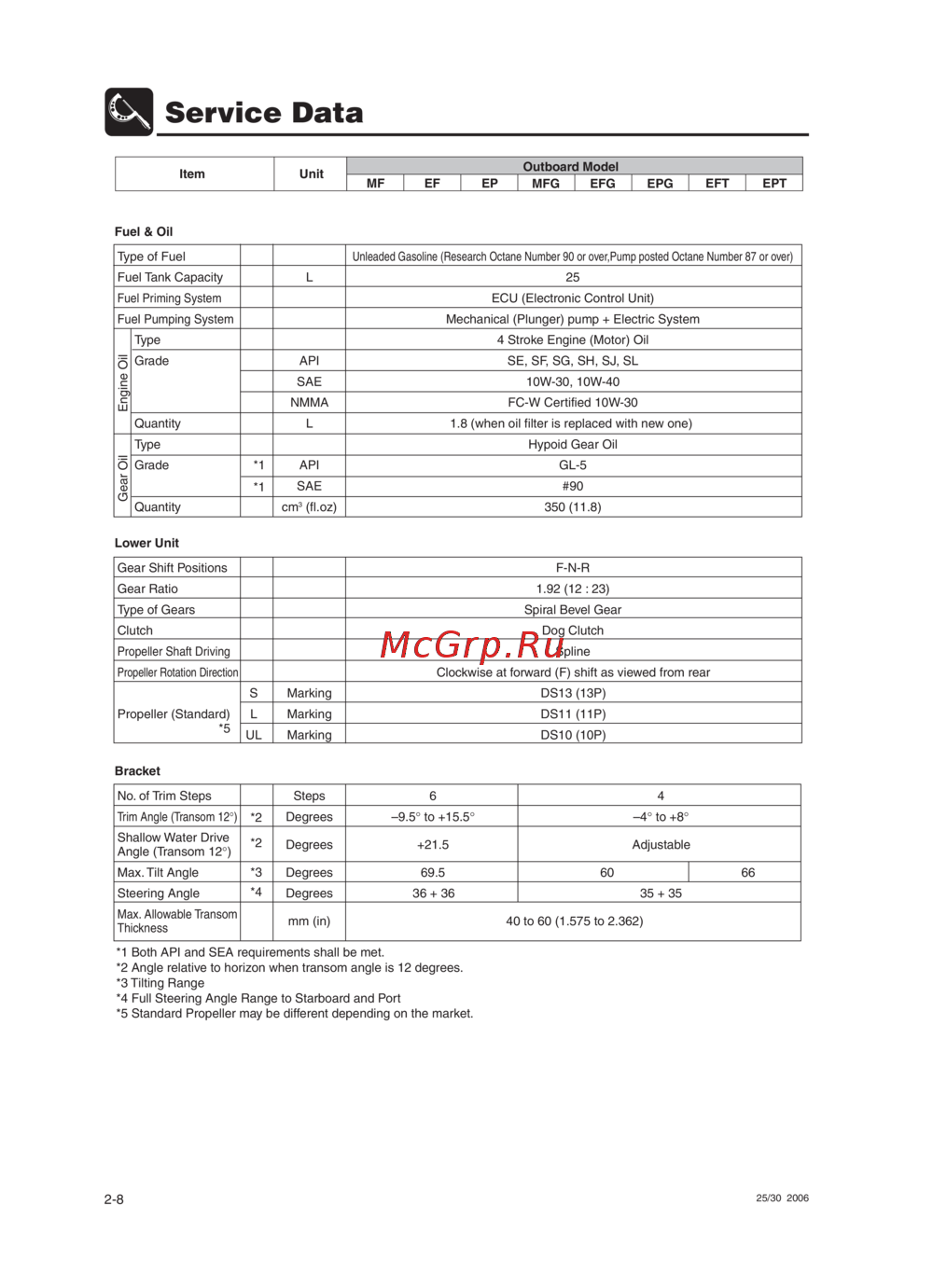

2-8
Service Data
25/30 2006
Fuel & Oil
Type of Fuel
Unleaded Gasoline (Research Octane Number 90 or over,Pump posted Octane Number 87 or over)
Fuel Tank Capacity L 25
Fuel Priming System
ECU (Electronic Control Unit)
Fuel Pumping System
Mechanical (Plunger) pump + Electric System
Type 4 Stroke Engine (Motor) Oil
Grade API SE, SF, SG, SH, SJ, SL
SAE 10W-30, 10W-40
NMMA FC-W Certified 10W-30
Quantity L 1.8 (when oil filter is replaced with new one)
Type Hypoid Gear Oil
Grade API GL-5
SAE #90
Quantity cm
3
(fl.oz) 350 (11.8)
Lower Unit
Gear Shift Positions F-N-R
Gear Ratio 1.92 (12 : 23)
Type of Gears Spiral Bevel Gear
Clutch Dog Clutch
Propeller Shaft Driving
Spline
Propeller Rotation Direction
Clockwise at forward (F) shift as viewed from rear
S Marking DS13 (13P)
Propeller (Standard) L Marking DS11 (11P)
UL Marking DS10 (10P)
Bracket
No. of Trim Steps Steps 6 4
Tr im Angle (Transom 12°)
Degrees –9.5° to +15.5° –4° to +8°
Shallow Water Drive
Angle (Transom 12°)
Degrees +21.5 Adjustable
Max. Tilt Angle Degrees 69.5 60 66
Steering Angle Degrees 36 + 36 35 + 35
Max. Allowable Transom
Thickness
mm (in) 40 to 60 (1.575 to 2.362)
Item Unit
MF EF EP EFT EPT
Outboard Model
*1 Both API and SEA requirements shall be met.
*2 Angle relative to horizon when transom angle is 12 degrees.
*3 Tilting Range
*4 Full Steering Angle Range to Starboard and Port
*5 Standard Propeller may be different depending on the market.
*2
*2
*3
*4
*5
*1
*1
MFG EFG EPG
Engine OilGear Oil
