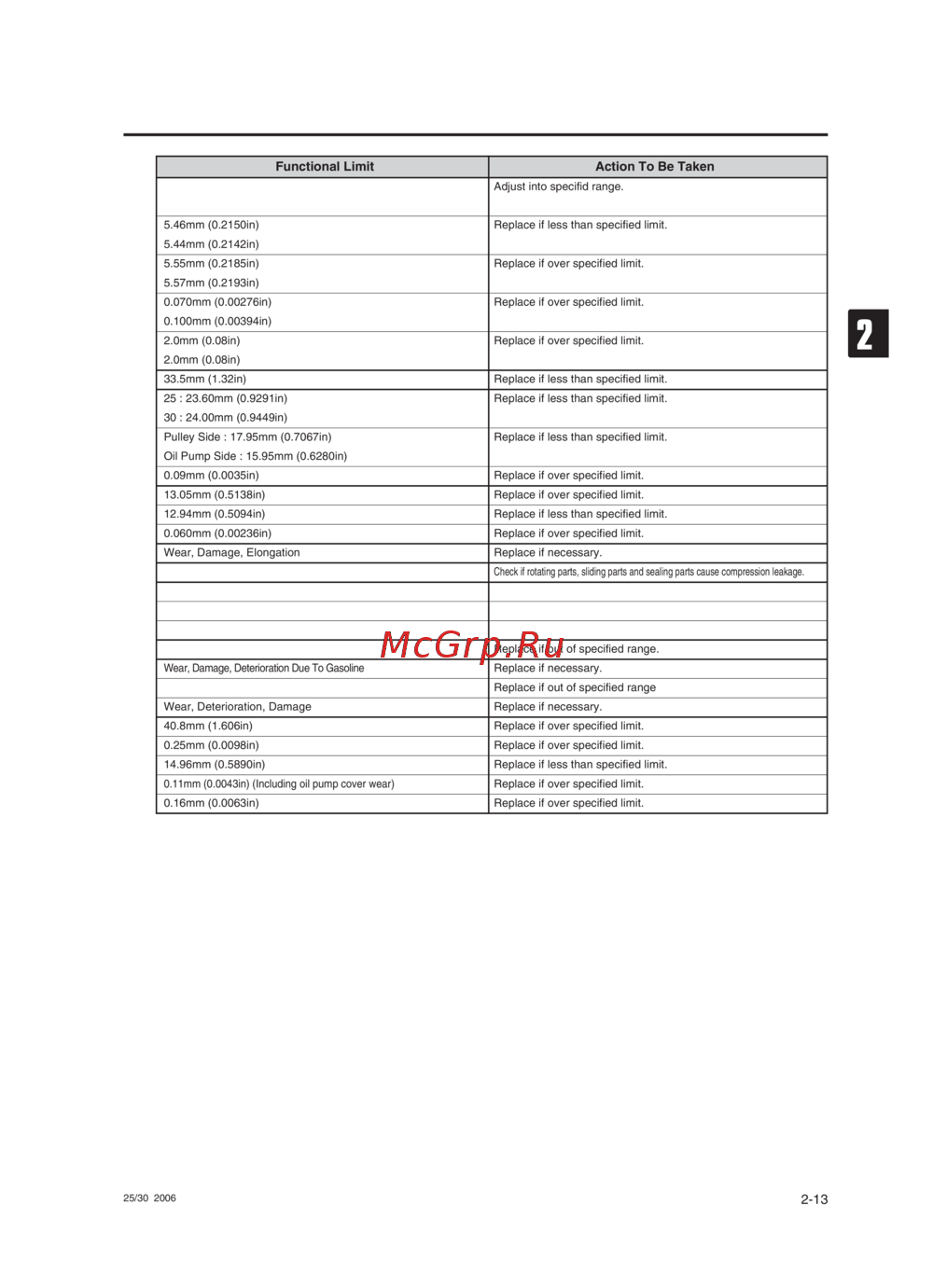

Tohatsu MFS 30 [39/319] Functional limit action to be taken
![Tohatsu MFS 30 [39/319] Functional limit action to be taken](/views2/1240939/page39/bg27.png)
2-13
2
25/30 2006
Functional Limit Action To Be Taken
Adjust into specifid range.
5.46mm (0.2150in) Replace if less than specified limit.
5.44mm (0.2142in)
5.55mm (0.2185in) Replace if over specified limit.
5.57mm (0.2193in)
0.070mm (0.00276in) Replace if over specified limit.
0.100mm (0.00394in)
2.0mm (0.08in) Replace if over specified limit.
2.0mm (0.08in)
33.5mm (1.32in) Replace if less than specified limit.
25 : 23.60mm (0.9291in) Replace if less than specified limit.
30 : 24.00mm (0.9449in)
Pulley Side : 17.95mm (0.7067in) Replace if less than specified limit.
Oil Pump Side : 15.95mm (0.6280in)
0.09mm (0.0035in) Replace if over specified limit.
13.05mm (0.5138in) Replace if over specified limit.
12.94mm (0.5094in) Replace if less than specified limit.
0.060mm (0.00236in) Replace if over specified limit.
Wear, Damage, Elongation Replace if necessary.
Check if rotating parts, sliding parts and sealing parts cause compression leakage.
Replace if out of specified range.
Wear, Damage, Deterioration Due To Gasoline
Replace if necessary.
Replace if out of specified range
Wear, Deterioration, Damage Replace if necessary.
40.8mm (1.606in) Replace if over specified limit.
0.25mm (0.0098in) Replace if over specified limit.
14.96mm (0.5890in) Replace if less than specified limit.
0.11mm (0.0043in) (Including oil pump cover wear)
Replace if over specified limit.
0.16mm (0.0063in) Replace if over specified limit.
