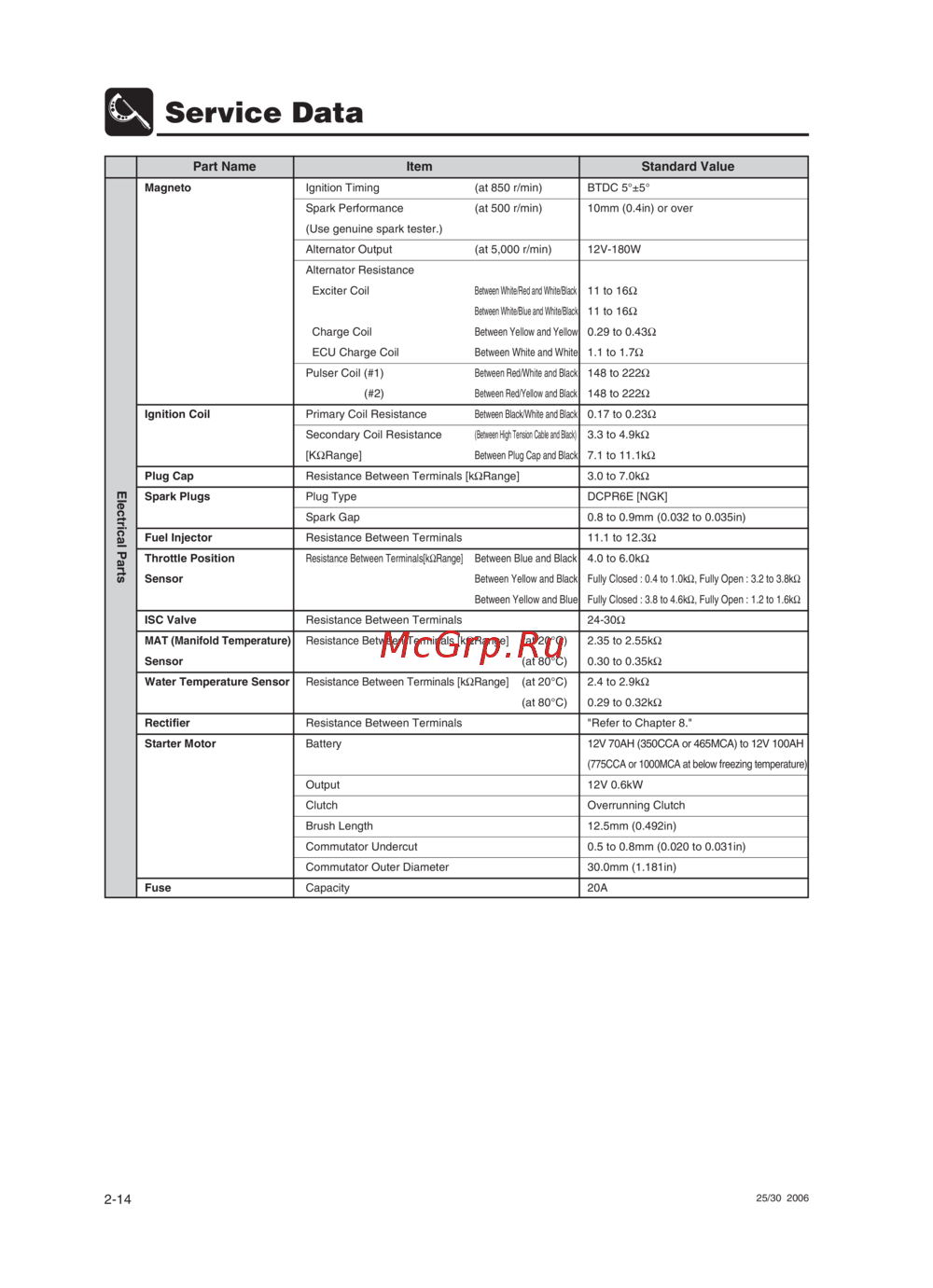

2-14
Service Data
25/30 2006
Electrical Parts
Part Name Item Standard Value
Magneto Ignition Timing (at 850 r/min) BTDC 5°±5°
Spark Performance (at 500 r/min) 10mm (0.4in) or over
(Use genuine spark tester.)
Alternator Output (at 5,000 r/min) 12V-180W
Alternator Resistance
Exciter Coil
Between White/Red and White/Black
11 to 16Ω
Between White/Blue and White/Black
11 to 16Ω
Charge Coil
Between Yellow and Yellow
0.29 to 0.43Ω
ECU Charge Coil
Between White and White
1.1 to 1.7Ω
Pulser Coil (#1)
Between Red/White and Black
148 to 222Ω
(#2)
Between Red/Yellow and Black
148 to 222Ω
Ignition Coil Primary Coil Resistance
Between Black/White and Black
0.17 to 0.23Ω
Secondary Coil Resistance
(Between High Tension Cable and Black)
3.3 to 4.9kΩ
[KΩRange]
Between Plug Cap and Black
7.1 to 11.1kΩ
Plug Cap Resistance Between Terminals [kΩRange] 3.0 to 7.0kΩ
Spark Plugs Plug Type DCPR6E [NGK]
Spark Gap 0.8 to 0.9mm (0.032 to 0.035in)
Fuel Injector Resistance Between Terminals 11.1 to 12.3Ω
Throttle Position
Resistance Between Terminals[kΩRange]
Between Blue and Black
4.0 to 6.0kΩ
Sensor
Between Yellow and Black
Fully Closed : 0.4 to 1.0kΩ, Fully Open : 3.2 to 3.8kΩ
Between Yellow and Blue Fully Closed : 3.8 to 4.6kΩ, Fully Open : 1.2 to 1.6kΩ
ISC Valve Resistance Between Terminals 24-30Ω
MAT (Manifold Temperature) Resistance Between Terminals [kΩRange]
(at 20°C) 2.35 to 2.55kΩ
Sensor (at 80°C) 0.30 to 0.35kΩ
Water Temperature Sensor
Resistance Between Terminals [kΩRange]
(at 20°C) 2.4 to 2.9kΩ
(at 80°C) 0.29 to 0.32kΩ
Rectifier Resistance Between Terminals "Refer to Chapter 8."
Starter Motor Battery
12V 70AH (350CCA or 465MCA) to 12V 100AH
(775CCA or 1000MCA at below freezing temperature)
Output 12V 0.6kW
Clutch Overrunning Clutch
Brush Length 12.5mm (0.492in)
Commutator Undercut 0.5 to 0.8mm (0.020 to 0.031in)
Commutator Outer Diameter 30.0mm (1.181in)
Fuse Capacity 20A
