2-18
Service Data
25/30 2006

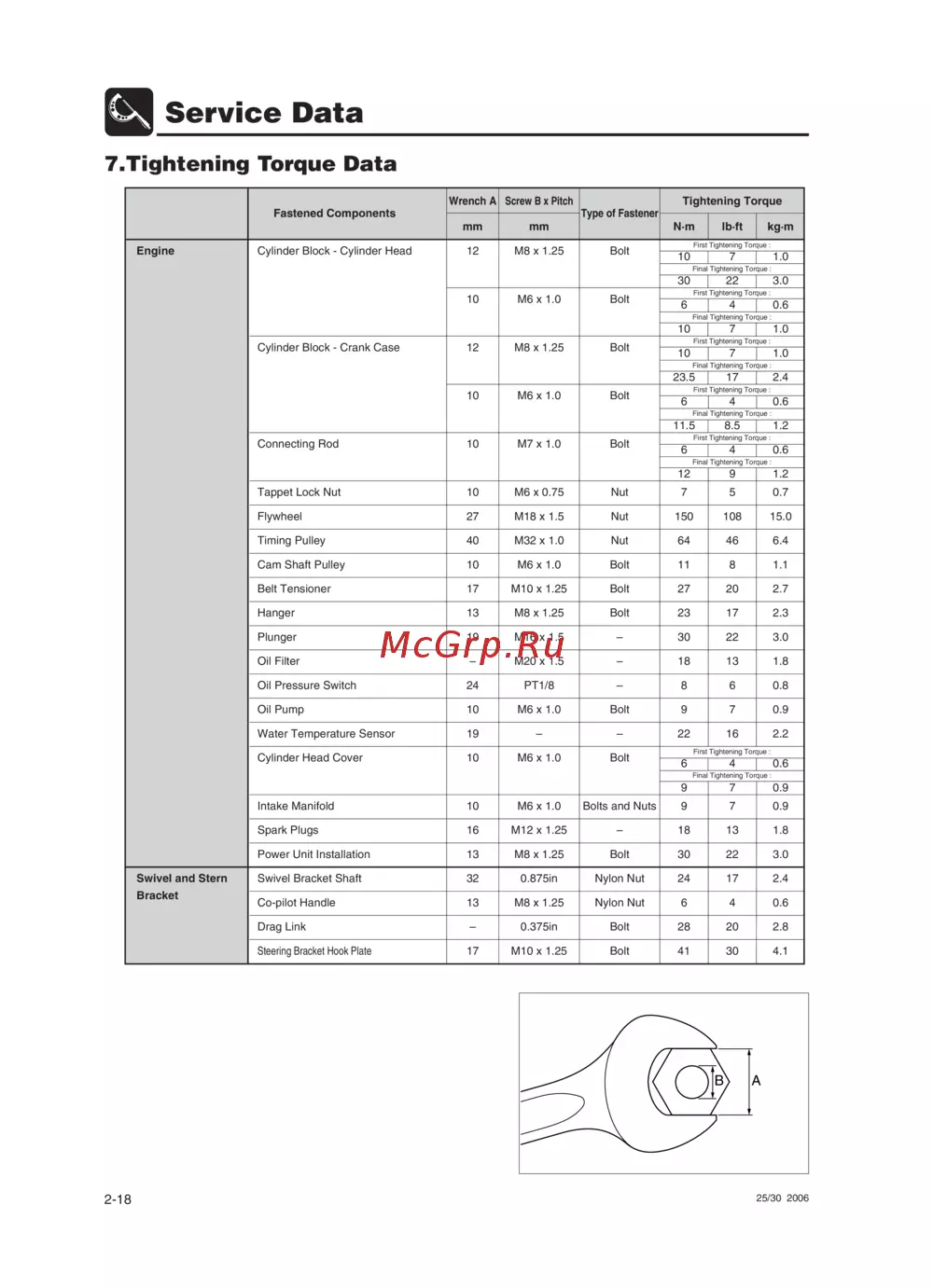

7.Tightening Torque Data
Fastened Components
Wrench A
Screw B x Pitch
Type of Fastener
Tightening Torque
mm mm N·m lb·ft kg·m
Engine Cylinder Block - Cylinder Head 12 M8 x 1.25 Bolt
10 7 1.0
30 22 3.0
10 M6 x 1.0 Bolt
640.6
10 7 1.0
Cylinder Block - Crank Case 12 M8 x 1.25 Bolt
10 7 1.0
23.5 17 2.4
10 M6 x 1.0 Bolt
640.6
11.5 8.5 1.2
Connecting Rod 10 M7 x 1.0 Bolt
640.6
12 9 1.2
Tappet Lock Nut 10 M6 x 0.75 Nut 7 5 0.7
Flywheel 27 M18 x 1.5 Nut 150 108 15.0
Timing Pulley 40 M32 x 1.0 Nut 64 46 6.4
Cam Shaft Pulley 10 M6 x 1.0 Bolt 11 8 1.1
Belt Tensioner 17 M10 x 1.25 Bolt 27 20 2.7
Hanger 13 M8 x 1.25 Bolt 23 17 2.3
Plunger 19 M16 x 1.5 – 30 22 3.0
Oil Filter – M20 x 1.5 – 18 13 1.8
Oil Pressure Switch 24 PT1/8 – 8 6 0.8
Oil Pump 10 M6 x 1.0 Bolt 9 7 0.9
Water Temperature Sensor 19 – – 22 16 2.2
Cylinder Head Cover 10 M6 x 1.0 Bolt
640.6
970.9
Intake Manifold 10 M6 x 1.0 Bolts and Nuts 9 7 0.9
Spark Plugs 16 M12 x 1.25 – 18 13 1.8
Power Unit Installation 13 M8 x 1.25 Bolt 30 22 3.0
Swivel and Stern Swivel Bracket Shaft 32 0.875in Nylon Nut 24 17 2.4
Bracket
Co-pilot Handle 13 M8 x 1.25 Nylon Nut 6 4 0.6
Drag Link – 0.375in Bolt 28 20 2.8
Steering Bracket Hook Plate
17 M10 x 1.25 Bolt 41 30 4.1
AB
First Tightening Torque :
First Tightening Torque :
Final Tightening Torque :
Final Tightening Torque :
First Tightening Torque :
Final Tightening Torque :
First Tightening Torque :
Final Tightening Torque :
First Tightening Torque :
Final Tightening Torque :
First Tightening Torque :
Final Tightening Torque :
MFS25_30_ch02.qxd 06.3.9 4:32 PM ページ 18
