![Tohatsu MFS 30 [45/319] Standard tightening](/img/pdf.png)

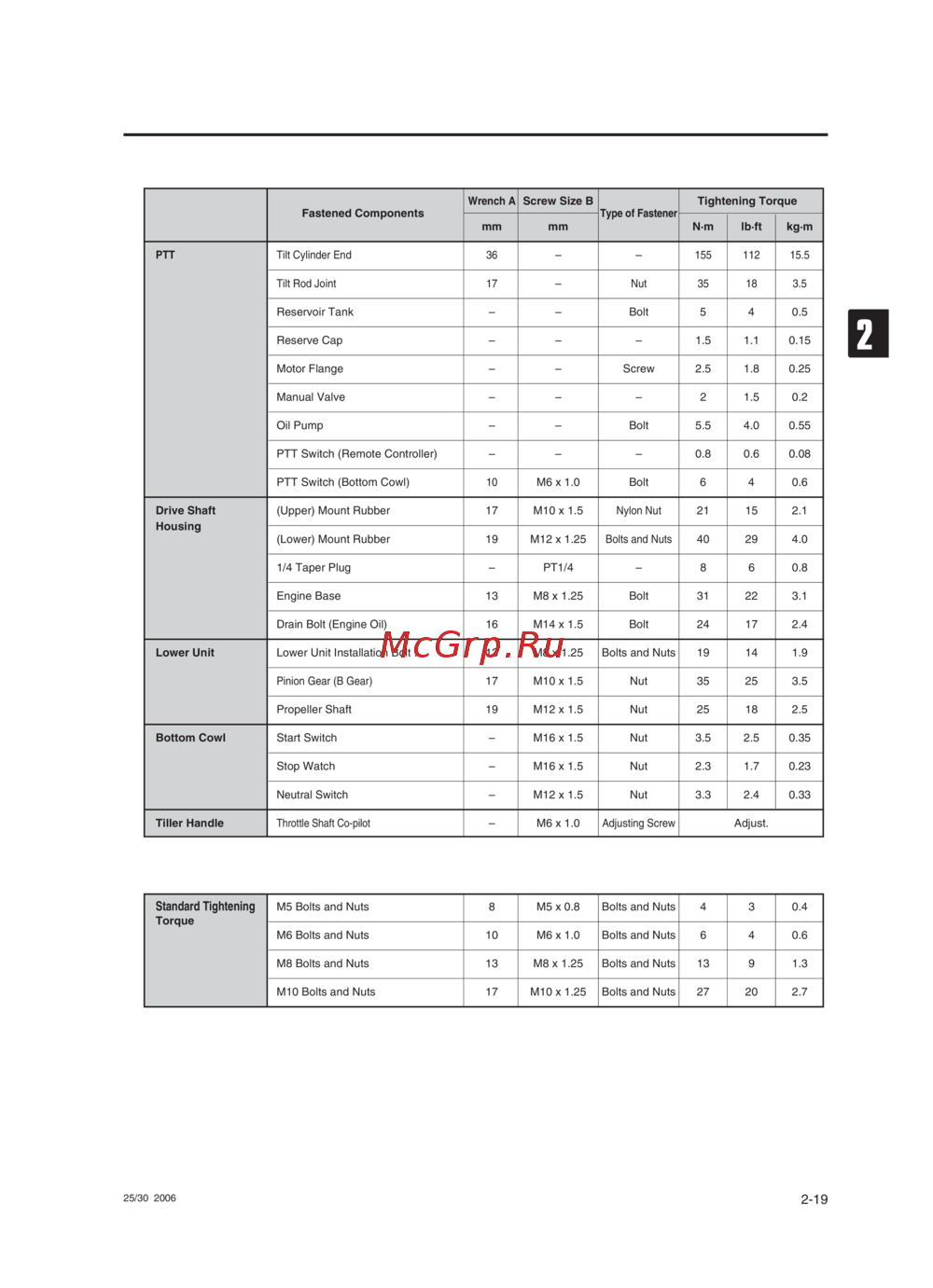

Tohatsu MFS 30 [45/319] Standard tightening
![Tohatsu MFS 30 [45/319] Standard tightening](/views2/1240939/page45/bg2d.png)
2-19
2
25/30 2006
Fastened Components
Wrench A
Screw Size B
Type of Fastener
Tightening Torque
mm mm N·m lb·ft kg·m
PTT Tilt Cylinder End 36
––
155 112 15.5
Tilt Rod Joint 17
–
Nut 35 18 3.5
Reservoir Tank – – Bolt 5 4 0.5
Reserve Cap – – – 1.5 1.1 0.15
Motor Flange – – Screw 2.5 1.8 0.25
Manual Valve – – – 2 1.5 0.2
Oil Pump – – Bolt 5.5 4.0 0.55
PTT Switch (Remote Controller) – – – 0.8 0.6 0.08
PTT Switch (Bottom Cowl)
10
M6 x 1.0 Bolt 6 4 0.6
Drive Shaft (Upper) Mount Rubber 17 M10 x 1.5
Nylon Nut
21 15 2.1
Housing
(Lower) Mount Rubber 19 M12 x 1.25
Bolts and Nuts
40 29 4.0
1/4 Taper Plug – PT1/4 – 8 6 0.8
Engine Base 13 M8 x 1.25 Bolt 31 22 3.1
Drain Bolt (Engine Oil) 16
M14 x 1.5 Bolt 24 17 2.4
Lower Unit Lower Unit Installation Bolt : 13 M8 x 1.25 Bolts and Nuts 19 14 1.9
Pinion Gear (B Gear)
17 M10 x 1.5 Nut 35 25 3.5
Propeller Shaft 19 M12 x 1.5 Nut 25 18 2.5
Bottom Cowl Start Switch – M16 x 1.5 Nut 3.5 2.5 0.35
Stop Watch – M16 x 1.5 Nut 2.3 1.7 0.23
Neutral Switch
– M12 x 1.5 Nut 3.3 2.4 0.33
Tiller Handle
Throttle Shaft Co-pilot
– M6 x 1.0
Adjusting Screw
Adjust.
Standard Tightening
M5 Bolts and Nuts 8 M5 x 0.8 Bolts and Nuts 4 3 0.4
Torque
M6 Bolts and Nuts 10 M6 x 1.0 Bolts and Nuts 6 4 0.6
M8 Bolts and Nuts 13 M8 x 1.25 Bolts and Nuts 13 9 1.3
M10 Bolts and Nuts 17 M10 x 1.25 Bolts and Nuts 27 20 2.7
MFS25_30_ch02.qxd 06.3.9 4:32 PM ページ 19
