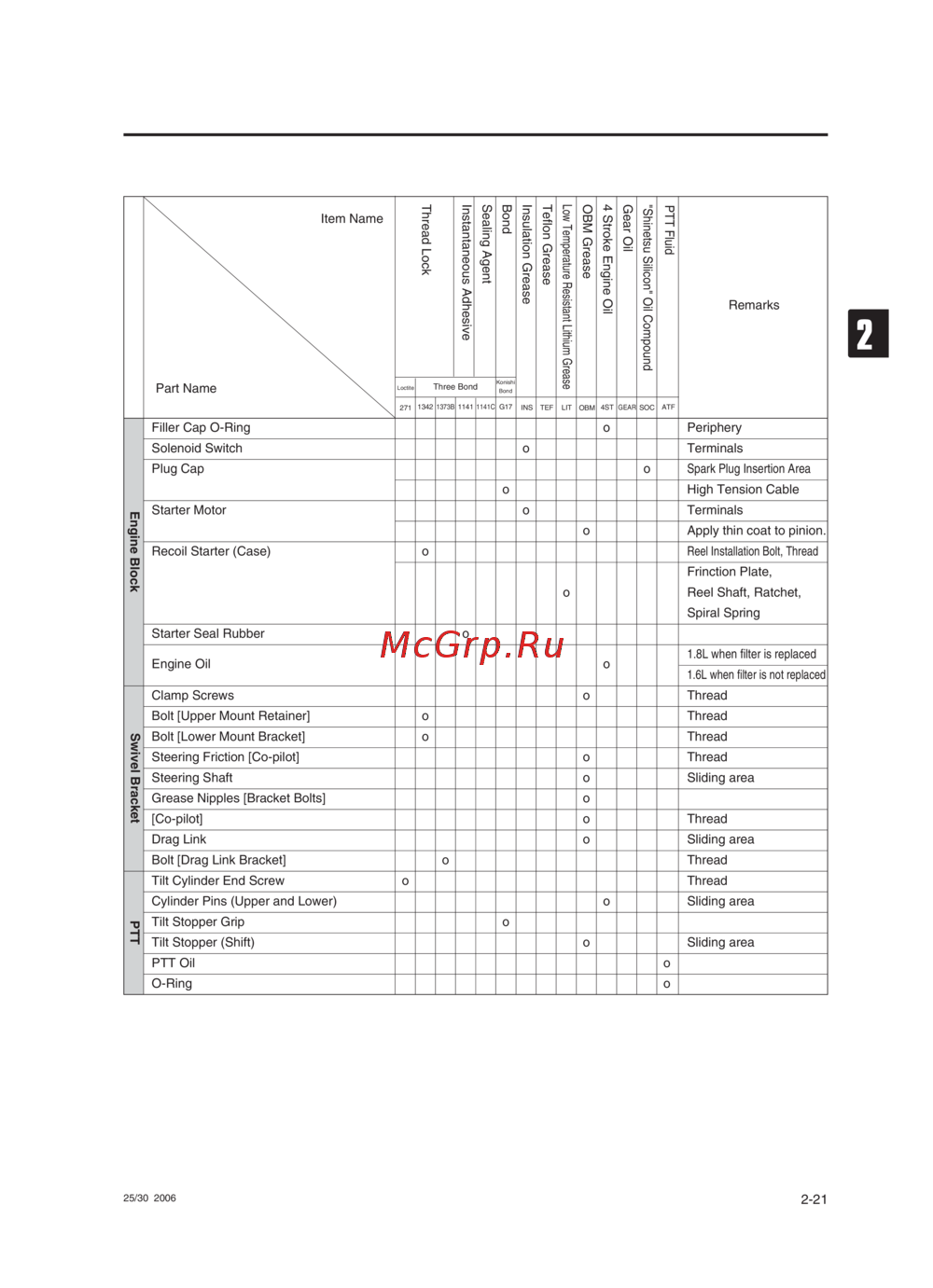

2-21
2
25/30 2006
Filler Cap O-Ring o Periphery
Solenoid Switch o Terminals
Plug Cap o
Spark Plug Insertion Area
o High Tension Cable
Starter Motor o Terminals
o Apply thin coat to pinion.
Recoil Starter (Case) o
Reel Installation Bolt, Thread
Frinction Plate,
o Reel Shaft, Ratchet,
Spiral Spring
Starter Seal Rubber o
Engine Oil o
1.8L when filter is replaced
1.6L when filter is not replaced
Clamp Screws o Thread
Bolt [Upper Mount Retainer] o Thread
Bolt [Lower Mount Bracket] o Thread
Steering Friction [Co-pilot] o Thread
Steering Shaft o Sliding area
Grease Nipples [Bracket Bolts] o
[Co-pilot] o Thread
Drag Link o Sliding area
Bolt [Drag Link Bracket] o Thread
Tilt Cylinder End Screw o Thread
Cylinder Pins (Upper and Lower) o Sliding area
Tilt Stopper Grip o
Tilt Stopper (Shift) o Sliding area
PTT Oil o
O-Ring o
Thread Lock
Instantaneous Adhesive
Bond
Insulation Grease
Teflon Grease
Low Temperature Resistant Lithium Grease
OBM Grease
4StrokeEngine Oil
Gear Oil
"Shinetsu Silicon" Oil Compound
Engine Block
Swivel Bracket
1342
Three Bond
1373B
1141
1141C
G17
Konishi
Bond
Item Name
Part Name
Remarks
PTT Fluid
Sealing Agent
271
Loctite
PTT
SOC
TEF LIT
OBM
4ST
GEAR
INS
ATF
MFS25_30_ch02.qxd 06.3.9 4:32 PM ページ 21
