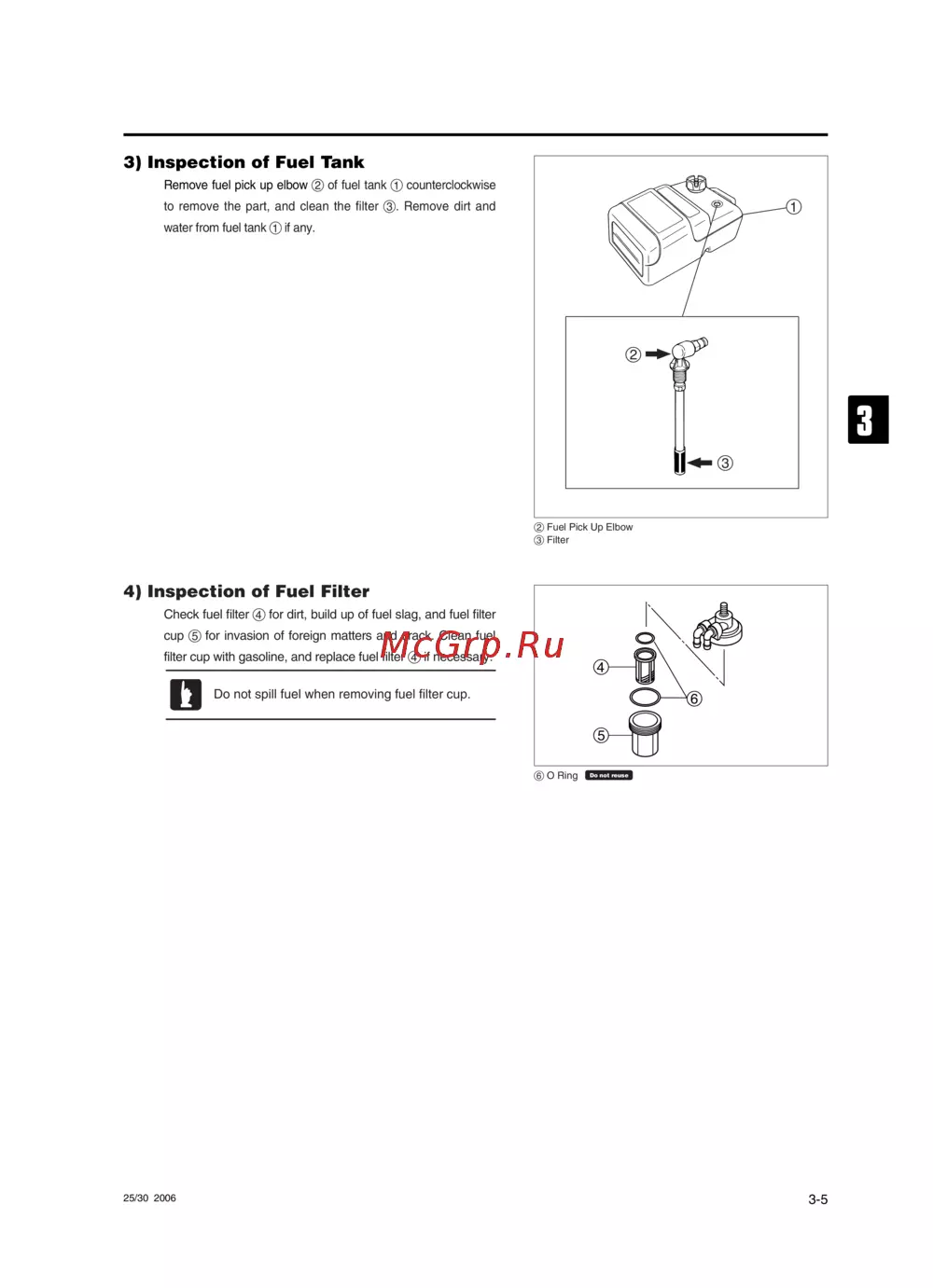

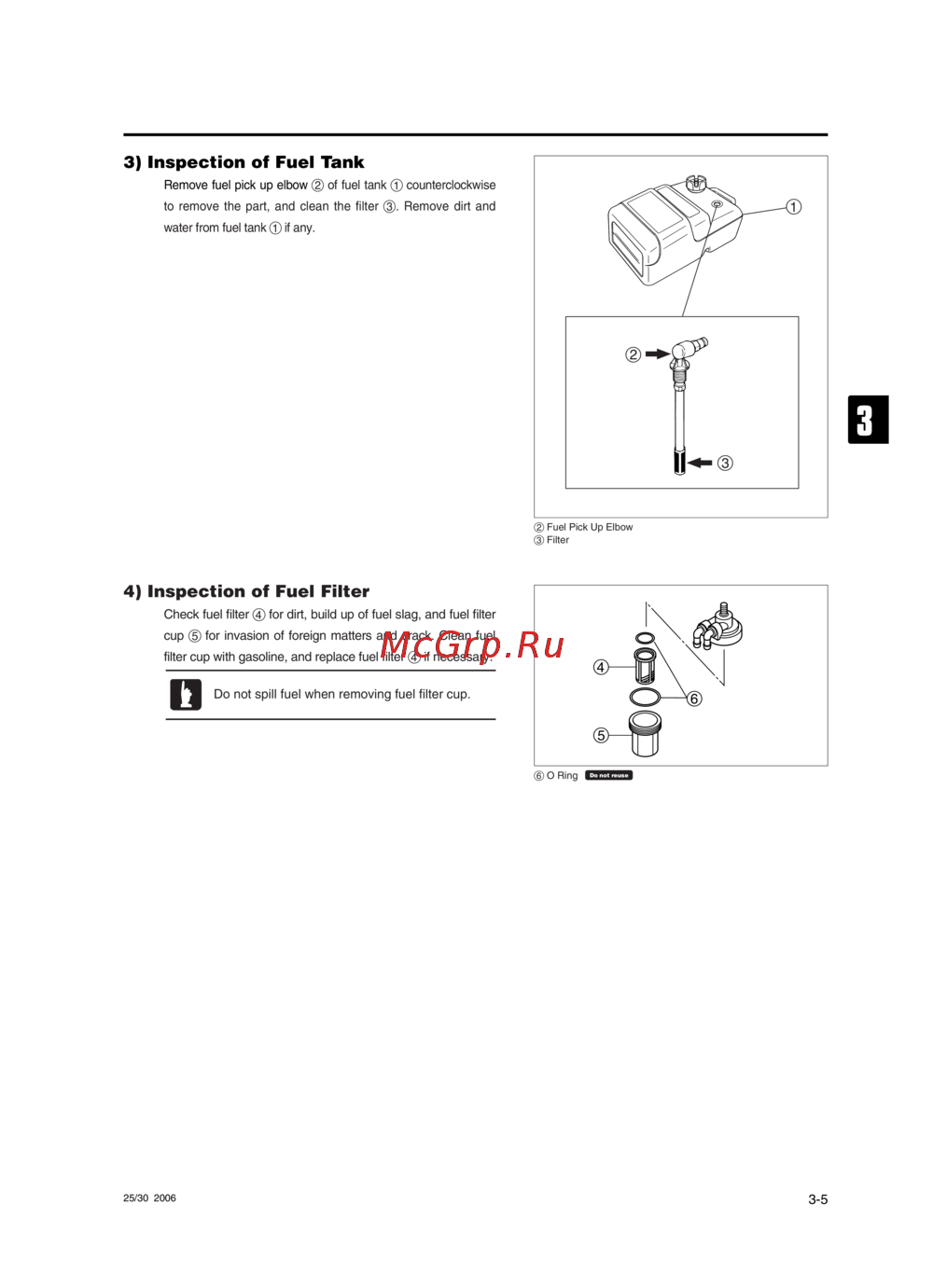

3) Inspection of Fuel Tank
Remove fuel pick up elbow 2 of fuel tank 1 counterclockwise
to remove the part, and clean the filter 3. Remove dirt and
water from fuel tank 1 if any.
1
2
3
4
6
5
4) Inspection of Fuel Filter
Check fuel filter 4 for dirt, build up of fuel slag, and fuel filter
cup 5 for invasion of foreign matters and crack. Clean fuel
filter cup with gasoline, and replace fuel filter 4 if necessary.
Do not spill fuel when removing fuel filter cup.
6 O Ring
Do not reuse
2 Fuel Pick Up Elbow
3 Filter
