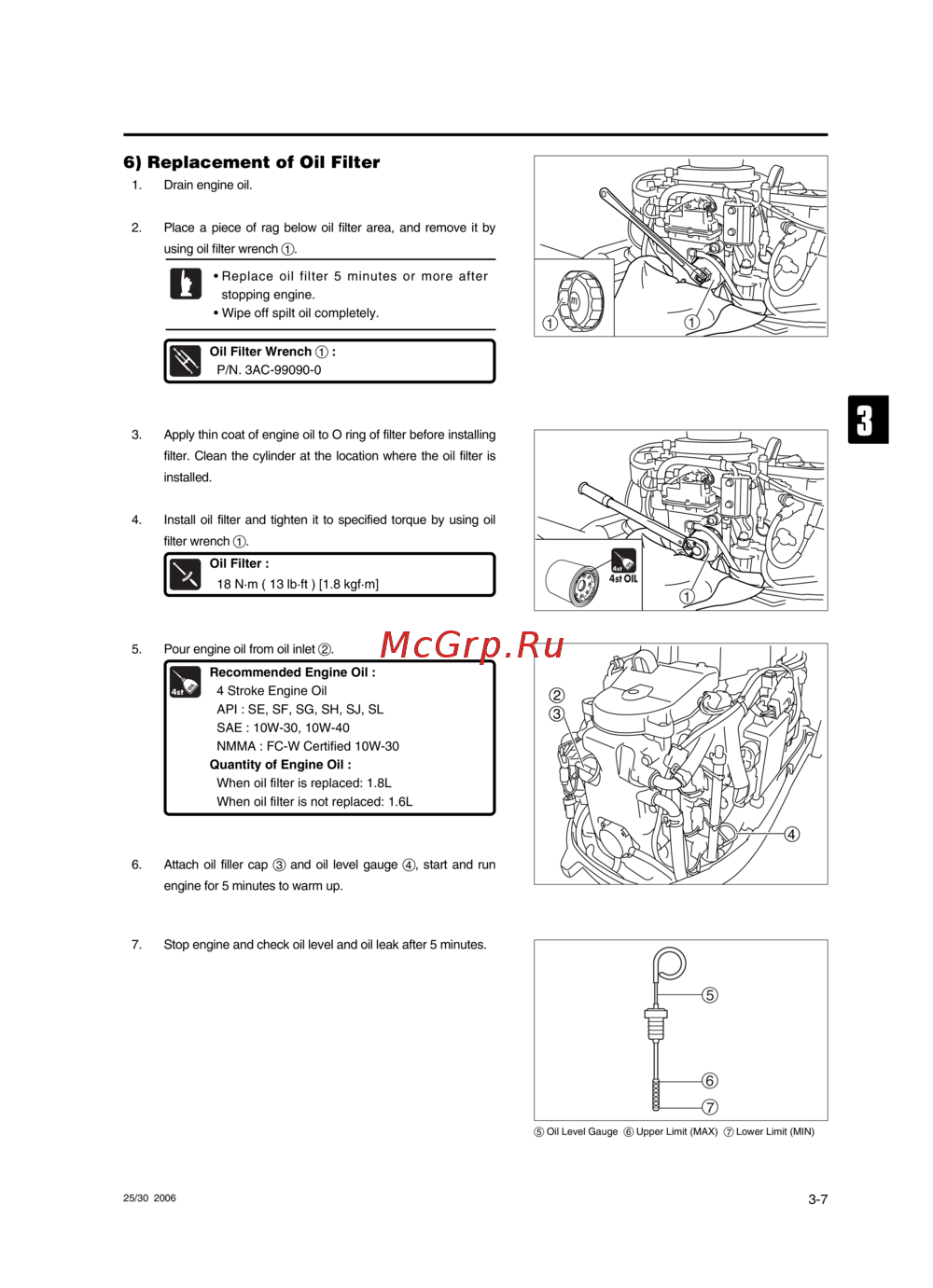

6) Replacement of Oil Filter
1. Drain engine oil.
2. Place a piece of rag below oil filter area, and remove it by
using oil filter wrench 1.
3. Apply thin coat of engine oil to O ring of filter before installing
filter. Clean the cylinder at the location where the oil filter is
installed.
4. Install oil filter and tighten it to specified torque by using oil
filter wrench 1.
5. Pour engine oil from oil inlet 2.
Oil Filter :
18 N·m ( 13 lb·ft ) [1.8 kgf·m]
Oil Filter Wrench 1 :
P/N. 3AC-99090-0
6. Attach oil filler cap 3 and oil level gauge 4, start and run
engine for 5 minutes to warm up.
1
1
1
4st OIL
4st
OIL
• Replace oil filter 5 minutes or more after
stopping engine.
• Wipe off spilt oil completely.
2
3
4
7. Stop engine and check oil level and oil leak after 5 minutes.
5
6
7
5 Oil Level Gauge 6 Upper Limit (MAX) 7 Lower Limit (MIN)
Recommended Engine Oil :
4 Stroke Engine Oil
API : SE, SF, SG, SH, SJ, SL
SAE : 10W-30, 10W-40
NMMA : FC-W Certified 10W-30
Quantity of Engine Oil :
When oil filter is replaced: 1.8L
When oil filter is not replaced: 1.6L
4st
OIL
