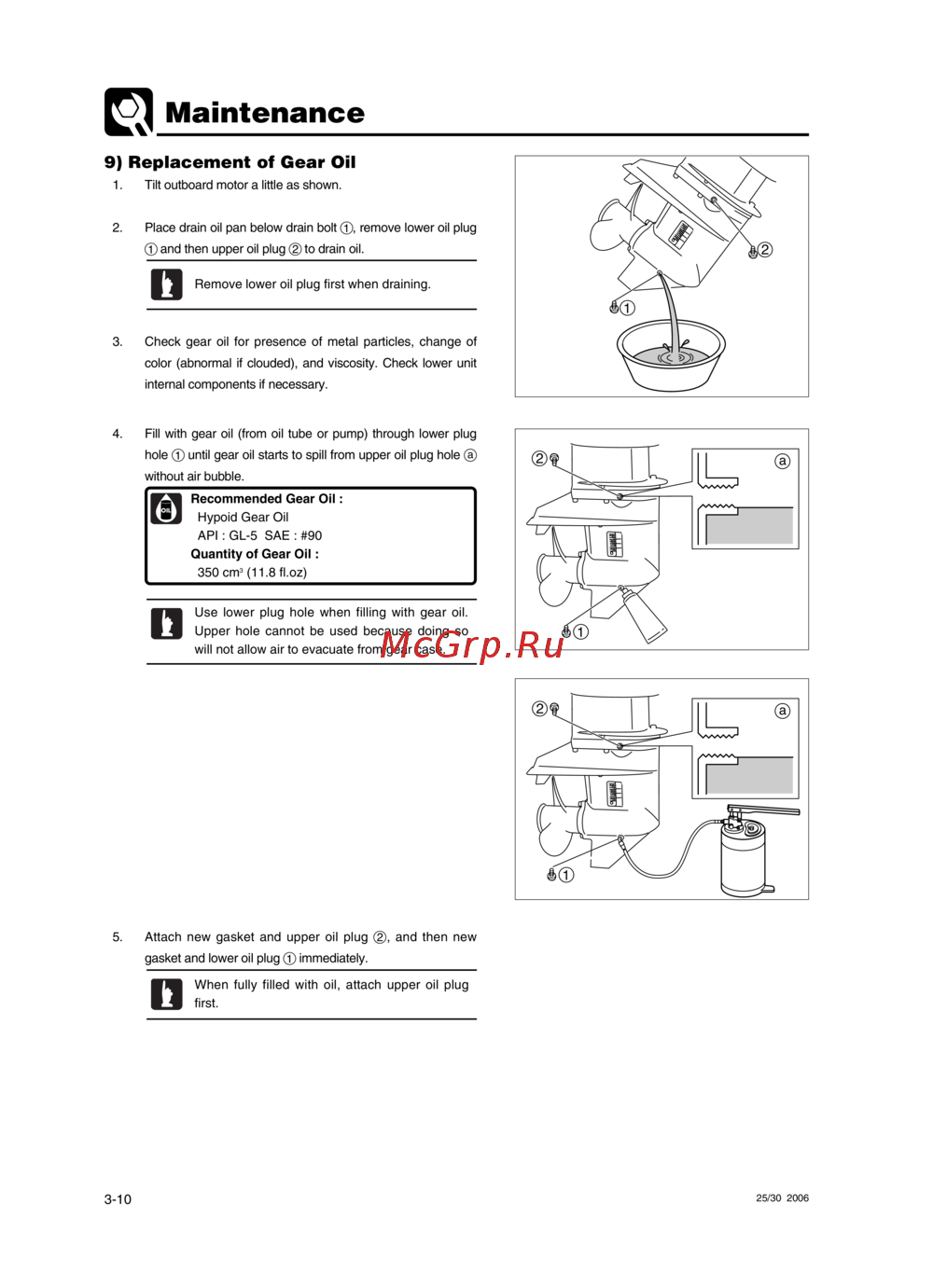

9) Replacement of Gear Oil
1. Tilt outboard motor a little as shown.
2. Place drain oil pan below drain bolt 1, remove lower oil plug
1 and then upper oil plug 2 to drain oil.
5. Attach new gasket and upper oil plug 2, and then new
gasket and lower oil plug 1 immediately.
Recommended Gear Oil :
Hypoid Gear Oil
API : GL-5 SAE : #90
Quantity of Gear Oil :
350 cm
3
(11.8 fl.oz)
OIL
2
1
2
a
1
2
a
1
3. Check gear oil for presence of metal particles, change of
color (abnormal if clouded), and viscosity. Check lower unit
internal components if necessary.
Remove lower oil plug first when draining.
Use lower plug hole when filling with gear oil.
Upper hole cannot be used because doing so
will not allow air to evacuate from gear case.
When fully filled with oil, attach upper oil plug
first.
